Product Overview

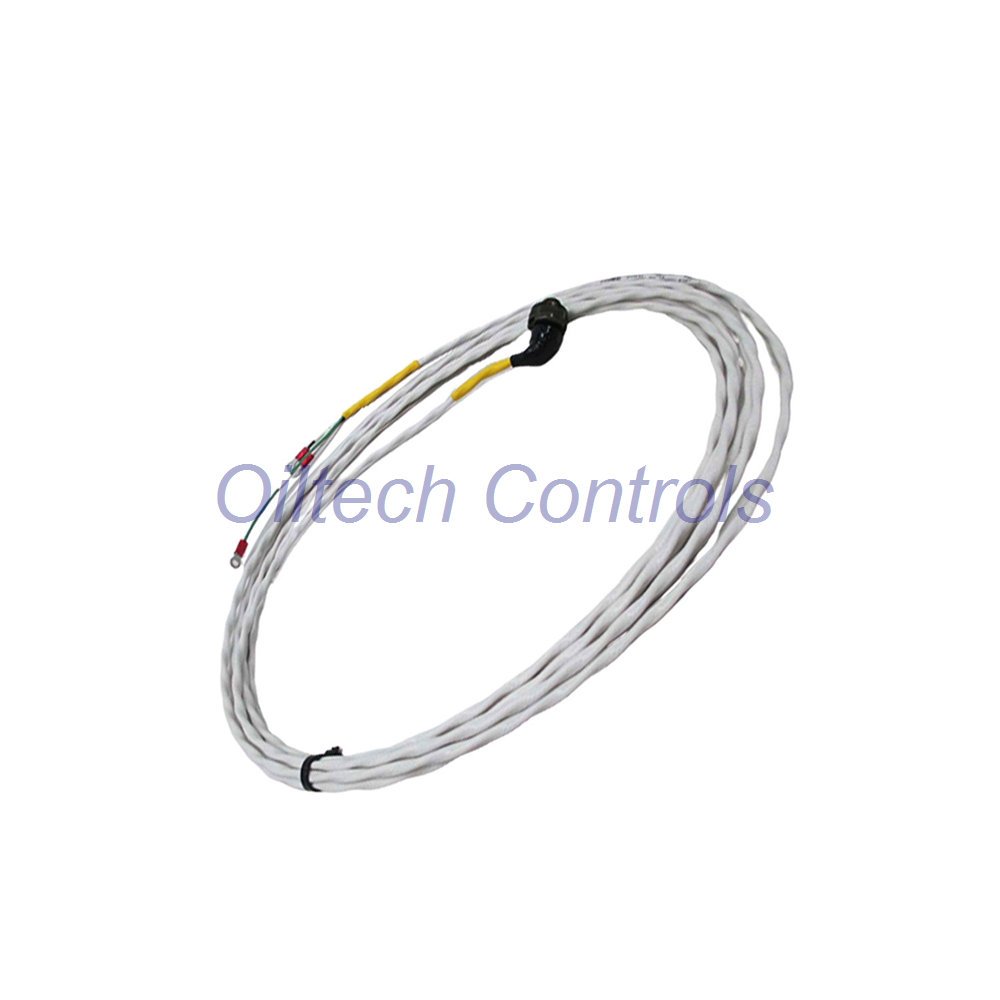

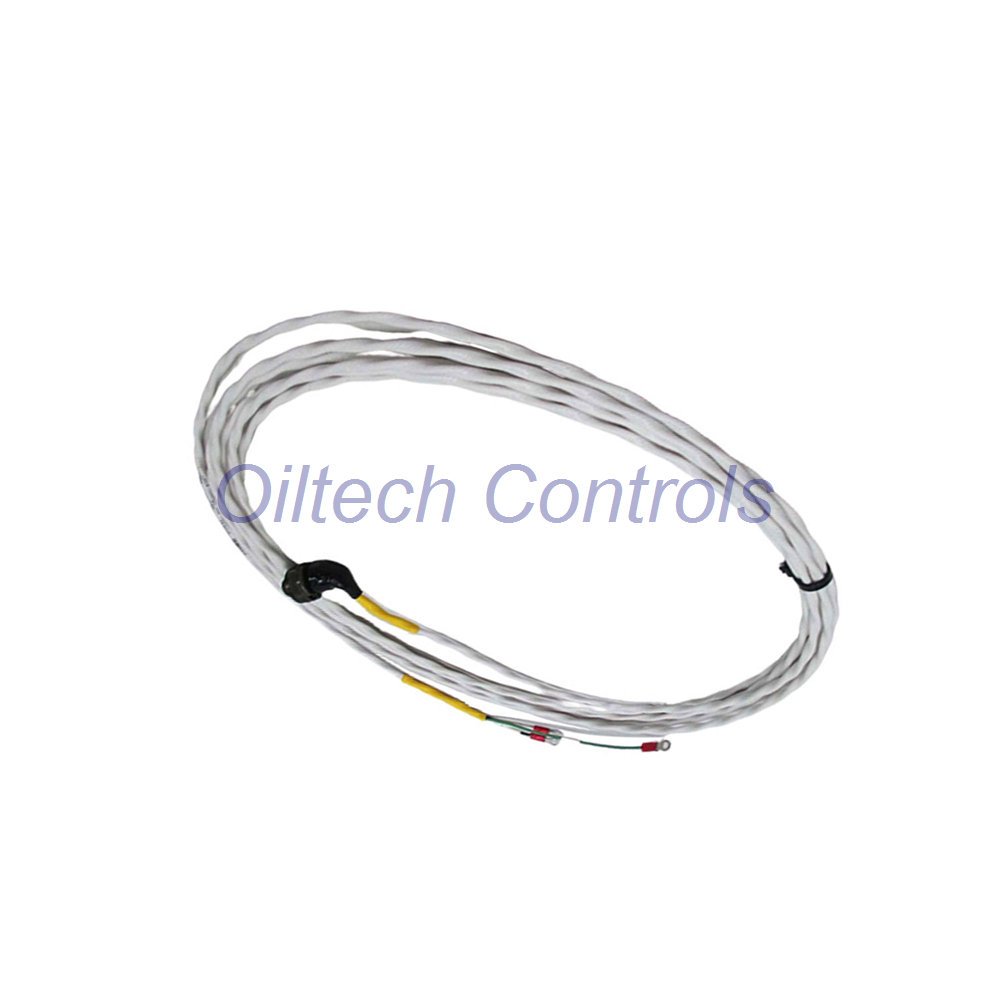

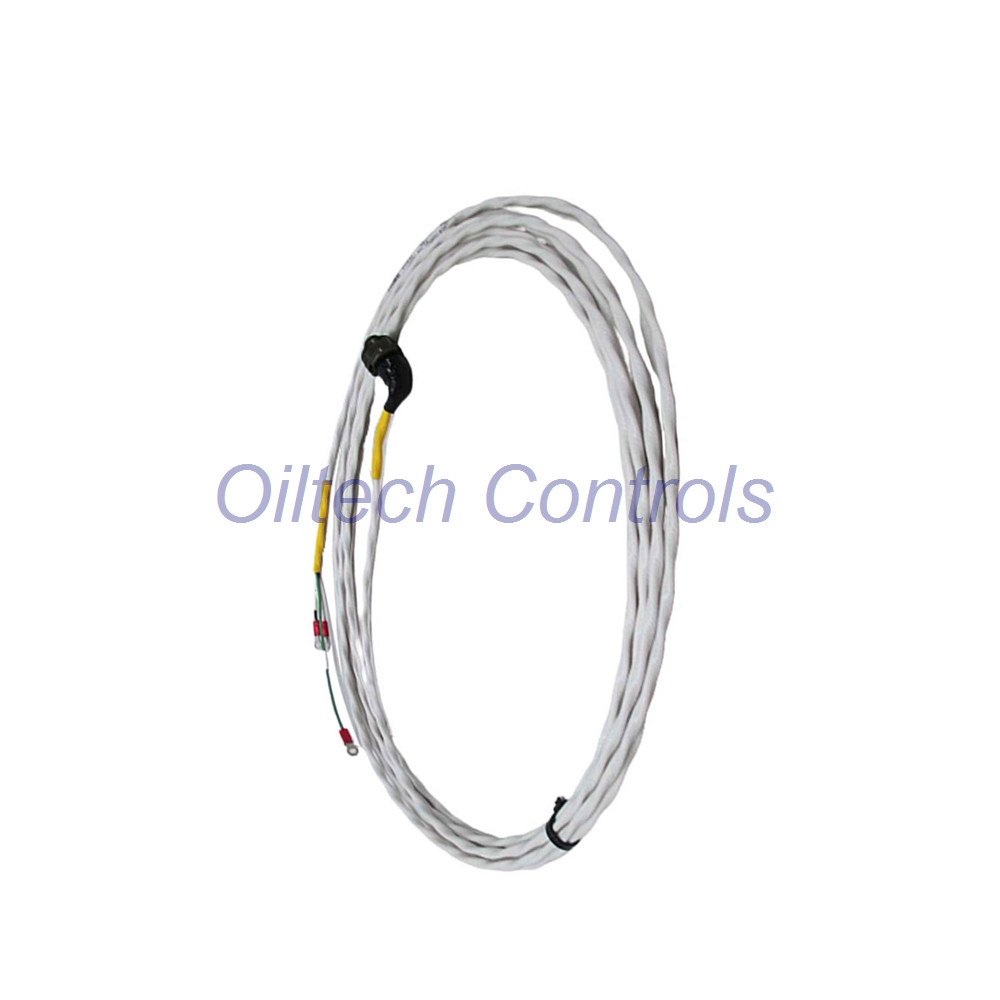

The Bently Nevada 89477-80 transmits critical vibration and proximity signals from industrial sensors to monitor systems. Engineers use this heavy-duty cable to connect transducers with remote machinery protection systems safely. It features two-conductor 18 AWG twisted wire with strong shielding to block electrical noise. One end has a space-saving right-angle two-socket plug for tight spaces. The other end offers pre-fitted terminal lugs for quick control cabinet wiring. You receive a brand-new, original product inside full factory packing. Every shipment includes our 12-month factory warranty and quick dispatch within 12 to 48 hours.
Technical Data
- Brand: Bently Nevada
- Model: 89477 Interconnect Cable
- Part Number: 89477-80
- Cable Length: 80 Feet (24.4 Meters)
- Wire Gauge: 18 AWG, 2-Conductor Twisted Shielded
- Connector Type A: Right-Angle Two-Socket Plug
- Connector Type B: Forked Terminal Lugs
- Frequency Response: 0 Hz to 10 kHz signal pass-through
- Sensitivity Loss: Less than 0.1% signal attenuation
- Linearity & Resolution: Preserves 100% sensor probe accuracy
- Temperature Range: -30°C to +100°C (-22°F to +212°F)
- Environmental Resistance: Oil, moisture, and chemical resistant jacket
- Interference Shielding: Continuous foil shield with 100% drain wire coverage
- Certifications: CSA, CE, ATEX compatible installation design
Ordering Code Tree
- 89477 – Base Model Interconnect Cable
- -80 – 80 Feet Length Option
- Standard Build: 18 AWG 2-Conductor Twisted Wire
- Connector: Right-Angle 2-Socket Female Connector
- Termination: Spade Terminal Lugs
- -80 – 80 Feet Length Option
Target Applications
Engineers specify the 89477-80 cable for harsh industrial plants. It connects vibration sensors directly to 3500 series monitoring racks.
- Gas and steam turbine vibration monitoring
- Centrifugal compressor shaft displacement systems
- Boiler feed pump bearing temperature and proximity tracking
- Gearbox health monitoring in power plants
- Refinery motor and blower protection loops
Installation & Maintenance
Proper installation protects sensitive vibration data. Always follow these standard wiring practices:
- Maintain a minimum bend radius of 3 inches during routing.
- Keep signal cable separate from high-voltage power lines.
- Tighten right-angle plug screws to ensure IP65 sealing.
- Inspect terminal lugs annually for corrosion or loose screws.
Package List & Warranty
- 1 x Sealed Bently Nevada 89477-80 Cable
- 1 x Factory Quality Inspection Certificate
- Condition: 100% New and Original
- Warranty: 12 Months Full Factory Coverage
- Shipping Handling: Dispatched in 12 to 48 Hours
- Express Carriers: FedEx, UPS, DHL express delivery
Manager’s Insight
Signal cables seem simple, but cheap wire ruins vibration measurements. The Bently Nevada 89477-80 uses thick 18 AWG conductors. This prevents voltage drops over 80 feet. The right-angle connector saves space inside cramped sensor housings. The foil shield stops electrical noise from nearby motors. Replacing worn cables restores stable vibration readings instantly.
Selection Guide
Selecting correct cable lengths prevents signal loss and physical damage in the field:
- Measure total distance from sensor head to junction box first.
- Add 3 feet of slack for thermal expansion and maintenance loops.
- Choose standard lengths like 89477-80 to keep stock ready.
- Verify connector angle to prevent bending cable against machinery walls.
Frequently Asked Questions
Q: Can I cut the 89477-80 cable to a shorter length during setup?
A: Yes. You can shorten the lug end easily. Strip conductors and re-crimp fresh terminal lugs carefully.
Q: Is the right-angle socket connector waterproof?
A: It features splash-proof protection when correctly mated and torqued down onto sensor housings.
Q: How fast do you ship this item?
A: We process and dispatch orders in 12 to 48 hours via FedEx, UPS, or DHL.
Q: What happens if the shield grounds at both ends?
A: Double grounding creates ground loops. Connect shield drain wire only at the monitor system cabinet.
