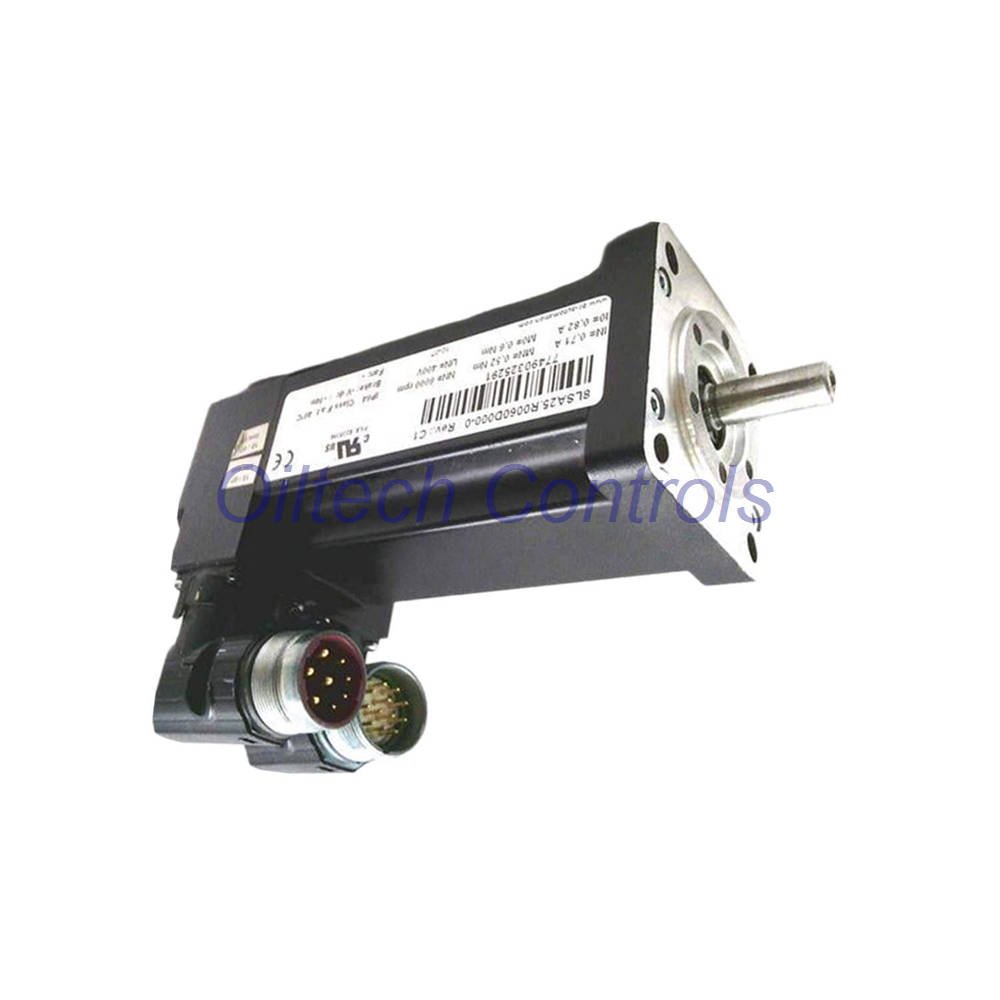

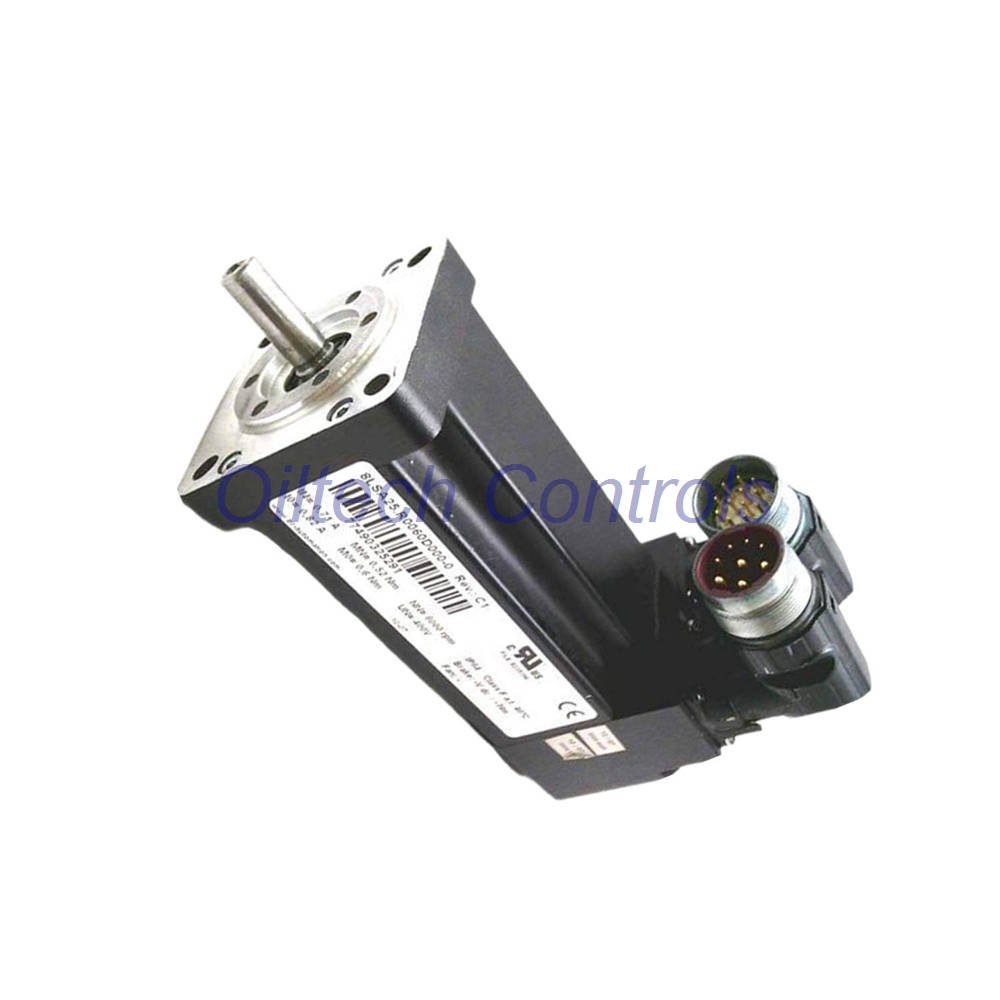

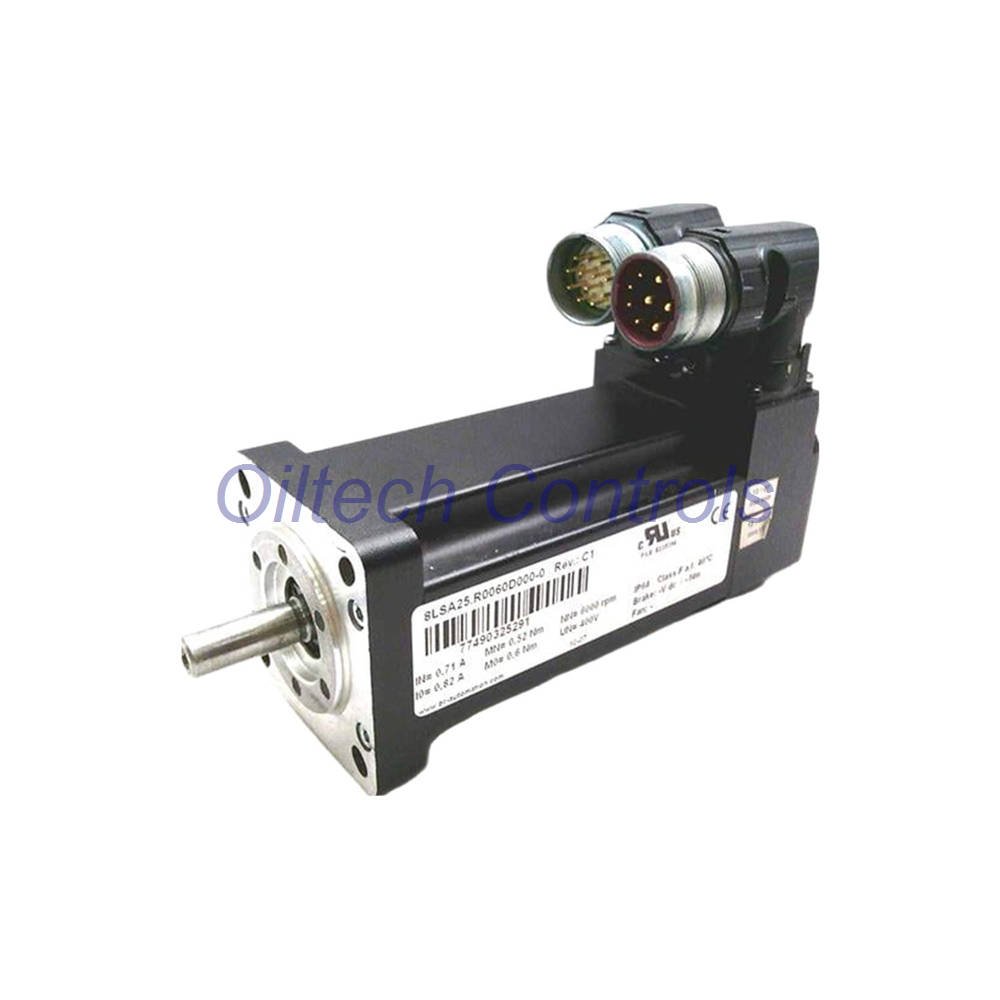

Product Introduction – 8LSA25.R0060D000-0 B&R Synchronous Servo Motor

The 8LSA25.R0060D000-0 is a compact high-speed servo motor designed for precision motion control.
It provides stable torque output and efficient energy performance in demanding automation systems.
This model belongs to the 8LS series, optimized for dynamic and space-constrained installations.

Core Technical Data

• Brand: B&R
• Model: 8LSA25.R0060D000-0
• Motor Type: Synchronous servo motor
• Nominal Speed: 6000 rpm
• Maximum Speed: 9000 rpm
• Nominal Torque: 0.52 Nm
• Stall Torque: 0.60 Nm
• Maximum Torque: 2.4 Nm
• Nominal Power: 327 W
• Efficiency: 87%
• Number of Pole Pairs: 4
• Voltage: 400 VAC

Electrical & Mechanical Characteristics

• Nominal current 0.71 A
• Maximum current 3.7 A
• Torque constant 0.73 Nm/A
• Voltage constant 43.98 V/1000 rpm
• Stator resistance 34.63 Ω
• Stator inductance 49.6 mH
• Rotor inertia 0.16 kgcm²
• Motor weight 1.3 kg
• Compact flange size 58 mm
• Shaft diameter 9 mm smooth shaft

Configuration & Design Structure

• Series Architecture
  • 8LS High-performance servo motor family
• Model Breakdown
  • 8LSA25
    • Compact motor frame
    • Optimized for high-speed applications
  • R0060
    • Rated speed configuration 6000 rpm
  • D000-0
    • Standard configuration without brake
    • No special customization
• Encoder System
  • 2-pole resolver feedback
• Connection
  • SpeedTec connector system
  • Angled swivel connection

Compatibility & System Integration

• Compatible with ACOPOS servo drives
• Supports ACOPOSmulti and ACOPOS P3 systems
• Designed for B&R automation architecture
• Optimized for closed-loop motion control

Application Scope

• Precision CNC machinery
• Packaging and labeling equipment
• Semiconductor handling systems
• Robotics and pick-and-place units
• High-speed conveyor systems

Oiltech Controls’s Insight

• The 8LSA25.R0060D000-0 offers excellent speed-to-size ratio
• Ideal for compact automation systems requiring high dynamic response
• Stable resolver feedback ensures reliable positioning accuracy
• Recommended for OEM machine builders and system integrators
• Performs well in continuous operation environments

Certifications & Compliance

• CE certified
• UKCA approved
• UL cURus recognized

Packaging & Delivery

• 1 × 8LSA25.R0060D000-0 servo motor
• Standard industrial packaging
• 12-month warranty
• Shipping via FedEx, UPS, DHL
• Dispatch within 24–48 hours

Contact Information

• Email: info@oiltechcontrols.com
• WhatsApp: +86 158 8020 0923

FAQ – Technical Selection & Field Experience

• How to select the correct servo motor size?
• Calculate torque and speed requirements based on load conditions.
• What is the advantage of resolver feedback?
• It provides robust performance in harsh industrial environments.
• When should a brake be included?
• Use a brake for vertical axis or safety holding requirements.
• What affects motor efficiency most?
• Load matching and proper drive tuning significantly impact efficiency.
• What is a common integration issue?
• Incorrect cable sizing can lead to signal instability.
