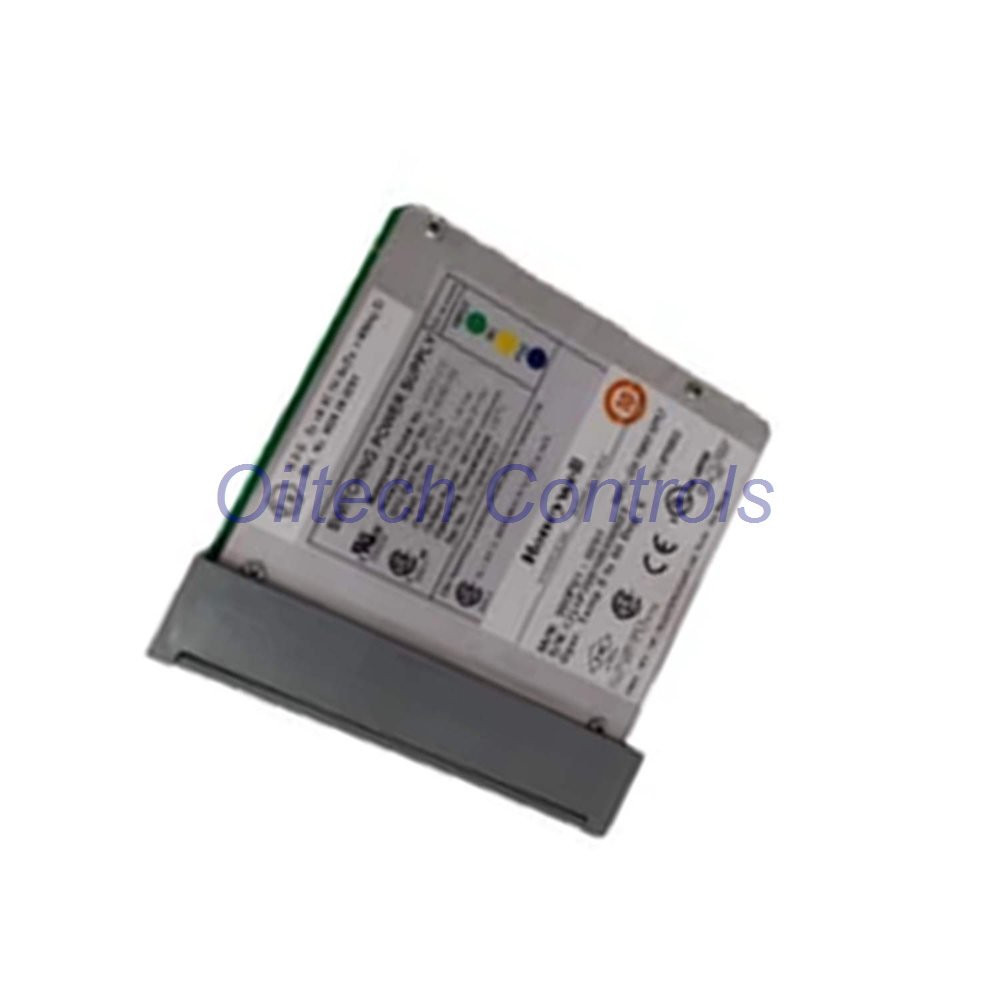

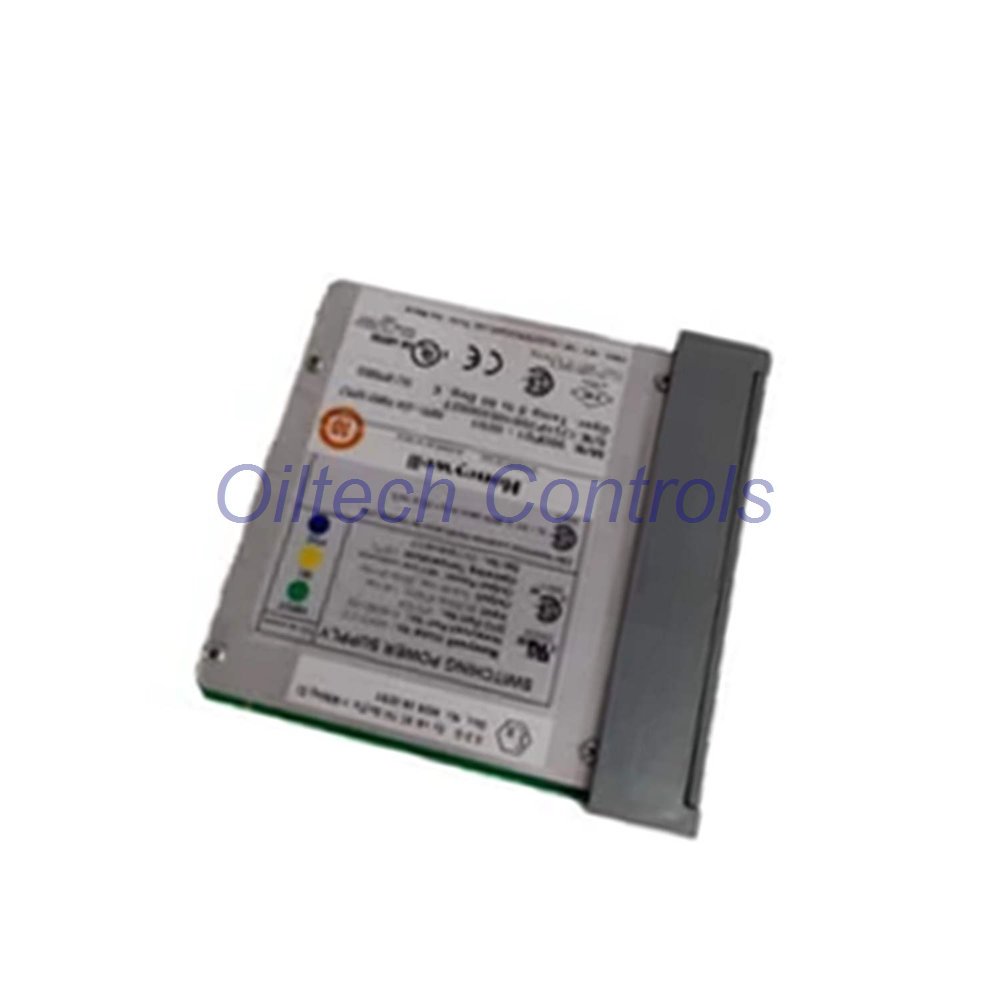

900P01-0501 Honeywell Power Supply – 120/240VAC, 58W Industrial Grade
Description
The 900P01-0501 is a Honeywell AC power supply for industrial control systems. It accepts 90 to 264 V AC input and delivers 58 W output. The unit suits 120/240 V AC mains. It holds up for 20 ms at 115 V AC, 60 Hz, max load. A non-replaceable internal fuse protects the input. Screw terminals take 0.3 mm² to 3.3 mm² (#12-22AWG) wiring. Test jacks give quick 5 V DC and 24 V DC checks. The supply runs from 0°C to 60°C in T4 ambient. This unit fits legacy Honeywell racks and obsolete control systems that need a stable DC source.
Technical Specifications
| Item | Specification |
|---|---|
| Brand | Honeywell |
| Model | 900P01-0501 |
| Module Type | AC Power Supply |
| Input Voltage | 90 to 264 V AC |
| Input Frequency | 47 to 63 Hz |
| Input Current | 1.4 A Max continuous |
| Inrush Current | 40 Amps peak-to-peak for 120 ms at 240 V AC |
| Input Rating | 130 VA |
| Output Rating | 58 W |
| Hold-up Time | 20 ms at 115 V AC, 60 Hz, max load |
| Fuse | Internal, non-replaceable |
| Wiring | Screw terminals, 0.3 mm² to 3.3 mm² (#12-22AWG) |
| Test Jacks | 5 V DC, 24 V DC |
| Ambient Temperature | T4, 0°C to 60°C |
| Measurement Range | AC input 90–264 V; output 58 W |
| Frequency Response | 47–63 Hz input range |
| Sensitivity | Stable output at 1.4 A max input current |
| Linearity | Regulated DC output across full AC input range |
| Resolution | Test jacks show 5 V DC and 24 V DC rails |
| Temperature Range | 0°C to 60°C (T4) |
| Environmental Tolerance | Rated for T4 ambient industrial cabinets |
| Interference Resistance | Internal fuse and filtered AC input design |
Installation Guide
- Mount the 900P01-0501 in a T4 cabinet. Keep 0°C to 60°C airflow.
- Wire AC input to screw terminals. Use 0.3 mm² to 3.3 mm² (#12-22AWG) cable.
- Check mains range: 90 to 264 V AC, 47 to 63 Hz.
- Verify 5 V DC and 24 V DC at the test jacks before load connection.
- Do not open the case. The fuse is internal and non-replaceable.
Commissioning and Maintenance Convenience
Front test jacks let engineers check 5 V DC and 24 V DC in seconds. Screw terminals speed up field wiring. The 20 ms hold-up time supports short mains dips. No fan and no user-serviceable fuse reduce upkeep. Replace the whole unit if the internal fuse opens.
Compatibility Notes
This supply fits Honeywell control racks that use the 900P01-0501 slot. It serves 120/240 V AC plants with 47–63 Hz mains. Confirm your backplane and load budget before swap. The 58 W output and 1.4 A input current define the limit. Contact our team for cross-check on obsolete systems.
Certification Information
The 900P01-0501 carries the Honeywell industrial design standard. It meets T4 ambient rating and 90–264 V AC input class. Ask us for the unit-specific certificate set before purchase.
Packing List and Warranty
- 1x Honeywell 900P01-0501 Power Supply
- Protective packing and anti-static bag
- 12-month warranty from Oiltech Controls
Shipping by FedEx, UPS, or DHL. Tracking goes to your inbox on dispatch.
Typical Applications
- Honeywell legacy control racks
- Obsolete DCS and PLC cabinets
- 120/240 V AC industrial panels
- Plants that need 58 W DC source with 20 ms hold-up
Diagnostic Capability
Test jacks at 5 V DC and 24 V DC give fast rail checks. The 40 A inrush spec helps you size breakers. A dead output with live AC points to the internal fuse. Then replace the unit.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment via FedEx, UPS, and DHL
- Tested industrial surplus and refurbished options
- 12-month warranty on every unit
- Technical verification before shipment
- Support for obsolete control systems
FAQ
Q: What is the output rating?
A: 58 W.
Q: Can I replace the fuse?
A: No. The fuse is internal and non-replaceable.
Q: What input range does it accept?
A: 90 to 264 V AC, 47 to 63 Hz.
Q: How long does it hold up?
A: 20 ms at 115 V AC, 60 Hz, max load.
Q: What is the warranty?
A: 12 months.
Q: How do you ship?
A: FedEx, UPS, or DHL.
