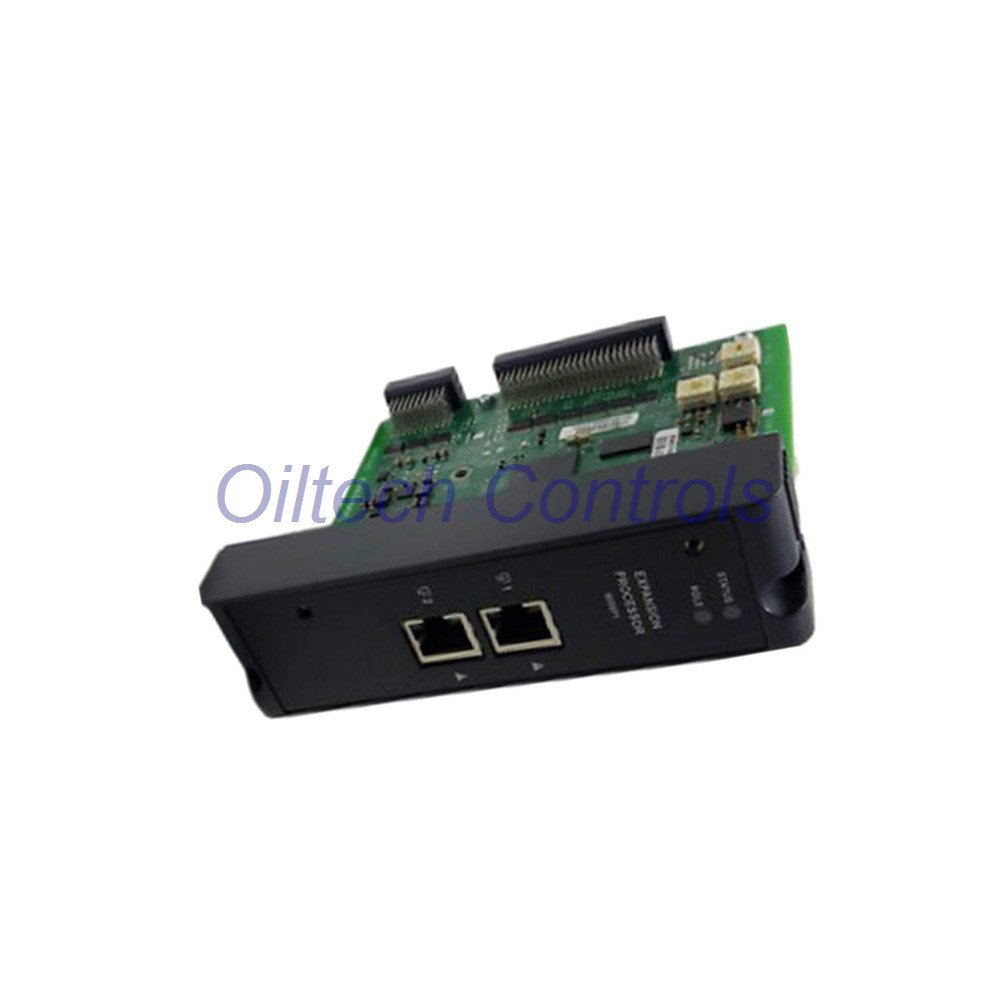

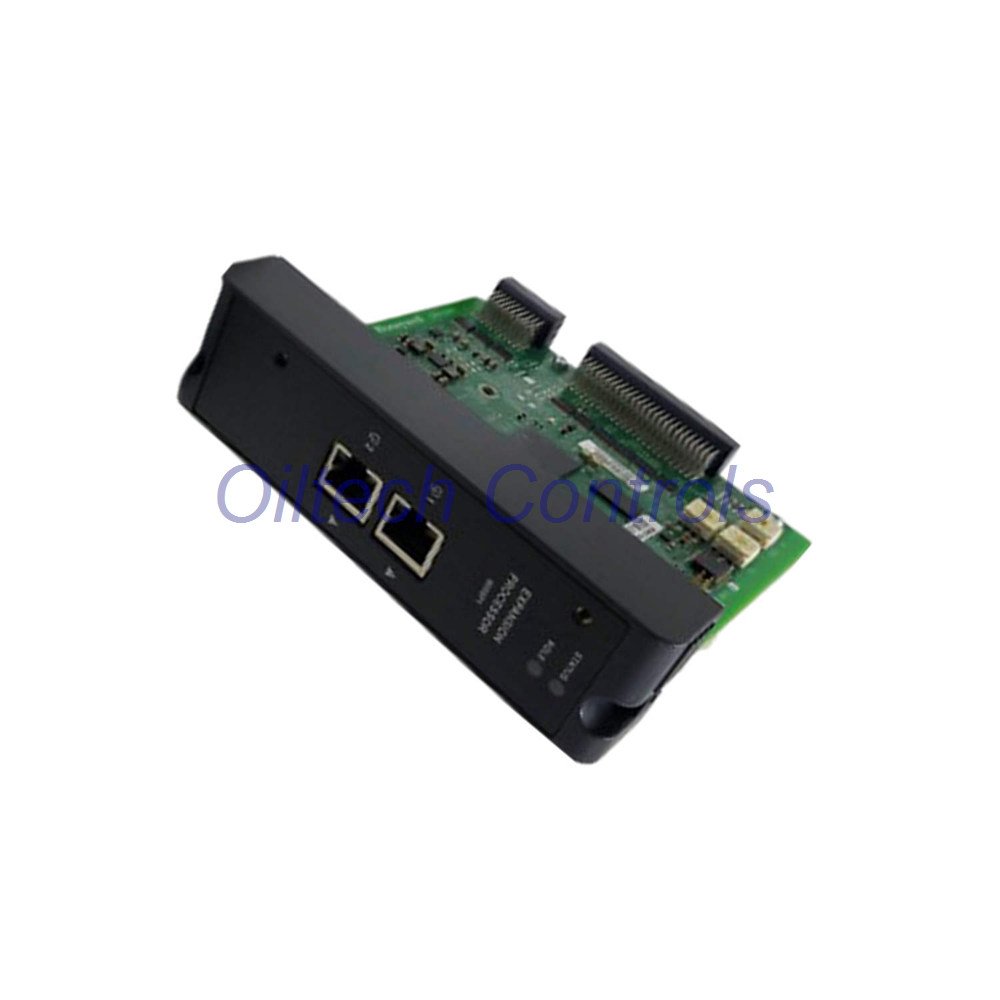

900SP1-0200 Honeywell Expansion Processor Module for Experion PKS
The 900SP1-0200 is a Honeywell Expansion Processor Module for the Experion PKS control system. It adds I/O processing capacity to a rack. A dual core ARM Cortex-A9 processor runs at 667 MHz. Two Ethernet ports handle I/O communication on ports 1 and 2. The module fits racks with address range 1 to 99, set by a rotary switch. Two tri-color LEDs show module status. This module suits plants that need reliable I/O expansion and keep legacy Honeywell systems running.
Technical Specifications
| Brand | Honeywell |
| Model | 900SP1-0200 |
| Series | Experion PKS Expansion Processor Module (EPM) |
| Processor | Dual Core ARM Cortex-A9, 32 bit, 667 MHz |
| Rack Address Range | 1 to 99, set by rotary address switch |
| Status LEDs | 2 LEDs, three color each, show EPM status |
| Ethernet Ports | 2 ports, shielded RJ45, auto-crossover |
| Port Speed | 10/100BaseTx, auto-detecting |
| Isolation | 1500 Volts RMS for 1 minute, 60 Hz |
| Transient Suppression | 600 W peak pulse power at 10×1000 us waveform, repetition rate 0.01% |
| Port Diagnostics | Diagnostic LEDs on each Ethernet port |
| Protocols | I/O Communication on EPM ports 1 and 2 |
| Measurement Range | Not applicable to this processor module |
| Frequency Response | Not applicable to this processor module |
| Sensitivity | Not applicable to this processor module |
| Linearity | Not applicable to this processor module |
| Resolution | 32 bit processor architecture |
| Temperature Range | Confirm site conditions before install |
| Environmental Tolerance | Use in a clean control cabinet with stable power |
| Interference Resistance | 1500 V RMS isolation plus 600 W transient suppression on network ports |
Key Capabilities
- Fast processing: dual core ARM Cortex-A9 at 667 MHz.
- Simple addressing: rotary switch sets rack address from 1 to 99.
- Clear status: two tri-color LEDs show EPM health at a glance.
- Dual network ports: two shielded RJ45 ports with auto-crossover.
- Rugged network link: 1500 V RMS isolation and transient suppression.
- Port-level diagnostics: LEDs on each port speed up fault finding.
Installation Guide
- Set the rotary address switch to the correct rack address, 1 to 99.
- Use shielded RJ45 cables on both Ethernet ports.
- Check port LEDs after power up to confirm link status.
- Keep the module in a clean, dry control cabinet.
- Confirm rack power is stable before you insert the module.
Commissioning and Maintenance
- Watch the two tri-color LEDs during startup for status checks.
- Use port diagnostic LEDs to trace cable or link faults.
- Log the rack address on your site drawing for future service.
- Inspect connectors and cables at each planned shutdown.
Compatibility
- Designed for Honeywell Experion PKS racks with EPM support.
- Works with rack address range 1 to 99.
- Uses standard shielded RJ45 Ethernet connections.
- Supports I/O communication on EPM ports 1 and 2.
Certification and Compliance
Certification details vary by build and site. Please contact us for the certificate package that matches your unit and project requirements.
Packing List
- 1 x Honeywell 900SP1-0200 Expansion Processor Module
- Protective packaging
- Order and test documentation where applicable
Warranty and Shipping
- 12-month warranty included.
- We ship by FedEx, UPS, and DHL.
- We test and verify units before shipment.
Typical Applications
- I/O expansion in Honeywell Experion PKS control racks.
- Legacy process control systems that need spare EPM modules.
- Continuous process plants that need stable network links.
- Plants upgrading or maintaining existing Honeywell racks.
Diagnostic Ability
- Two tri-color LEDs show EPM status.
- Diagnostic LEDs on each port help isolate link problems.
- Auto-detecting 10/100BaseTx ports simplify network setup.
- Rotary address switch makes rack identification easy to check.
Why Buy From Oiltech Controls?
- 15+ years of industrial automation spare parts experience.
- Global shipment support.
- Tested industrial surplus and refurbished options.
- 12-month warranty on this module.
- Technical verification before shipment.
- Support for obsolete control systems.
FAQ
Q: What is the 900SP1-0200?
A: It is a Honeywell Expansion Processor Module for Experion PKS racks.
Q: What processor does it use?
A: A dual core ARM Cortex-A9 at 667 MHz.
Q: How do I set the rack address?
A: Use the rotary switch and select a value from 1 to 99.
Q: How many Ethernet ports does it have?
A: Two shielded RJ45 ports with auto-crossover.
Q: What isolation does it offer?
A: 1500 Volts RMS for 1 minute at 60 Hz.
Q: Does it come with a warranty?
A: Yes, it includes a 12-month warranty.
Q: How do you ship?
A: We ship by FedEx, UPS, and DHL.
