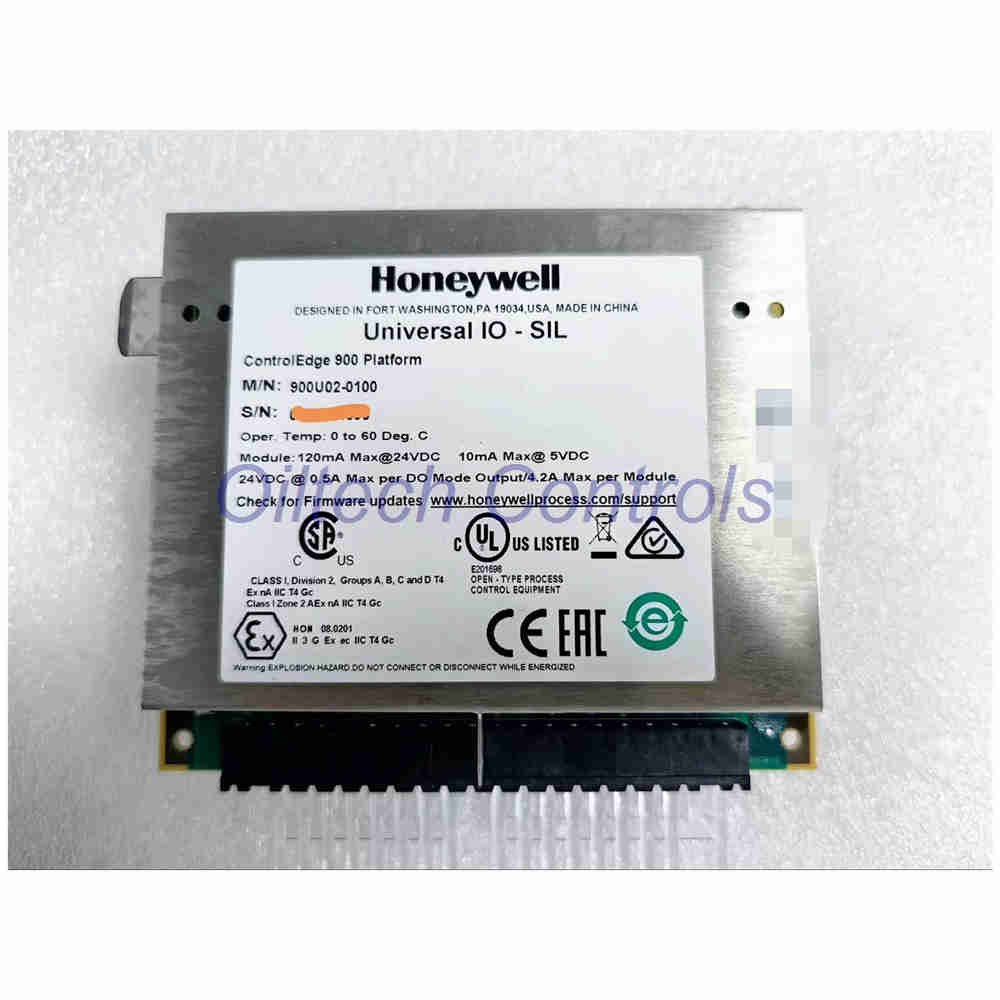

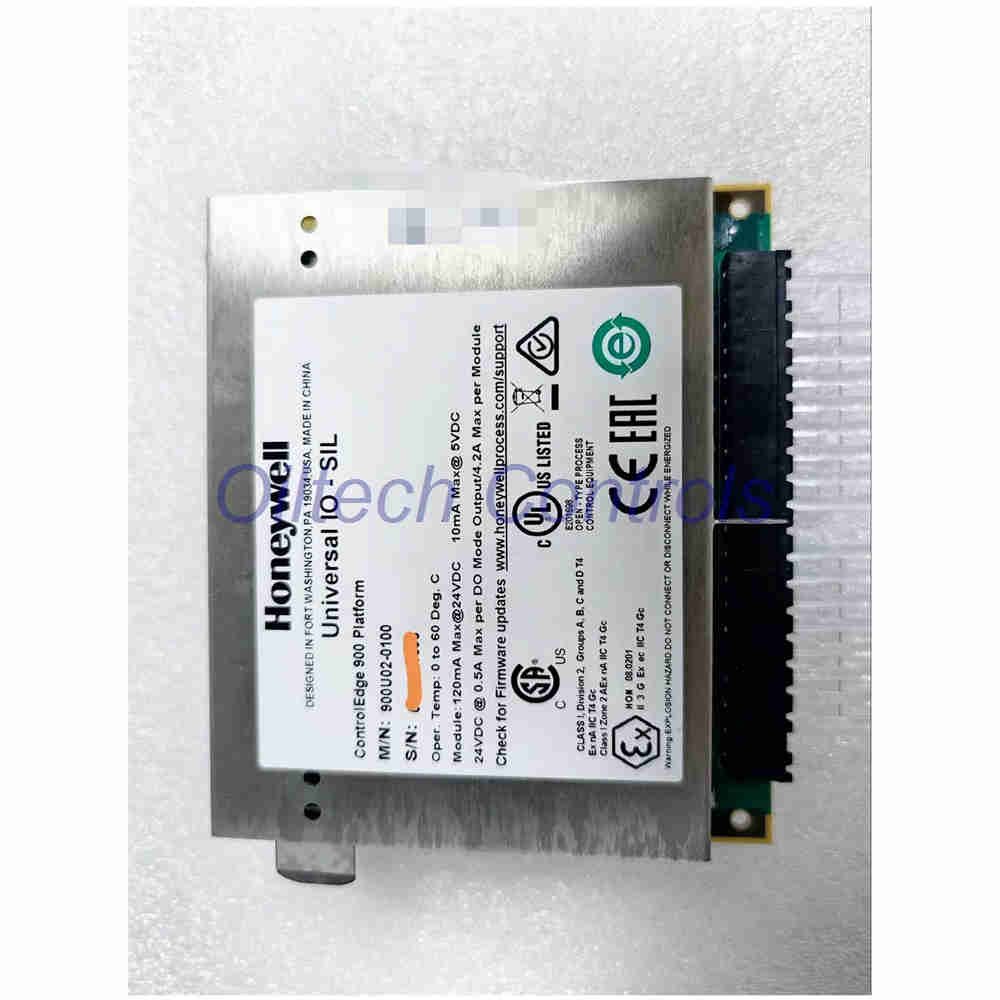

900U02-0100 Honeywell Safety Universal I/O Module 16-Channel

900U02-0100 Honeywell Safety Universal Input/Output Module

The 900U02-0100 serves as a versatile interface for Honeywell safety systems, offering a highly flexible Universal Input/Output (UIO) architecture. This module supports up to 16 non-redundant channels or 14 redundant channels, significantly reducing the spare parts footprint by allowing per-channel software configuration. Engineered for high-availability environments, the 900U02-0100 integrates HART communication and comprehensive electronic short-circuit protection. Oiltech Controls provides this specialized safety component for critical infrastructure where 10ms update rates and 1.5kV isolation are mandatory requirements.

Core Power & Isolation Framework

• Field Supply Voltage: 24V DC nominal (Operating range: 22V DC to 27V DC)
• Current Consumption: Maximum 4.2 Amps per module / 500 mA per individual channel
• System Isolation: 1.5 kVDC Module-to-Rack (Logic Side) and Module-to-Module
• Short Circuit Defense: Resettable ESCP at 620 mA plus non-replaceable 1A internal fuses
• Global Protection: Main field supply guarded by a 10 Amp electronic fuse
• Signal Refresh: High-speed 10ms update rate for real-time safety response

Analog Input (AI) Technical Specs

• Input Architecture: Supports 2, 3, or 4-wire current devices with Sink-type transmitter support
• Signal Range: 4-20 mA (Hardware cut-off limits defined at 3-22 mA)
• Digital Resolution: 16-Bit A/D Converter for high-precision measurement
• Input Impedance: 250 Ω nominal with 0 – 30V damage protection
• Precision Standards: 0.1% full-scale accuracy at 23.5°C; 0.17% across 0 to +60°C
• Communication: Fully integrated HART protocol support across line-monitored channels

Analog Output (AO) Technical Specs

• Output Configuration: Maximum 8 channels per module (Assignable to channels 9 through 16)
• Current Loop: 4-20 mA with directly settable range from 2.4 mA to 21 mA
• Load Compatibility: Resistive load range between 250 Ohms and 750 Ohms
• Output Fidelity: 12-Bit resolution with ± 0.1% nominal current linearity
• Readback Accuracy: 0.17% of full scale for closed-loop verification
• Capacitance Limit: Supports load capacitance up to < 1 uF

Oiltech Controls’ Insight & System Compatibility

• Device Utility: The 900U02-0100 is specifically designed for Honeywell ControlEdge HC900 and Safety Manager systems.
• Redundancy Efficiency: Transitioning from 16 to 14 channels in redundant mode ensures hardware-level voting for SIL-rated loops.
• Field Conditioning: Integrated current limiting at 24 mA prevents field device surges from impacting the backplane.
• Diagnostic Ability: Software-based line monitoring detects open circuits or shorted loops instantly.
• Logistics Advantage: Ships globally via FedEx, UPS, and DHL with 24-28 hour order processing.
• Direct Assistance: Contact our engineering team at info@oiltechcontrols.com or via WhatsApp: +86 158 8020 0923.

Professional FAQ & Procurement Guide

• Can the 900U02-0100 handle mixed AI and AO signals on the same module?
• Yes, channels are software-definable, though AO is typically assigned to the upper channel bank (9-16).
• What happens if a field wire shorts to ground?
• The resettable ESCP trips at 620 mA to protect the module, while the 1A fuse acts as secondary protection.
• How does the redundancy affect the accuracy specifications?
• Accuracy tolerances roughly double in redundant configurations (e.g., 0.1% becomes 0.2%) due to the parallel circuit load.
• Selection Tip: When should I replace the entire module instead of just the fuse?
• The 1A channel fuses are non-replaceable; if a major surge blows the internal fuse, the module requires factory service.
• Buying Guide: Does this module include the terminal block?
• Usually, terminal blocks are sold separately; verify your rack model before purchasing from Oiltech Controls.
