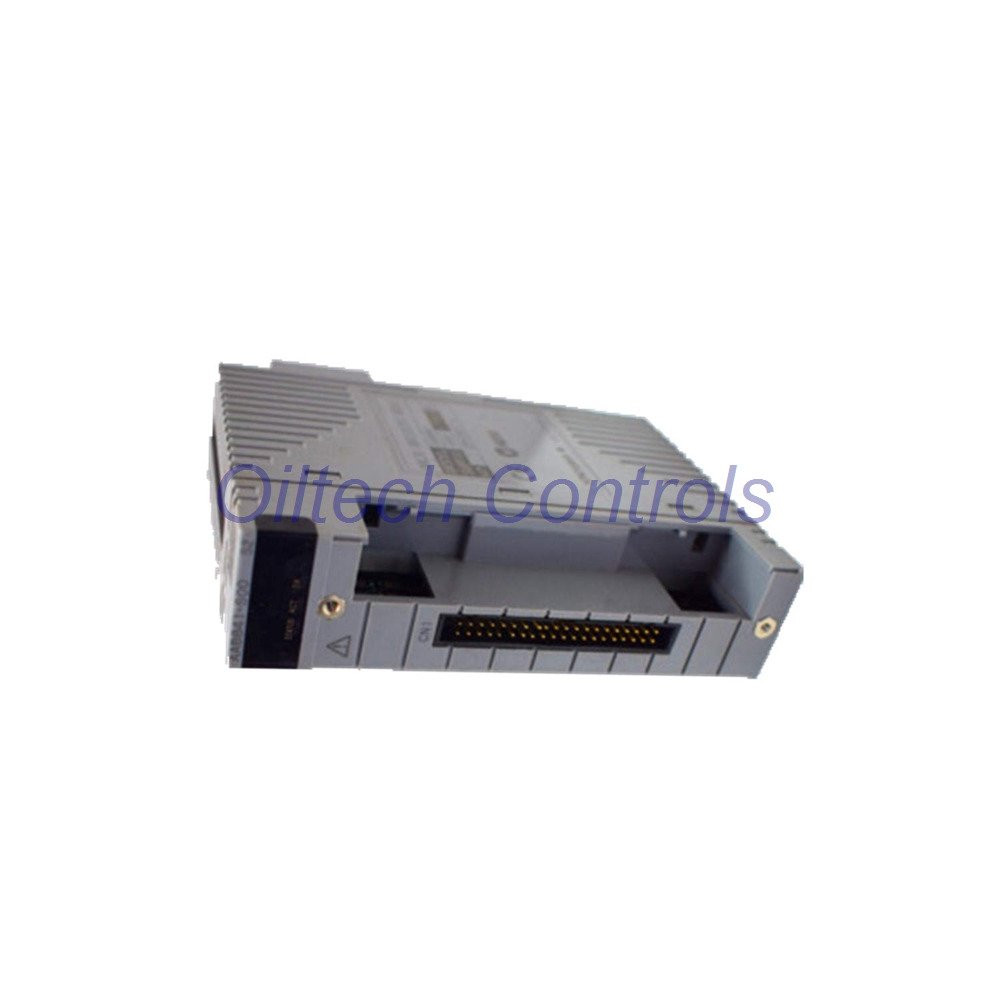

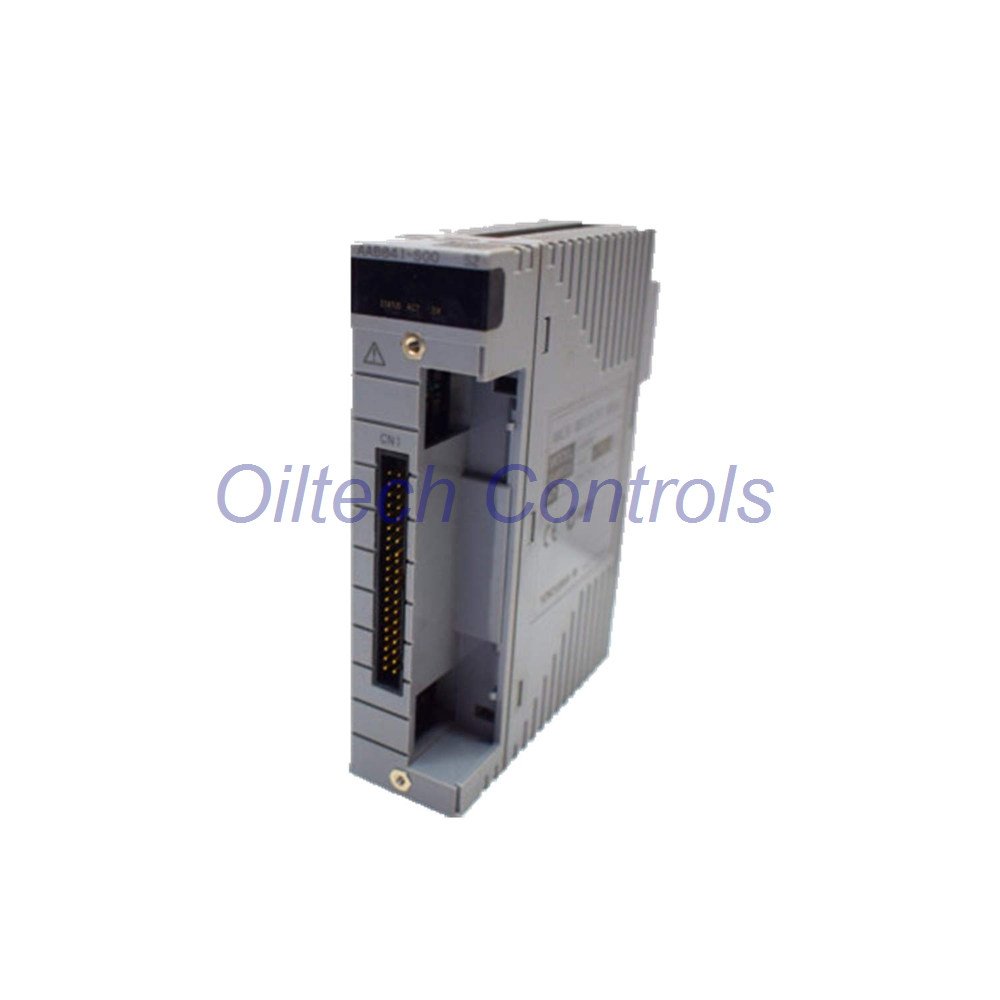

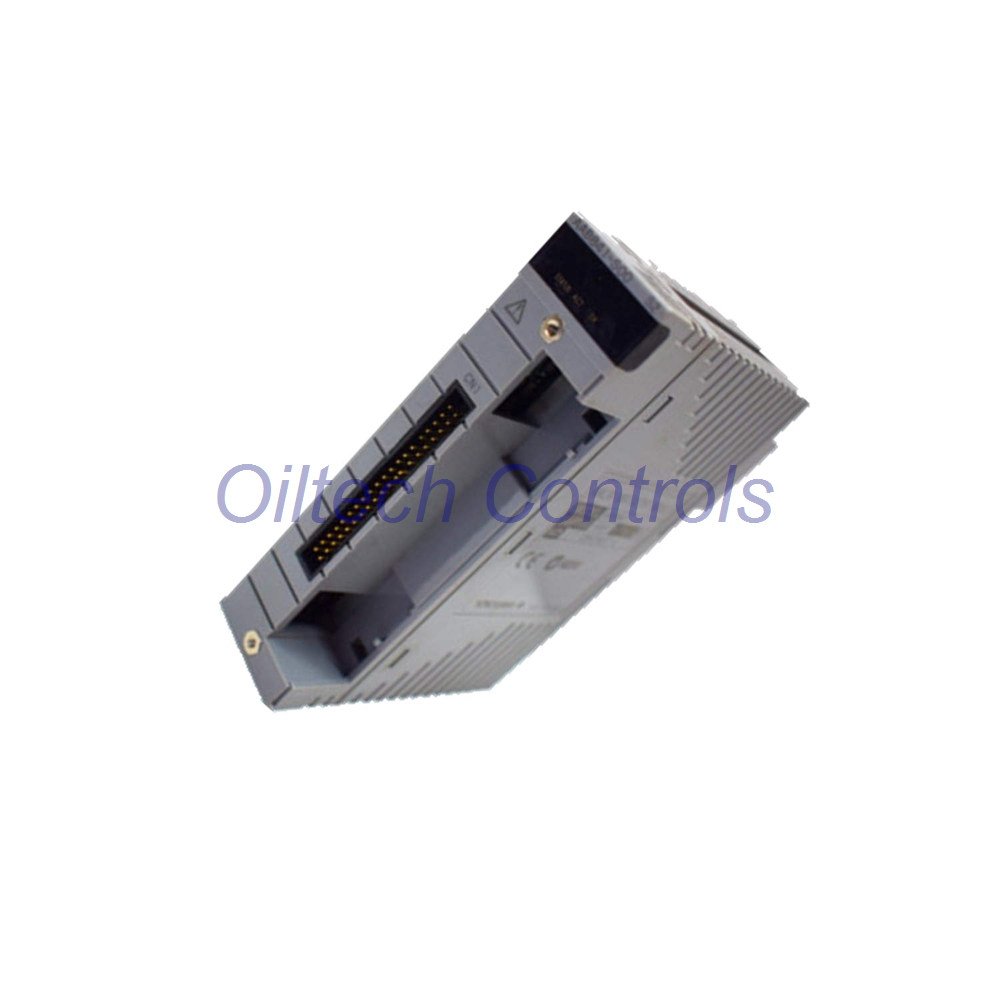

AAB841-S00 Yokogawa Centum VP Analog I/O Module

Oiltech Controls Limited’s Insight

• The Yokogawa AAB841-S00 represents a highly efficient hybrid solution for control loops, combining 8 analog inputs and 8 analog outputs on a single physical card.
• By integrating input acquisition and output driving into a single card, this module saves valuable slot space in high-density Centum VP nodes.
• The non-isolated design relies on shared reference potentials, meaning users must maintain tight control over common-mode voltages (limit to ±1 V or less) to prevent signal degradation.
• Its built-in transmitter power supply (14.8 V to 26.4 V) eliminates the need for separate external 24 V distribution terminal blocks when wiring standard 2-wire field transmitters.

Configuration & Suffix Code Breakdown

• AAB841 — Base Model: Analog I/O Module (1-5 V Input, 4-20 mA Output, 8-Channel In / 8-Channel Out, Non-Isolated)
  • • -S — Module Type: Standard Type
  • • 0 — Safety/Explosion Protection: With No Explosion Protection
  • • 0 — Basic Code: Basic Type
• Compatible Connection Options — Supported Interface Infrastructure
  • • Single Node Configuration: Uses ATA4S terminal board assembly
  • • Dual Redundant Setup: Employs ATA4D redundancy board
  • • Signal Conversion Adapters: Supports ATK4A, ATM4A, and ATV4A
  • • System Cabling: Connects via KS1 or KS2 signal cables
  • • Compatible Terminal Blocks: AEA4D, MCM, MHM, MUB, TE16, MHC

Technical Specifications

The technical parameters of the AAB841-S00 module are outlined in detail below:

Target Equipment, Applications & Diagnostics

• Target Equipment: Integrates directly into Centum VP I/O nodes, local node units, and standard marshalling rack nests.
• Application Scenarios: Ideal for closed-loop control of process valves, variable speed drives, flow regulators, and level transmitters.
• Loop Diagnostics: Features on-board open-circuit detection (triggers when loop current drops below 0.65 mA) to identify broken wires instantly.
• Self-Diagnostic Status: Reports real-time status parameters, tracking module hot-swap events and internal power anomalies to the DCS console.

Shipping, Warranty, and Logistics

• Warranty Policy: This product includes a comprehensive 12-month factory-backed replacement warranty.
• Global Delivery Network: Worldwide shipping is managed via premier couriers including FedEx, UPS, and DHL.
• Packaging Standards: Supplied in clean, ESD-safe original protective packaging suitable for long-term critical spare storage.

Technical Support & Sourcing FAQ

• Question: Can this module handle 2-wire and 4-wire field transmitters on adjacent channels simultaneously?Answer: Yes, you can set each channel individually to either 2-wire or 4-wire mode using the onboard configuration pins.
• Question: How do I protect the non-isolated inputs from common-mode voltage damage?Answer: Ensure all field sensors share a common reference ground and keep the total common-mode voltage differences below the ±1 V threshold limit.
• Question: What are the primary symptoms of an open-circuit fault on the output channel?Answer: The system console flags a fault as soon as the output channel current drops below 0.65 mA, signaling a loose wire or open field loop.
• Question: Does this card support hot-swap replacement while the node unit is powered and active?Answer: Yes, this standard Centum VP module supports online hot-swapping, provided the diagnostic steps are followed to transition loop control safely.
• Question: Is a dedicated external terminal board mandatory for installing the AAB841-S00?Answer: Yes, connection to field wiring requires a terminal board such as AEA4D, alongside standard KS1 or KS2 cable assemblies.
