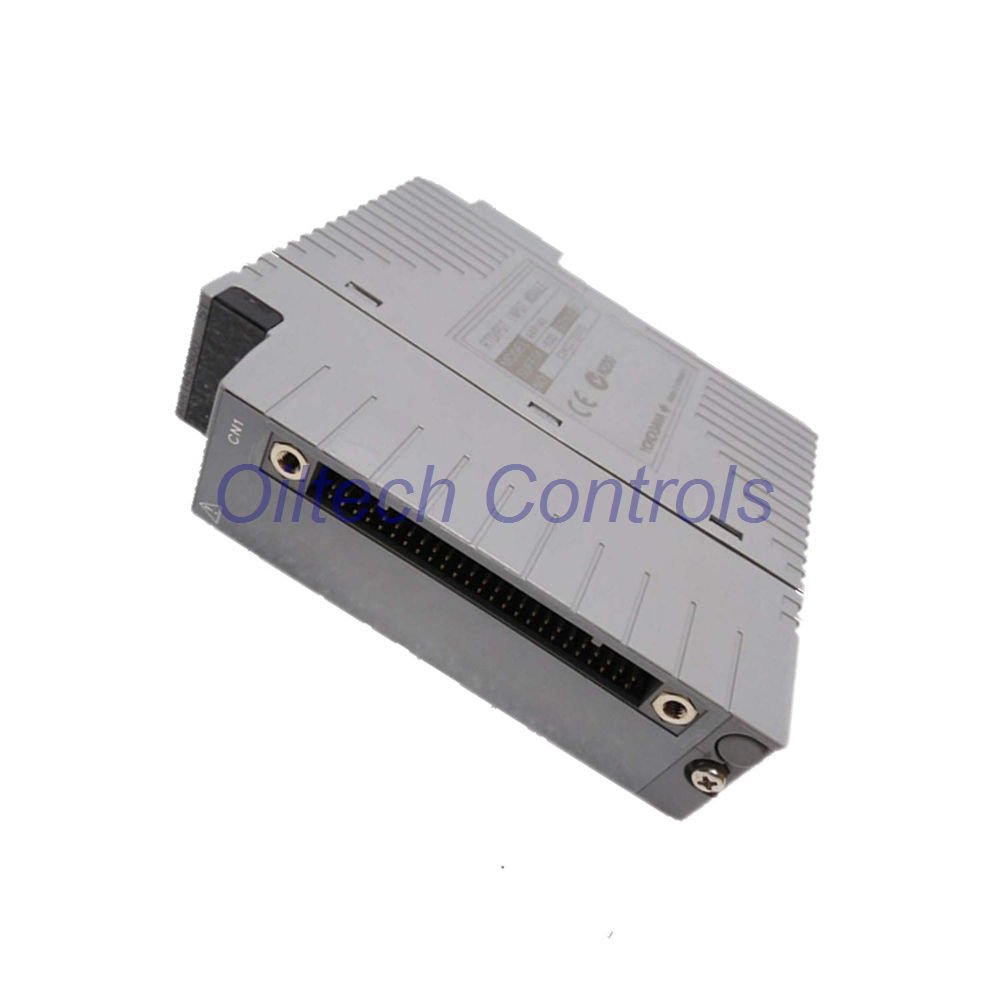

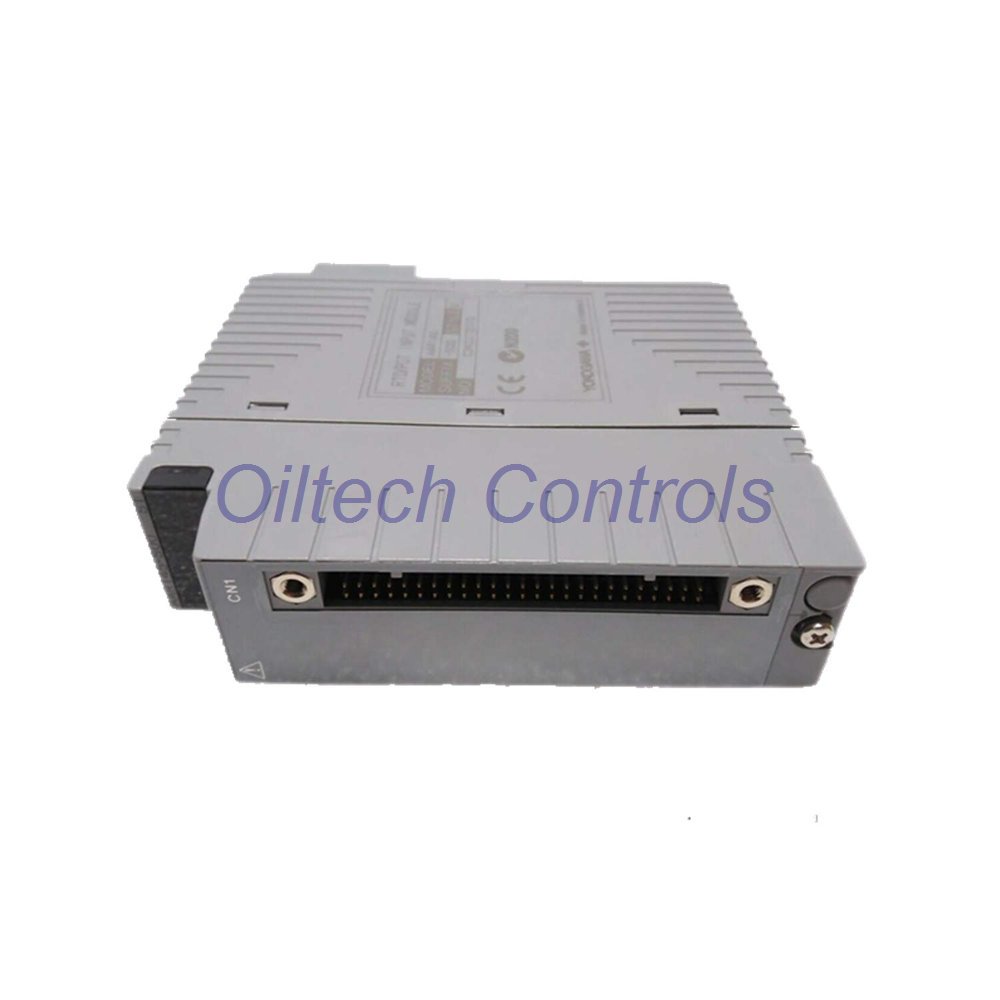

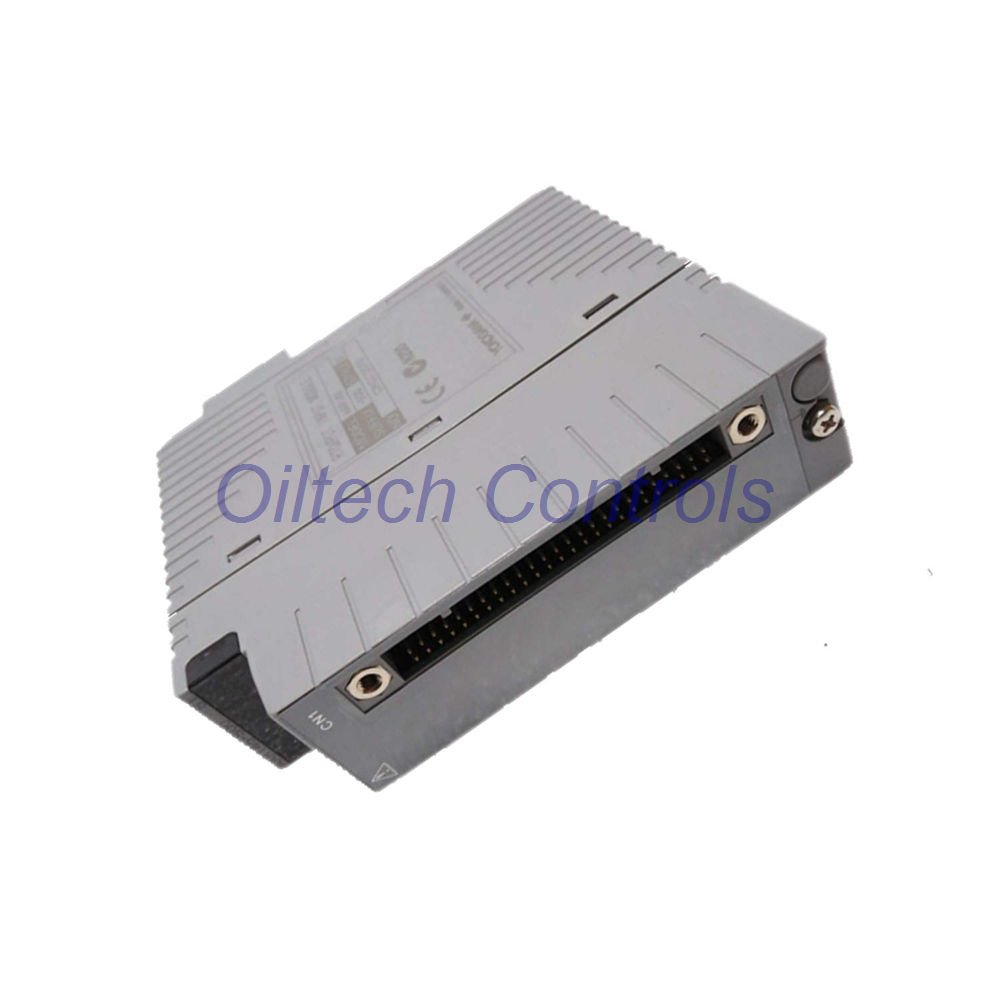

AAR145-S00 Yokogawa RTD/POT Input Module | 16-Channel

Product Core Specifications

The AAR145-S00 is a high-density 16-channel isolated input module engineered for precise RTD and potentiometer signal acquisition. This module provides individual channel configuration, ensuring flexibility for complex instrumentation loops.

Configuration Breakdown

• AAR145: RTD/POT Input Module (16-channel, Isolated)
  • -S: Standard Type
  • 0: With no explosion protection
  • 0: Basic Version

Oiltech Controls Limited Insight

The AAR145-S00 excels in high-noise environments where channel-to-channel isolation is mandatory. Our engineers recommend this module for retrofitting aging DCS infrastructure where signal integrity is paramount. Its software-defined switching between RTD and Potentiometer modes optimizes spare part management and reduces inventory complexity.

Diagnostic & Application Capabilities

• Diagnostic Features: Onboard burnout detection (UP/DOWN) for each channel to identify wiring failures quickly.
• Typical Equipment: Centum VP systems, remote I/O nodes, and safety-critical temperature monitoring stations.
• Industrial Applications: Precision heating control, valve position feedback, and laboratory environmental monitoring.

Ordering, Support & Shipping

• Warranty: Every unit includes a comprehensive 12-month quality warranty.
• Logistics: We facilitate rapid global shipping via FedEx, UPS, and DHL.

Professional FAQs

Q1: Can I mix RTD and Potentiometer signals on a single AAR145-S00 card?
Yes, each of the 16 channels can be configured individually for either RTD or POT input, offering complete application flexibility.

Q2: What is the maximum allowable wiring resistance for accurate readings?
The signal source plus wiring resistance should not exceed 150 Ω per wire to maintain specified accuracy.

Q3: How do I handle burnout detection settings for this module?
Burnout detection can be set for all channels simultaneously, with a 60-second detection time to filter out transient signal noise.

Q4: Why should I choose the AAR145-S00 over older legacy modules?
The AAR145 offers isolated channel architecture, which significantly improves signal stability compared to non-isolated legacy cards.

Q5: What should I consider during the initial installation?
Ensure you use the specified KS8 or AKB335 cables for reliable connectivity to the MRT/TERT/AER4D terminal boards.
