Product Overview

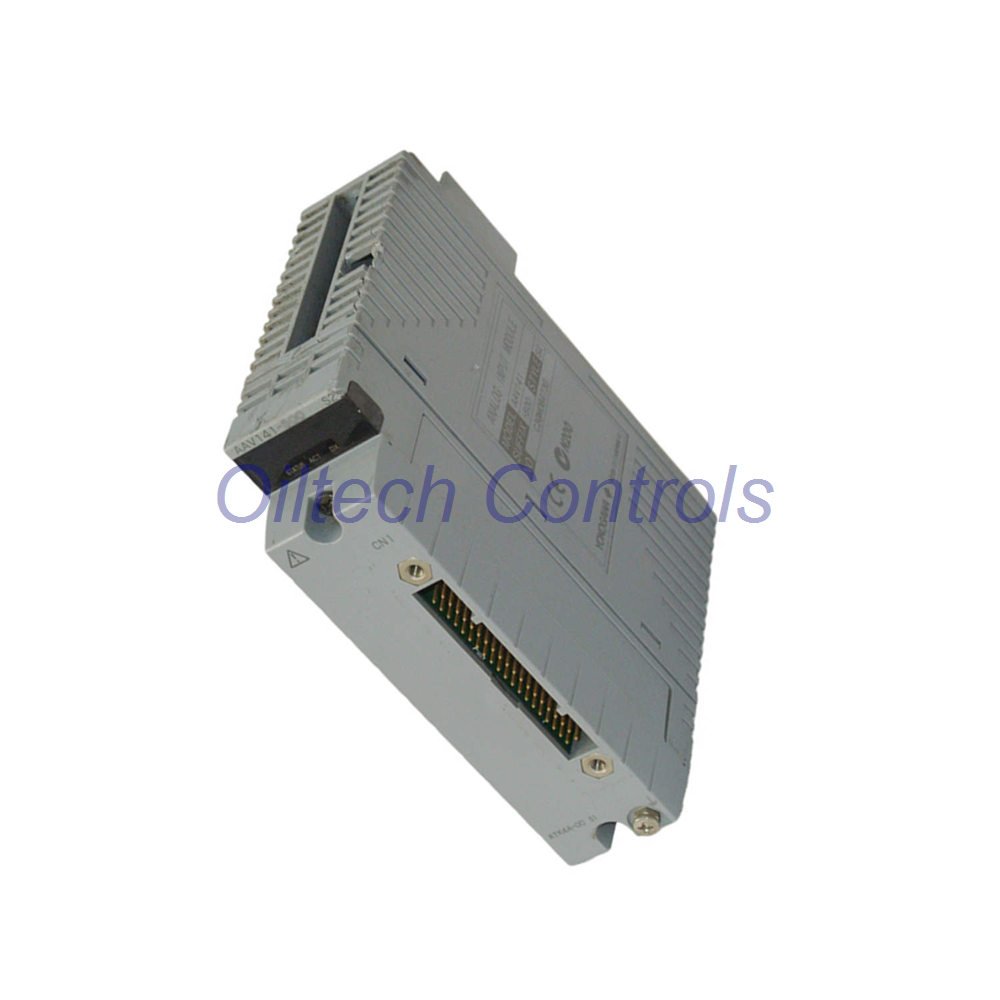

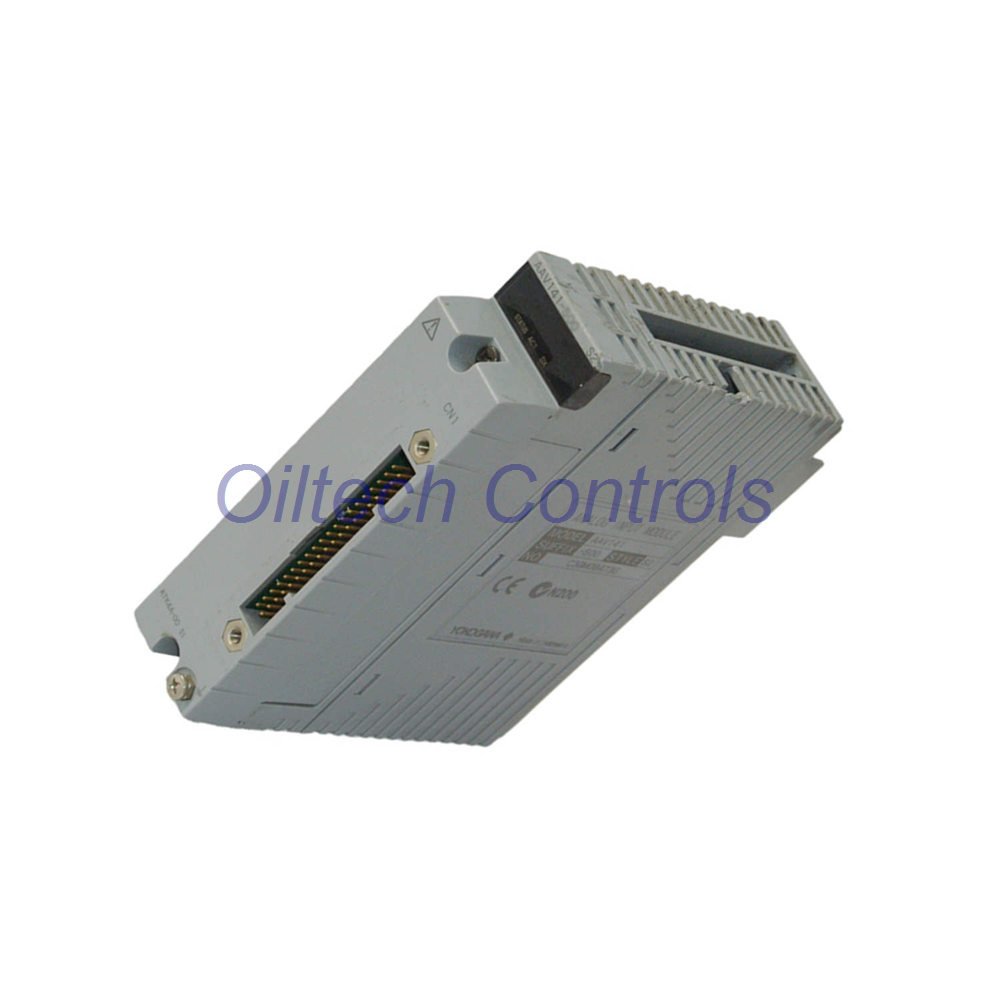

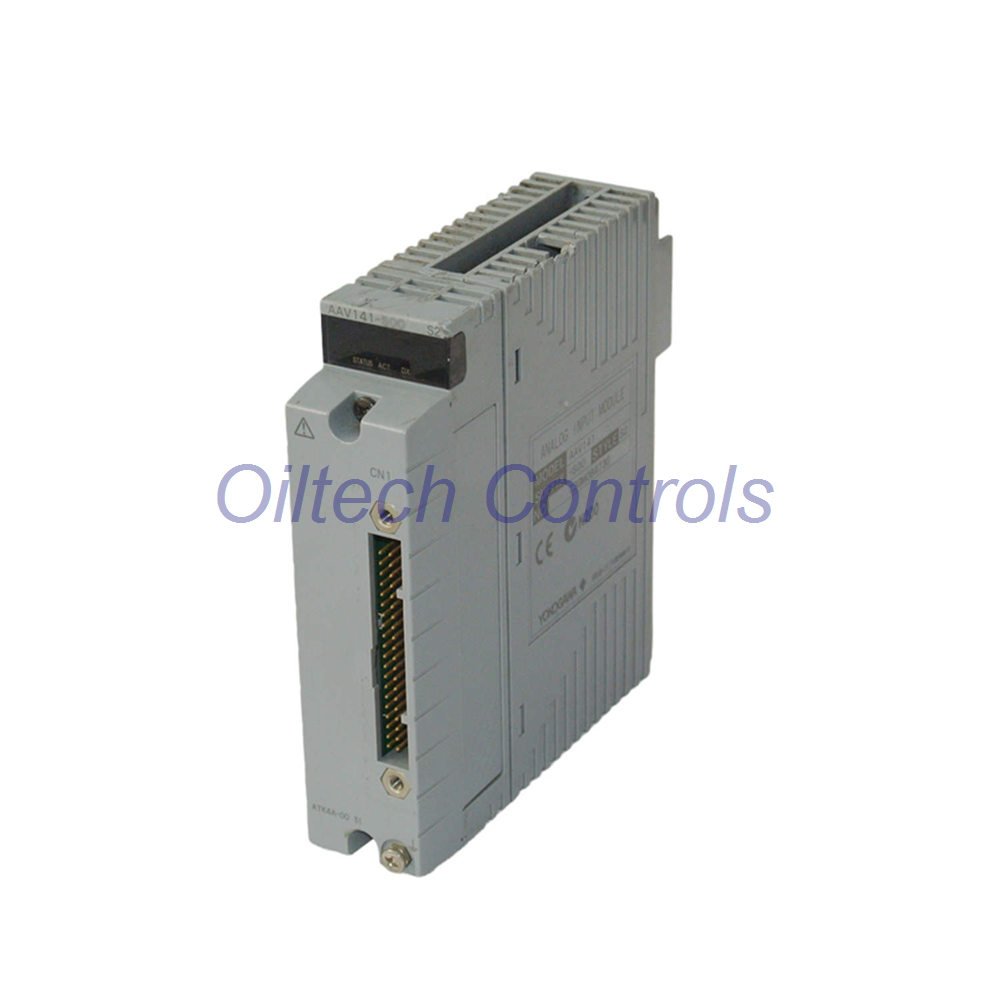

The Yokogawa AAV141-S50 is a high-speed 16-channel non-isolated differential analog input module designed for process control architectures. Plant engineers utilize this compact card to process 1 to 5 V DC field signals with a fast 10 ms update period and ±4 mV accuracy.
Technical Specifications
- Brand & Model: Yokogawa AAV141-S50 (Basic Standard Non-Explosion Type)
- Input Channel Count: 16 channels, non-isolated (differential input mode)
- Rated Signal Input: 1 to 5 V DC range with allowable common mode voltage ≤ ±1 V
- Input Protection Threshold: Up to ±7.5 V DC allowable input overvoltage limit
- Input Resistance: ≥ 1 MΩ during Power-ON condition | ≥ 340 kΩ during Power-OFF condition
- Precision & Stability: ±4 mV accuracy rating | Temperature drift ±4 mV / 10 °C
- Execution Timing: 10 ms data refresh cycle | 100 ms step response time
- Power Consumption: 350 mA maximum draw at 5 V DC backplane supply
- Module Mass & Cabling: 0.2 kg net weight | Pressure clamp terminal, KS cable, or MIL connector options
- HART Support Status: Not supported on this specific hardware revision
Oiltech Controls Review & Compatible Systems
- DCS System Compatibility: Operates seamlessly inside Yokogawa CENTUM VP and CENTUM CS 3000 node sub-racks.
- Target Equipment Integration: Ideal for monitoring pressure transmitters, continuous flow meters, temperature conditioners, and valve position feedback units.
- Differential Circuit Advantage: Differential inputs help suppress ground loop noise across shared non-isolated field lines.
- Maintenance Efficiency: Low-power 0.2 kg architecture reduces rack thermal loading in dense control enclosures.
Dispatch, Packaging & Warranty Terms
- Fast Logistics Dispatch: Orders process and dispatch within 24 to 48 hours following payment verification.
- Worldwide Express Delivery: Shipped internationally via premier carriers FedEx, UPS, and DHL.
- Safe Transportation Packaging: Packed securely inside anti-static ESD shielding with fitted foam cushioning.
- Warranty Protection: Backed by our standard 12-month complete operational warranty.
Why Buy From Oiltech Controls?
- 15+ Years Technical Leadership: Over 15 years specializing in industrial automation and DCS control system spare parts.
- Worldwide Supply Infrastructure: Proven cross-border fulfillment network delivering to industrial facilities in 80+ countries.
- Tested Surplus & Refurbished Stock: Thoroughly bench-tested surplus units and certified refurbished options in stock.
- Comprehensive 1-Year Warranty: Full 12-month engineering warranty protection on all delivered hardware.
- Pre-Shipment Channel Testing: Technical verification and signal calibration checks performed before packing.
- Obsolete System Support: Dedicated sourcing channels for hard-to-find legacy control hardware across major brands.
Documentation & Support Contact
- Manual Download Notice: Operators should download the official engineering manual below to verify common-mode voltage limits and field wiring pinouts prior to commissioning.
- Email Sales Support: Send inquiries directly to our technical team at info@oiltechcontrols.com.
- WhatsApp Engineering Support: Get quick technical answers via WhatsApp at +86 158 8020 0923.
Frequently Asked Questions (FAQ)
- Q: Does the AAV141-S50 support HART field smart instruments?
A: No, the AAV141 model is designed strictly for standard 1 to 5 V DC analog signals and does not feature HART pass-through. - Q: What precautions are necessary regarding the common mode voltage limit on the AAV141-S50?
A: Ensure ground potential differences between field devices do not exceed ±1 V, as higher common-mode levels distort input measurements. - Q: Can I use 4 to 20 mA transmitters with the AAV141-S50 module?
A: Yes, you can convert 4-20 mA field signals to 1-5 V DC by installing precision 250 Ω shunt resistors across the terminal block. - Q: What is the main selection difference between non-isolated and channel-isolated input cards?
A: Non-isolated cards like the AAV141 offer higher channel density and lower cost, but require clean, noise-free field loops with common reference grounds. - Q: What maintenance step prevents channel failure during plant turnarounds?
A: Check terminal screws for tightness and verify input signal voltages remain within the ±7.5 V permissible input threshold.
