Safety System Architecture: 1791DS-IB8XOB8 Guard I/O

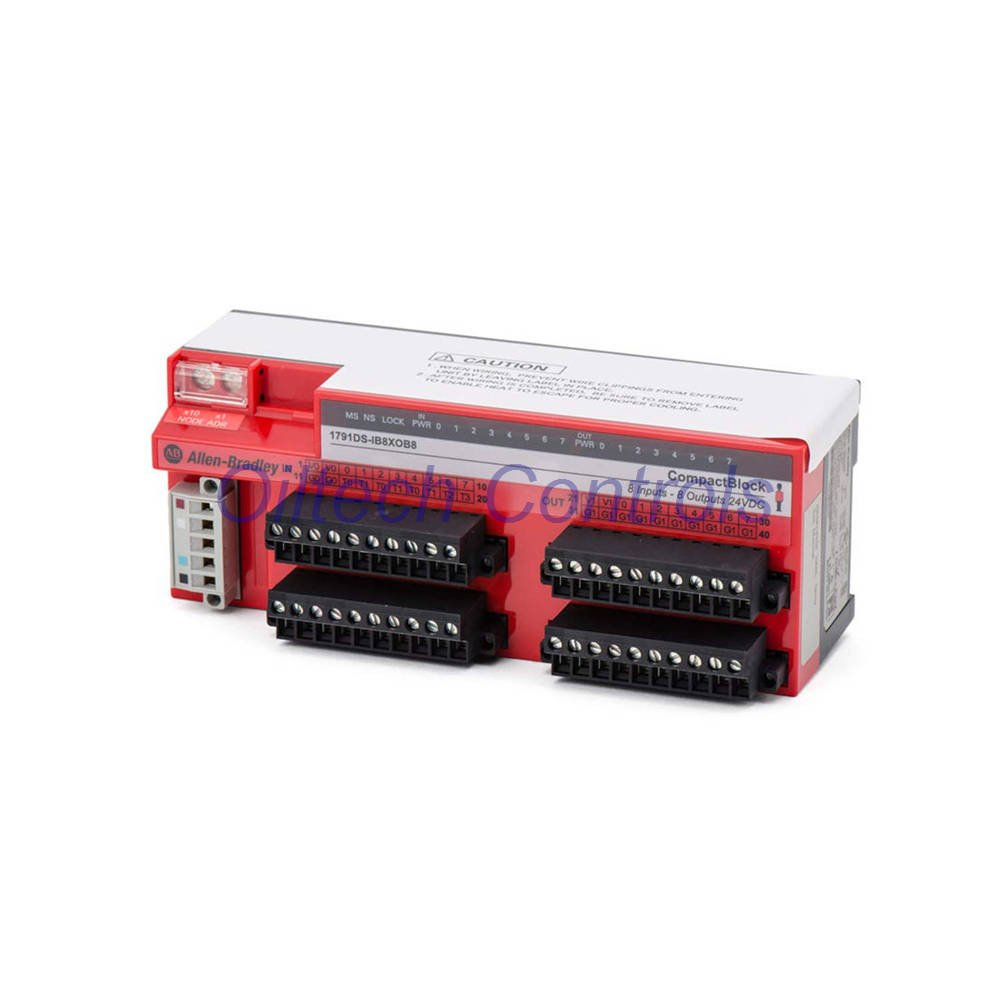

The 1791DS-IB8XOB8 functions as a high-integrity DeviceNet Safety module within the Allen-Bradley Guard I/O family. This distributed block provides eight sinking safety inputs, eight sourcing solid-state safety outputs, and four test outputs for comprehensive loop monitoring. Designed for mission-critical environments, the 1791DS-IB8XOB8 meets SIL3 and Category 4 safety requirements according to IEC 61508 and EN 954-1 standards. Its compact IP20 enclosure houses advanced self-diagnostic capabilities, ensuring real-time status feedback for individual input points and output readback verification.
Detailed Technical Matrix
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Model Number: 1791DS-IB8XOB8
- Safety Inputs: 8 Sinking channels (11V DC min ON-state)
- Safety Outputs: 8 Sourcing solid-state channels (0.5A rated)
- Test Outputs: 4 Sourcing channels (0.7A rated) for pulse testing
- Protocol: DeviceNet Safety (CIP Safety over DeviceNet)
- I/O Power Supply: 20.4 to 26.4V DC (24V DC Nominal)
- Communication Power: 11 to 25V DC via DeviceNet network
- Current Consumption: 110 mA at 24V DC
- Environmental Rating: IP20 Ingress Protection
- Shock/Vibration: 15G operational shock / 5G vibration at 10-500Hz
- Operating Temp: -10 to 55 °C (14 to 131 °F)
Oiltech Controls’s Insight
- SIL3 Compliance: This module is essential for applications requiring Safety Integrity Level 3 and Performance Level e (PLe) ratings.
- Equipment Compatibility: Ideal for interfacing with E-stop pushbuttons, light curtains, safety gates, and safety mats.
- Diagnostic Advantage: Integrated status data tracks “Individual Point Output Status” and “Combined Input Status” for rapid fault isolation.
- Wiring Flexibility: Supports solid or flexible copper wire from AWG 24 to 12 using insulation-covered bar terminals.
- Configuration Lock: Features a built-in lock to prevent unauthorized changes to safety parameters once commissioned.
Global Logistics & Service Standards
- Shipping Window: All 1791DS-IB8XOB8 units dispatch within 24-28 hours.
- Express Carriers: We utilize FedEx, UPS, and DHL for rapid international transit.
- Warranty Protection: Includes our signature 12-month functional warranty for peace of mind.
- Technical Support: Reach our engineers via info@oiltechcontrols.com or +86 158 8020 0923.
- Packaging: Shipped in industrial-grade protective housing to withstand 15G shock during transit.
Safety Engineering FAQ
What is the purpose of the 4 Test Outputs on the 1791DS-IB8XOB8?
Test outputs provide pulse testing for safety inputs to detect short circuits to power lines or cross-channel shorts.
How do I handle a “Configuration Lock” error during replacement?
You must use RSNetWorx for DeviceNet to reset the safety ownership or enter the correct safety network number (SNN).
Can I use the 1791DS-IB8XOB8 on a standard DeviceNet network?
While it sits on DeviceNet hardware, it requires a Safety Controller (like GuardLogix) and CIP Safety protocol to execute safety logic.
What are the wiring limits for the 0.7A test outputs?
Ensure use of copper wire between 0.2 and 2.5 mm²; exceeding 0.7A will trigger the module’s internal overcurrent protection.
Selection Guidance: When should I choose the 1791DS over 1791ES?
Select the 1791DS-IB8XOB8 specifically for DeviceNet Safety architectures; the ES series is intended for EtherNet/IP Safety.
