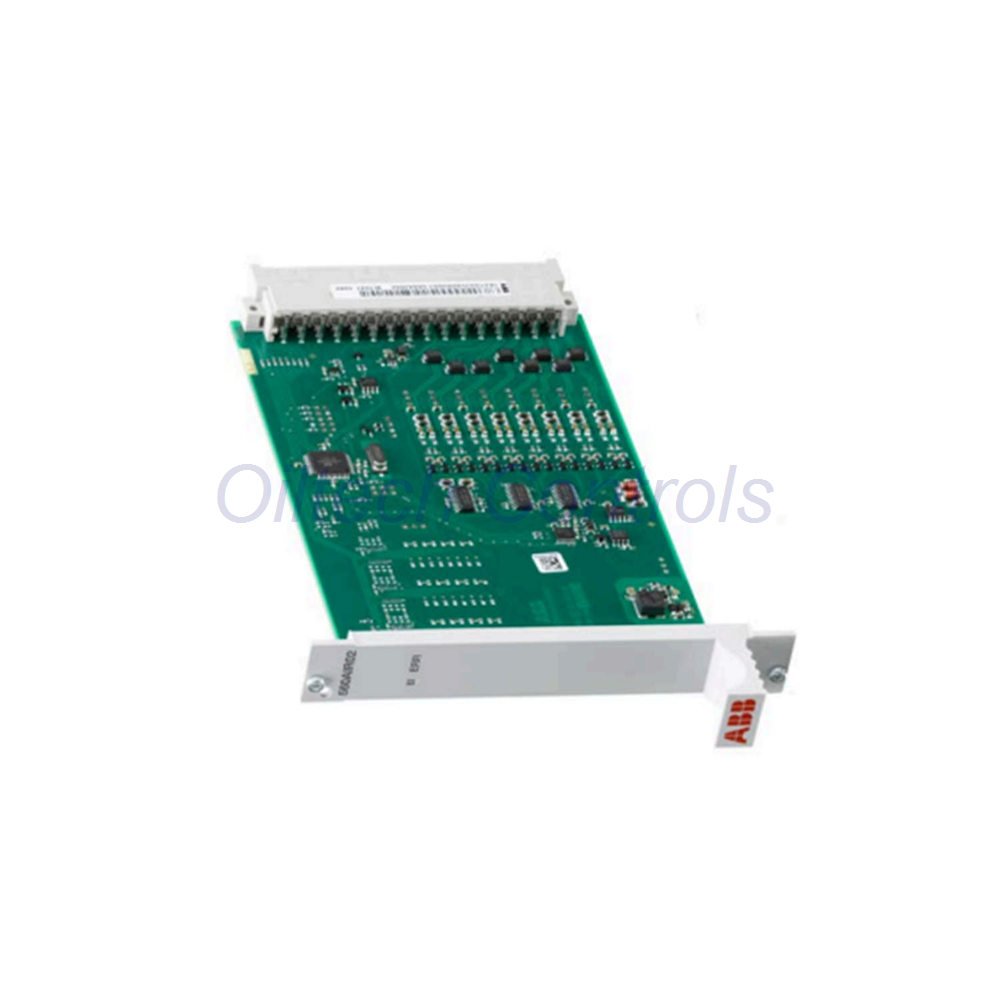

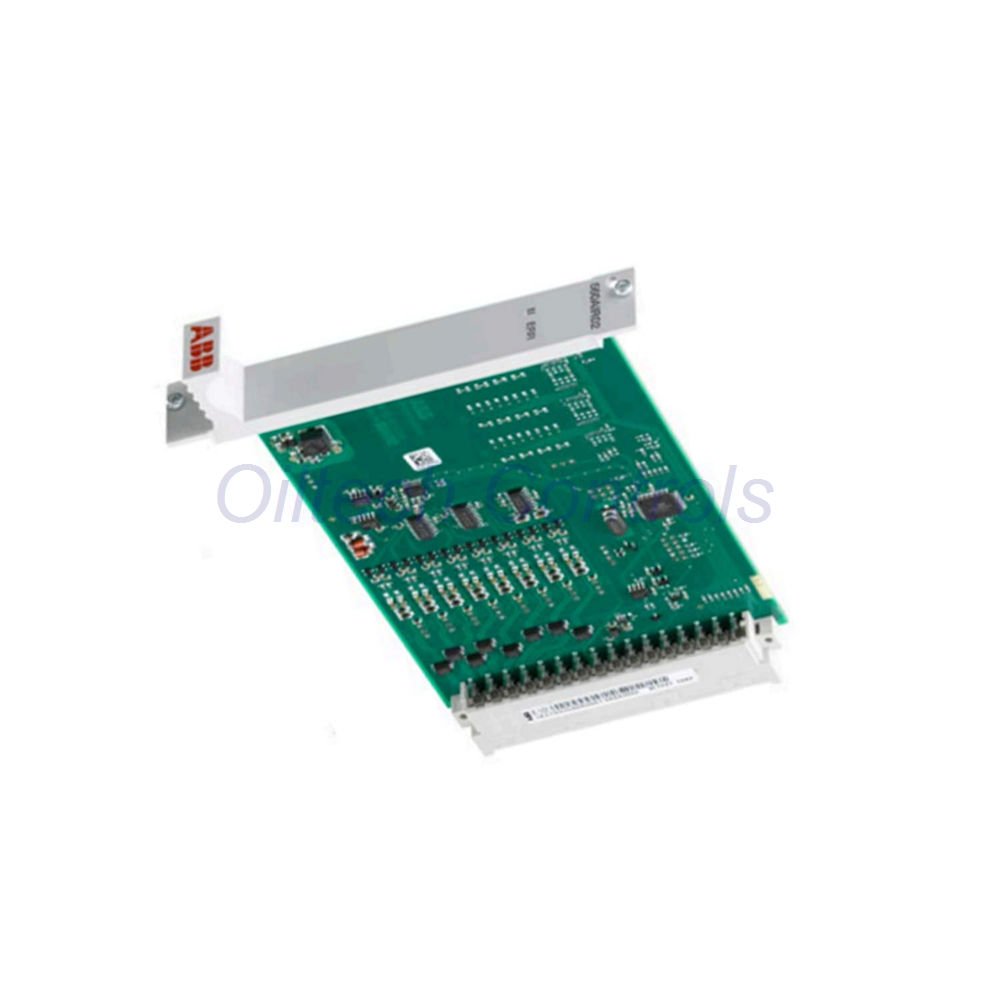

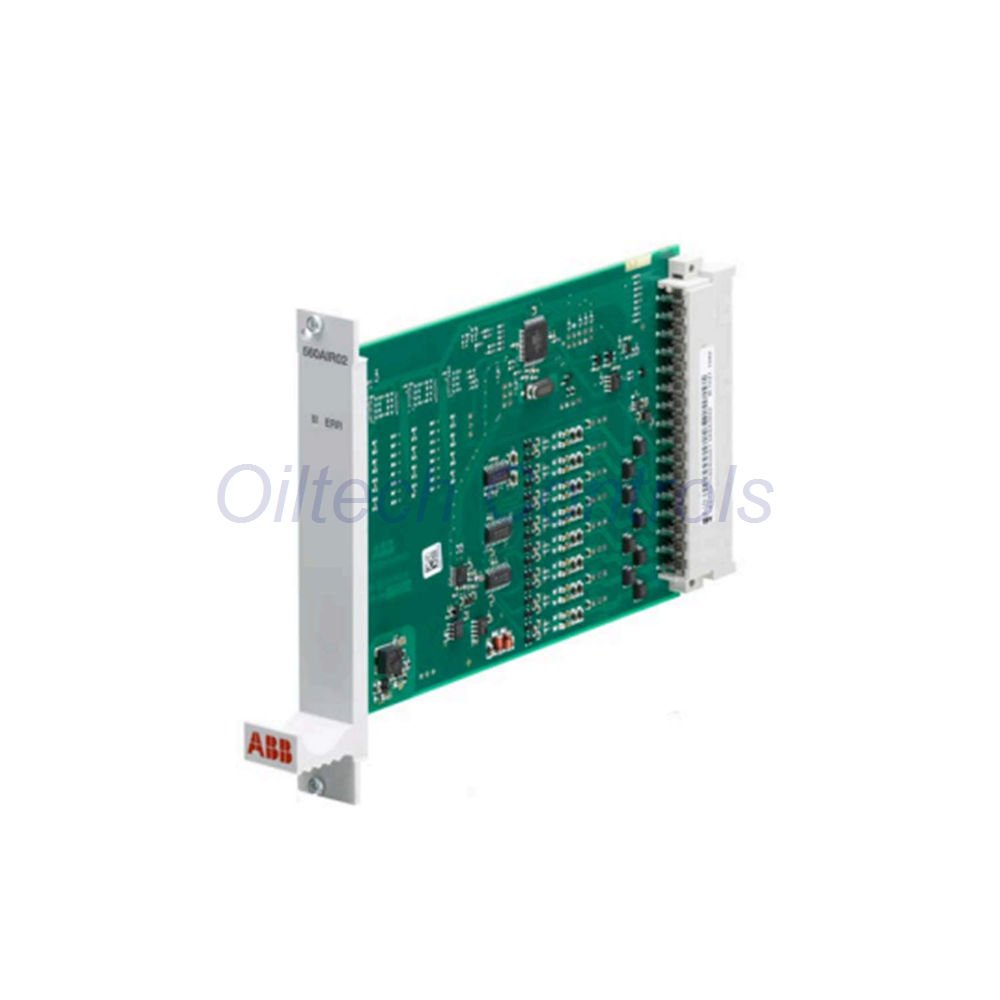

560AIR02 RTU560 Product Insight
The 560AIR02 is a high-precision analog input module within the RTU560 product line. It features 8 differential channels with a 16-bit AD converter for superior signal accuracy. Engineered for power utilities, it handles AMI and MFI signals while compensating for long-term drift via automatic zero calibration. Its robust design suppresses frequency interference, making the 560AIR02 ideal for substation automation and demanding industrial control systems.
Technical Specifications
- Product Line: RTU560 Series
- Model: 560AIR02
- Input Type: 8 Analog Channels (Differential)
- ADC Resolution: 16-bit High-Resolution
- Measurement Ranges: +/-2 mA; +/-5 mA; +/-10 mA; +/-20 mA; +/-40 mA
- Step Resolution: 4096 steps (12 bit plus sign)
- Galvanic Isolation: Connected to power supply for protection
- Frequency Support: 16.7 Hz, 50 Hz, 60 Hz (Configurable)
- Signal Processing: Local AMI/MFI event-driven reporting
Performance and Conversion Timing
- 50/60 Hz Conversion: 54 ms per channel
- 50/60 Hz Scan Cycle: 486 ms for all channels
- 16.7 Hz Conversion: 155 ms per channel
- 16.7 Hz Scan Cycle: 1395 ms for all channels
- Zero Calibration: Automatic internal compensation
- Filter Type: Integrated low-pass filter for frequency suppression
Oiltech Controls’s Review
- The 560AIR02 excels in current loop monitoring where high-bit resolution is non-negotiable.
- We recommend this for ABB RTU560 racks requiring precise AMI data under noisy conditions.
- Its synchronization with line frequency effectively eliminates DC signal interference.
- Compatible with RTUtil500 for rapid configuration and deployment.
- Typical use cases: Power plant control, smart grid telemetry, and process automation.
Professional FAQ & Buyer’s Guide
- How does the 560AIR02 ensure long-term accuracy?
It uses a dedicated internal channel for automatic zero calibration to offset component drift over time. - Can I use this for live-zero (e.g., 4-20mA) signals?
Yes, these values are generated by the Communication Unit (CMU) using the raw 560AIR02 input data. - What happens if a channel experiences a static surge?
The 560AIR02 includes a protection circuit specifically designed to guard against static and dynamic over-voltages. - Why choose 16-bit ADC over standard 12-bit modules?
The 16-bit resolution allows for uniform precision across all configured measurement ranges, even at low amplitudes. - Selection Tip: How do I choose the correct frequency?
Match the module frequency to your local power grid (50Hz/60Hz) in RTUtil500 to maximize interference rejection.
Logistics and Service Terms
- Warranty: 12-Month Quality Guarantee
- Shipping Time: Dispatched within 24-28 hours from order confirmation
- Delivery Methods: Express via FedEx, UPS, DHL
- Condition: New and Original stock for the 560AIR02 series
- Contact: info@oiltechcontrols.com
- WhatsApp: +86 158 8020 0923
Package Contents
- One 560AIR02 Analog Input Module
- Hardware Installation Datasheet
