ABB PST300-600-70 Soft Starter | 300A 600V Motor Controller

Product At A Glance

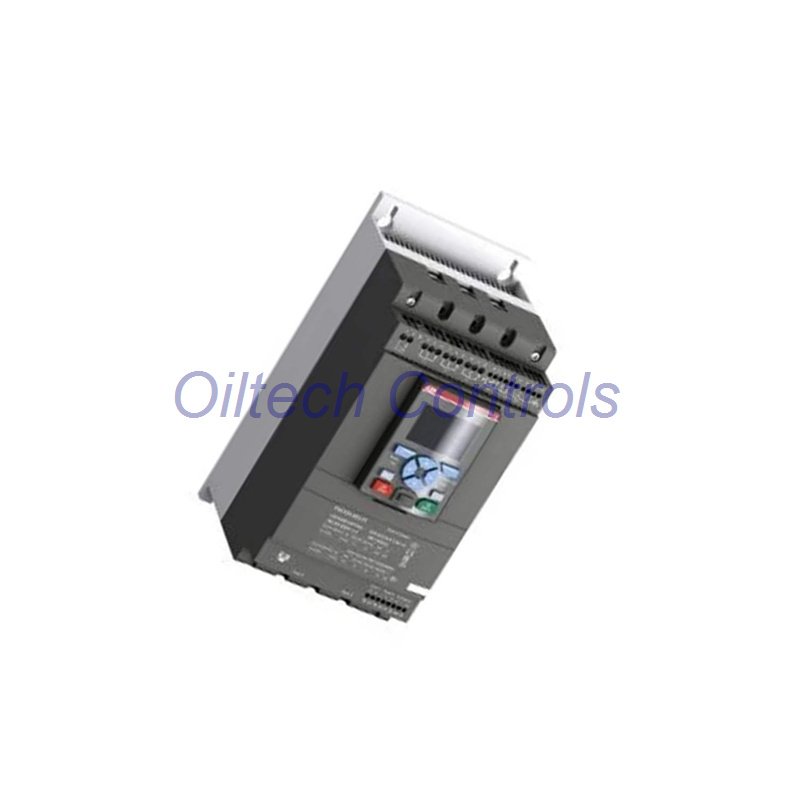

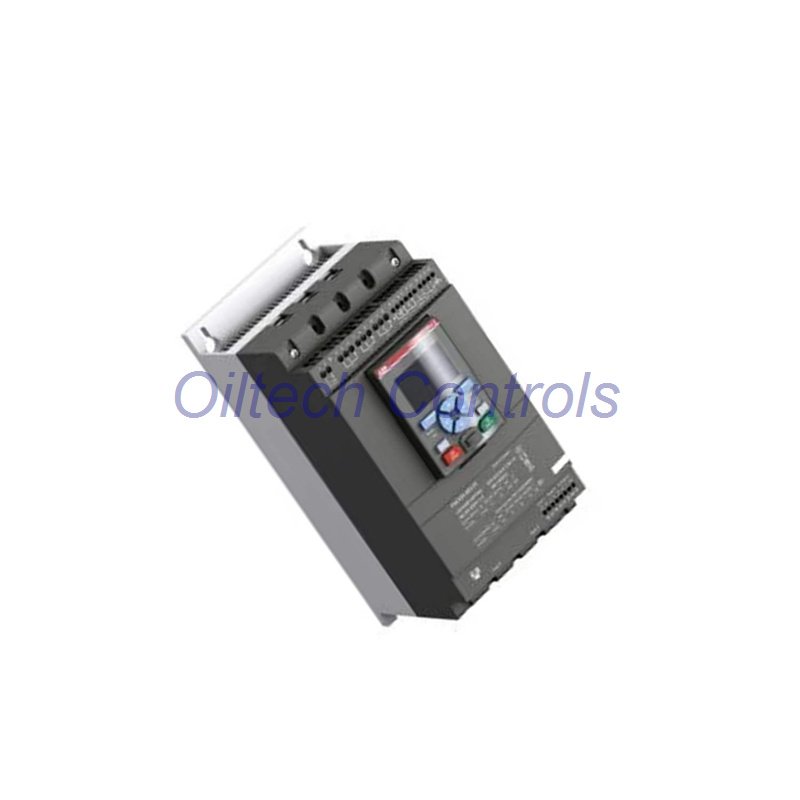

The ABB PST300-600-70 is a powerful soft starter. It controls how motors start and stop. This reduces stress on the motor and machinery. It is reliable and built for industrial use.

Core Advantages

• Smooth Motor Start & Stop: Reduces mechanical shock, extending equipment life.
• High Power Capacity: Handles up to 300A (in-line) or 515A (inside delta).
• Wide Voltage Range: Works with main circuits from 208V to 600V AC.
• Built-in Protection: Includes electronic overload and fault monitoring.
• Flexible Control: Adjustable ramp time (0-120s) and start voltage (30-70%).
• Multiple Signals: Run, bypass, fault, and overload relay outputs.
• Easy Communication: Standard FieldBusPlug for system integration.
• Robust Design: Built for tough environments (operates 0°C to +50°C).

Detailed Technical Data

• Model: ABB PST300-600-70
• Catalog ID: 1SFA894014R7000
• Rated Current (Ie): 300 A (In-Line)
• Rated Power (Pe): 160 kW @ 400V | 200 kW @ 500V
• Inside Delta Power: 257 kW @ 400V | 355 kW @ 500V
• Inside Delta Current: 515 A
• Main Voltage: 208 … 600 V AC
• Control Voltage (Us): 100 … 250 V AC | 24 V DC
• Starting Capacity: 3 x Ie for 15 seconds
• Starts Per Hour: 30 starts at 3.5*Ie for 7 sec
• Ramp Time: Adjustable from 0 to 120 seconds
• Current Limit: 1.5 to 7 x Ie
• Protection Degree: Main Terminals IP00
• Analog Outputs: 0-10V, 0-20mA, 4-20mA
• Communication: FieldBusPlug (Standard)
• Dimensions (WxHxD): 360 x 420 x 270 mm
• Weight: 23 kg
• Operating Temperature: 0°C to +50°C

Model Configuration: PST300-600-70

• PST300 – Product Series (Soft Starter)
• 600 – Maximum Main Circuit Voltage (600V AC)
• 70 – Design Version & Current Rating (300A)
  • This variant includes standard control features.
  • It comes with the FieldBusPlug communication module.
  • Designed for direct panel mounting.

Shipping & Support

• Warranty: All products come with a 12-month warranty.
• Packaging: Securely packed in individual cardboard boxes.
• Fast Delivery: We ship globally via FedEx, UPS, and DHL.
• Customs: All international tariffs and duties are the buyer’s responsibility.

Common Questions Answered

• What is the main benefit of using this soft starter?

It greatly reduces the inrush current when starting a motor. This prevents network voltage drops and protects mechanical parts from sudden jolts.

• Can I use this starter for a 480V, 200HP motor?

Yes. The PST300-600-70 is rated for 300A at 500V, which is suitable for a 200HP (approx. 150kW) motor. Always check your motor’s full-load current first.

• What does ‘Inside Delta Connection’ mean?

It is a wiring method where the starter is placed inside the motor’s delta winding. This allows the starter to handle higher motor currents (515A) at a lower cost.

• How do I reset a fault indicated by the red LED?

First, identify and resolve the cause (e.g., overload, phase loss). Then, you can usually reset it by cycling the control power or using a remote signal.

• Is professional installation required?

We recommend installation by a qualified electrician. Proper sizing, wiring, and parameter setting are crucial for safe and reliable operation.
