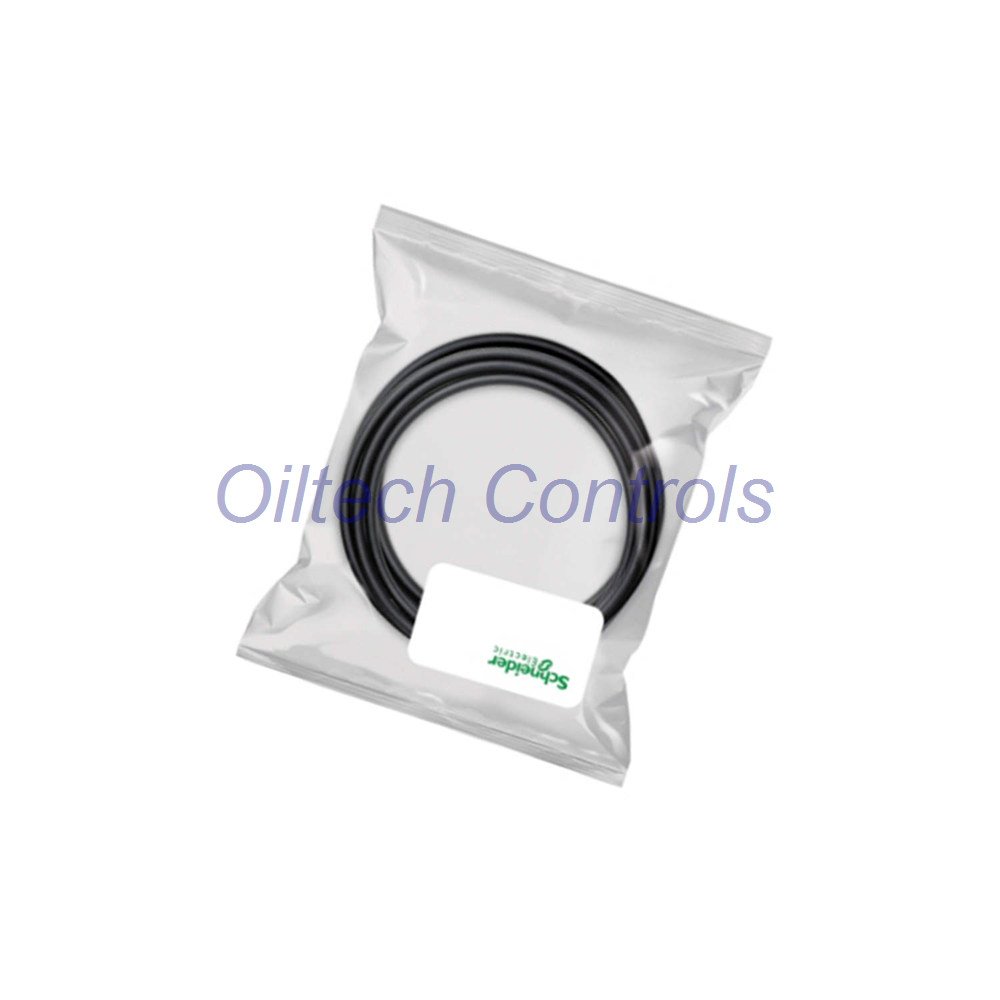

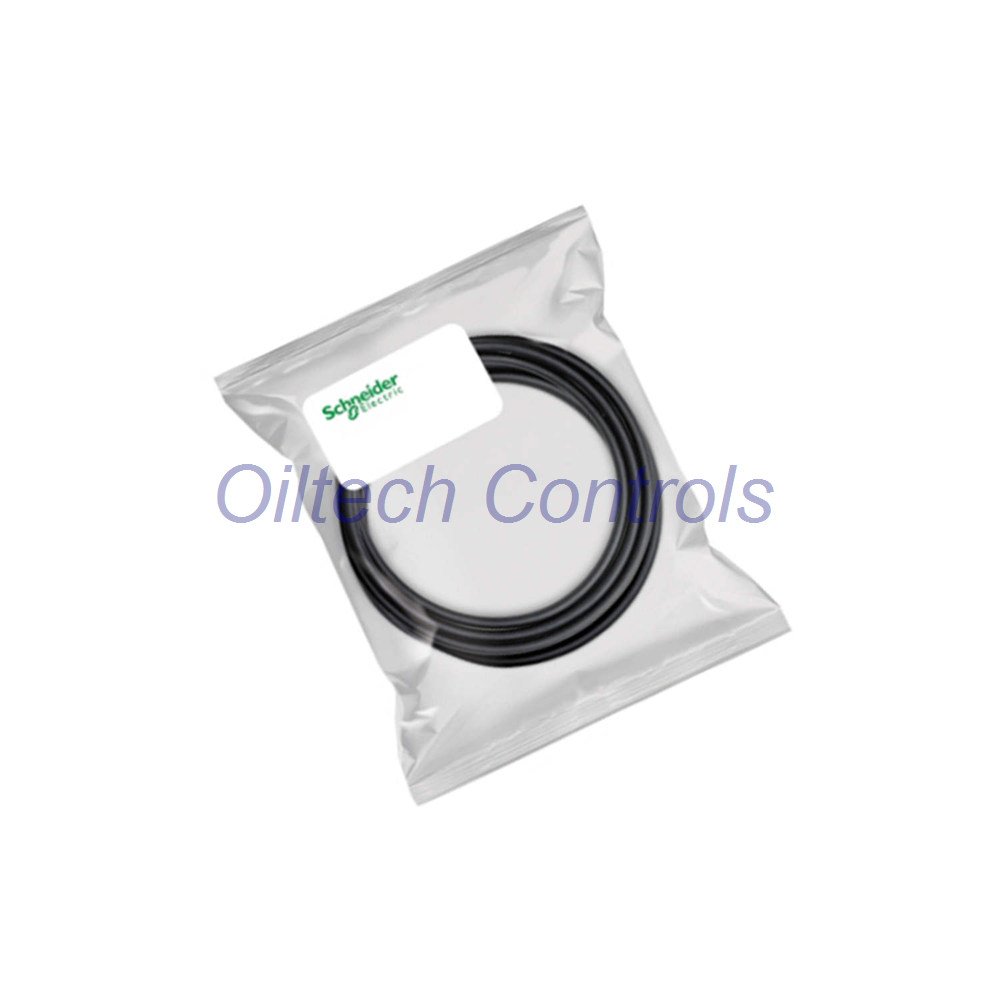

ABFM08S202 Modicon Quantum Cabled Connector – Reliable Analog Link
ABFM08S202 enables stable analog signal transmission for Modicon Quantum systems.
It integrates an 8-channel design with a shielded multi-core cable.
The SUB-D interface ensures secure and precise electrical connectivity.
Ideal for industrial environments requiring accurate current signal input.
Key Functional Attributes
- Supports 8 analog current input channels.
- Designed for Modicon Quantum PLC systems.
- Uses SUB-D 25-pin connector for reliable connection.
- Shielded cable minimizes signal interference.
- Ensures stable data transmission across installations.
Electrical Performance
- Rated voltage: up to 250 V.
- Current rating: 1 A maximum.
- Optimized for analog current signal applications.
- Maintains consistent signal integrity under load.
Cable & Construction Details
- Cable length: 2 meters (6.6 ft).
- Wire gauge: AWG 24.
- Wire section: 0.22 mm².
- Multi-conductor design enhances flexibility.
- PVC insulation ensures durability and protection.
Environmental Capability
- Operating temperature: -20°C to +60°C.
- Suitable for indoor industrial environments.
- Resistant to typical plant conditions.
- Designed for long-term stable operation.
Compatibility & Integration
- Compatible with Modicon Quantum PLC.
- Supports modules such as 140AC013000.
- Easy integration into existing control systems.
- Single connector simplifies installation.
Oiltech Controls’s Insight
- This connector suits analog signal acquisition systems.
- Ideal for process industries and control panels.
- Recommended for applications requiring stable current input signals.
- Performs well in distributed control environments.
Typical Application Use
- Industrial automation panels
- Process control systems
- PLC signal interfacing
- Analog data acquisition setups
- Factory monitoring systems
Logistics & Warranty
- 12-month warranty provided for reliability.
- Fast dispatch within 24–48 hours.
- Shipping via FedEx, UPS, DHL.
- Secure packaging ensures safe delivery.
FAQ
- How do I confirm compatibility with my PLC?
- Check module reference and connector interface specifications.
- Why is shielding important in this cable?
- It reduces electromagnetic interference and signal noise.
- What is the advantage of SUB-D connectors?
- They provide stable multi-pin connections in compact spaces.
- Can this cable be extended?
- Extensions are possible but require proper shielding and grounding.
- What should I consider before ordering?
- Verify channel count, cable length, and system compatibility.
