AH04HC-5A Delta Motion Control Module | High Speed Counter

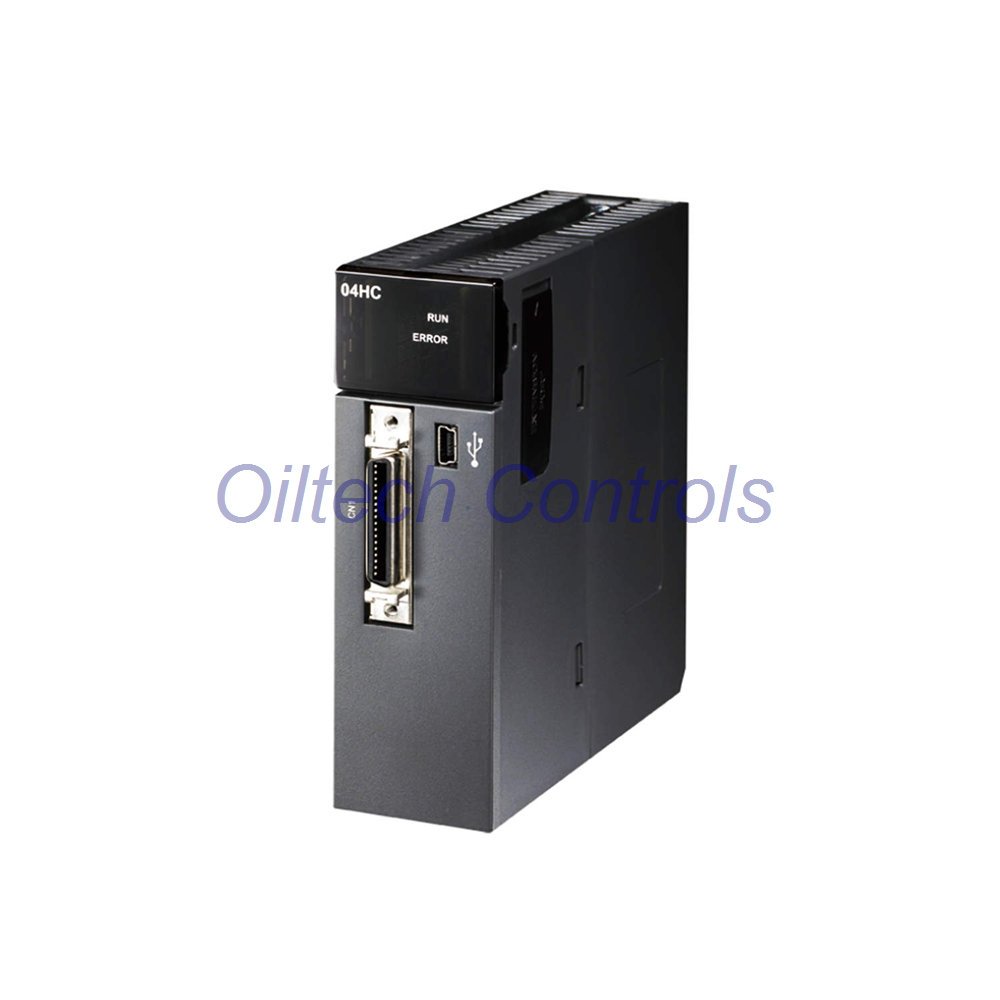

AH04HC-5A High-Speed Motion Control Module Overview

The AH04HC-5A stands as a critical high-speed counting solution within the Delta AH series motion control ecosystem. Engineered for precision, the AH04HC-5A supports high-frequency input processing up to 200kHz across four independent hardware channels. This module facilitates complex motion synchronization by offering multiple counting modes including UD, PD, AB, and 4AB. Its robust backplane mounting design and D-Sub terminal interface ensure reliable signal connectivity for high-speed automated production lines.

Core Technical Specifications

• Manufacturer: Delta Electronics
• Model Number: AH04HC-5A
• Input Capacity: 4-channel digital high-speed counter.
• Frequency Response: Max. 200kHz pulse input frequency per channel.
• Counting Modes: Supports Pulse/Direction (PD), Up/Down (UD), and Phase A/B (AB/4AB) modes.
• Power Consumption: 2.4W internal power usage at 5 to 24 VDC.
• Terminal Interface: High-density D-Sub connection with HDC terminal block type.
• Environmental Tolerance: Operational range from -20°C to 60°C for harsh factory conditions.
• System Features: Integrated hardware interrupt function and hot-swapping capability for zero-downtime maintenance.
• Diagnostic Tools: Real-time module status LED indicators and onboard software diagnostic functions.

Oiltech Controls’ Insight & Device Compatibility

• Expert Review: The AH04HC-5A is indispensable for legacy system maintenance as it is currently marked as “Not for New Designs.”
• Hardware Stability: We recommend this module for applications requiring high-speed pulse feedback from rotary encoders or linear scales.
• Target Equipment: Optimized for CNC labeling machines, multi-axis packaging systems, and precise fly-cutting applications.
• System Integration: Perfectly matches with Delta AH Series PLCs and DVPACAB7D10 interface cables.
• Reliability Note: The hot-swap feature allows engineers to replace modules without halting the entire CPU backplane.

Logistics and Service Commitment

• Quality Assurance: Every unit includes a standard 12-month warranty coverage.
• Processing Speed: We guarantee dispatch within 24-28 hours after payment confirmation.
• Express Logistics: Global shipping available via FedEx, UPS, and DHL for rapid delivery.
• Shipping Weight: Standard export packaging totals 2 kg per module.
• Global Support: Contact us for bulk quotes at info@oiltechcontrols.com.

Expert FAQ & Selection Support

• Why should I choose the AH04HC-5A for an older AH system?
  This module provides drop-in compatibility for existing backplanes, preventing the need for extensive program rewrites during repairs.
• How do I manage signal noise on the 200kHz input lines?
  Engineers should use shielded twisted-pair cables and ensure the AH04HC-5A D-Sub shell is properly grounded to the backplane.
• Can this module handle 5V and 24V signals simultaneously?
  The hardware supports a wide voltage range, but we advise matching signal levels across channels to maintain linearity.
• What is the recommended selection criteria for counter modules?
  Always verify your maximum encoder frequency; if your pulse rate exceeds 200kHz, you must consider the AH02HC high-speed variants.
• What should I check if the Status LED indicates an error?
  Verify the HDC terminal block seating and check the internal diagnostic registers via ISPSoft to identify specific channel faults.

For urgent technical assistance, reach our engineering team via WhatsApp: +86 158 8020 0923.
