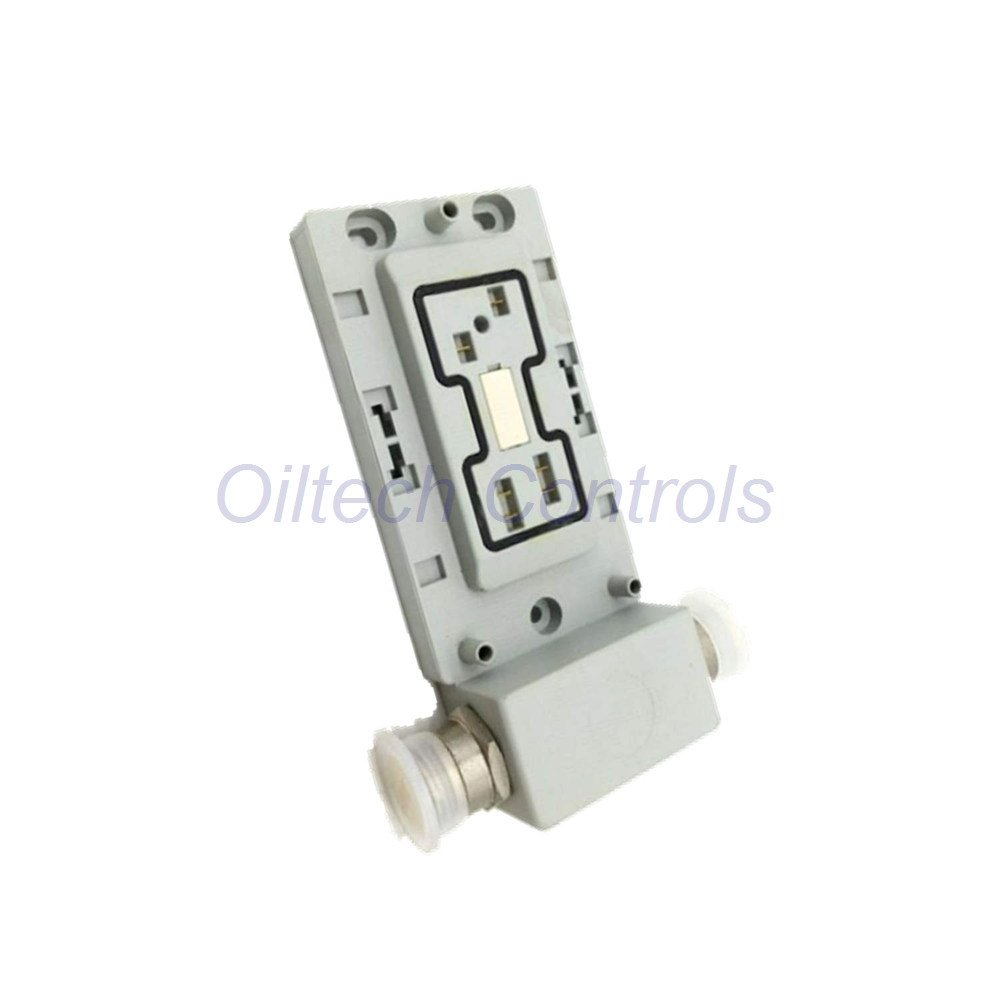

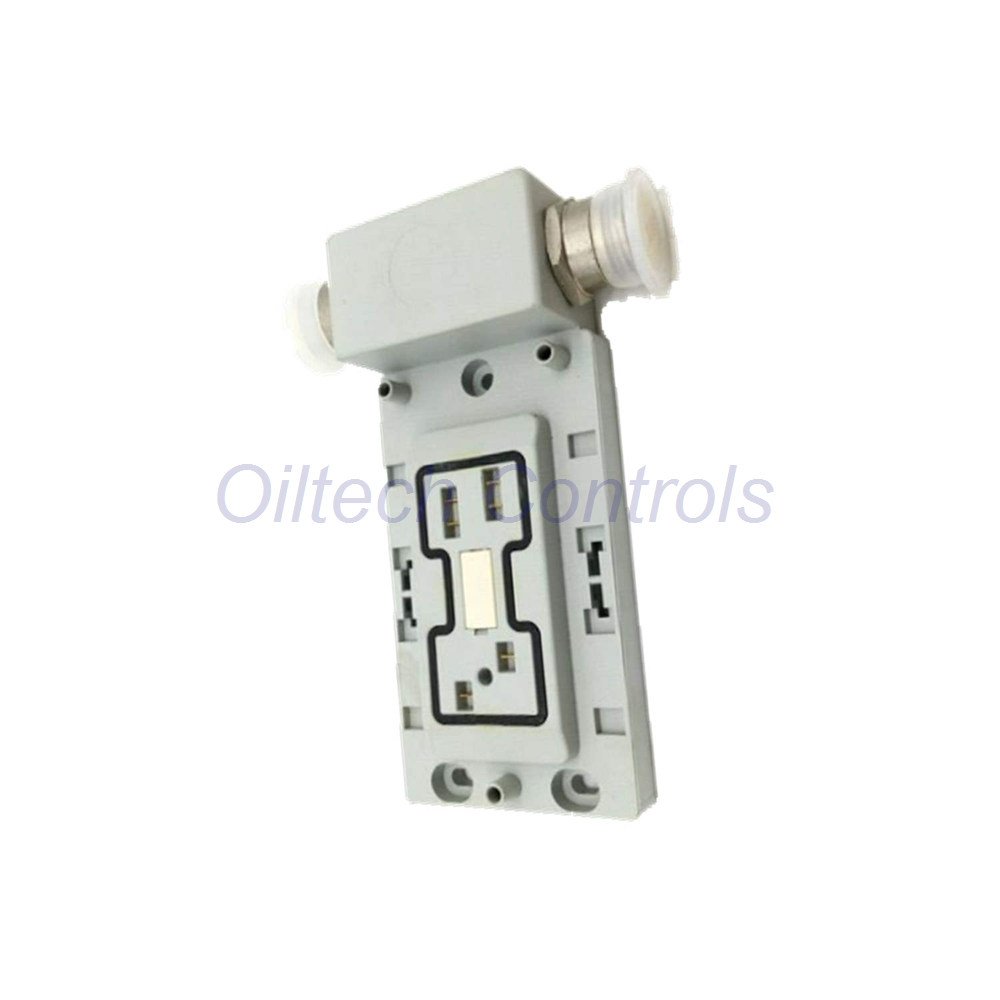

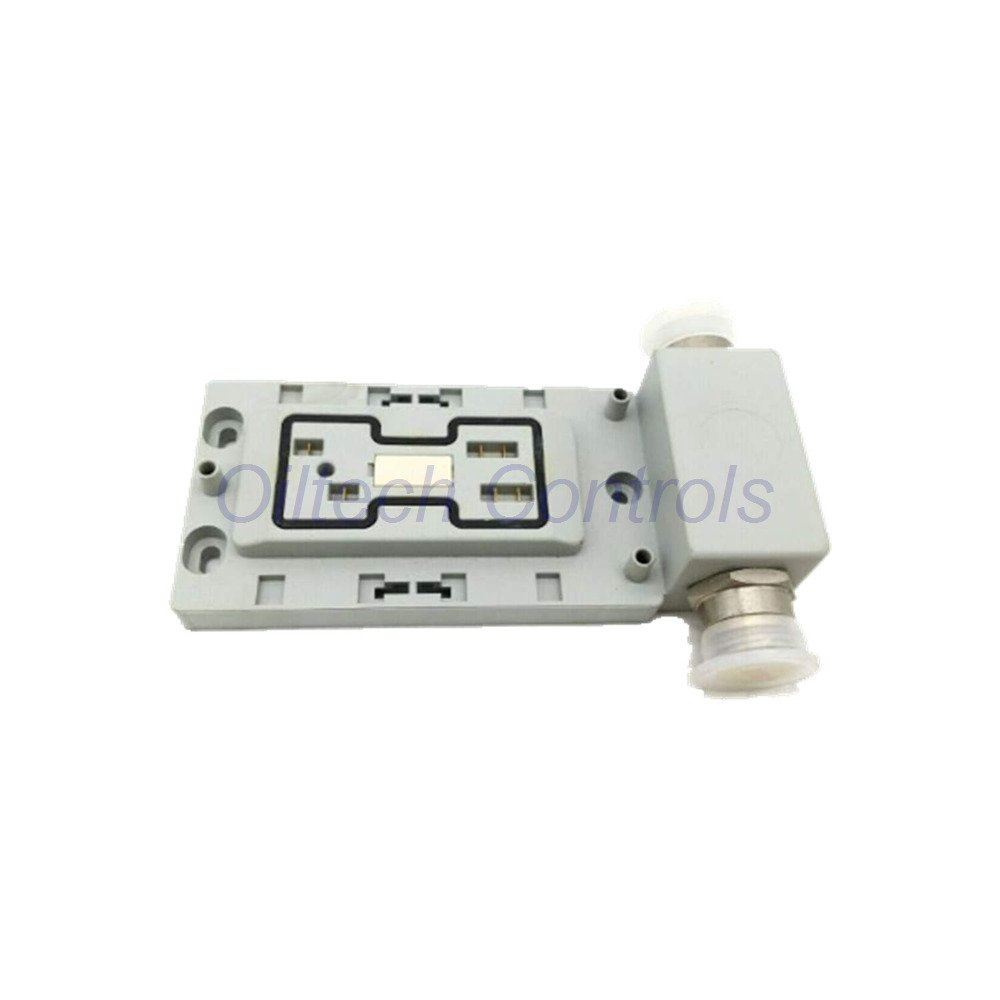

1792D-CB18 Allen Bradley ArmorBlock MaXum I/O Cable Base
The 1792D-CB18 serves as a premier connectivity solution within the Allen Bradley 1792D ArmorBlock MaXum I/O series. This 18mm cable base enables rugged on-machine wiring without the need for expensive and bulky protective enclosures. Engineering teams utilize the 1792D-CB18 to streamline signal distribution across complex industrial automation and control network systems. This hardware supports versatile mounting options to ensure maximum adaptability for various physical machine layouts and environments. Author: Oiltech Controls.
Core Technical Specifications
- Brand: Allen Bradley (Rockwell Automation)
- Model: 1792D-CB18
- Product Line: 1792D ArmorBlock MaXum I/O Series
- Base Type: 18mm Integrated I/O Cable Base
- Compatibility: Supports 4-Point and 8-Point I/O Modules
- Weight: 3.00 lbs (1.36 kg) for solid mounting
- Mounting Screws: Includes 3 Screws for high vibration stability
- Installation Mode: Supports Vertical and Horizontal orientation options
- Wiring Support: Facilitates both Trunk Cable and Drop Cable setups
Advanced Engineering Features
- The enclosureless design reduces total installation costs by allowing direct attachment to the machinery frame.
- Rigid construction provides superior environmental resistance against dust and moisture in harsh factory settings.
- Internal architecture maintains high signal resolution and minimizes electrical interference for precise data acquisition tasks.
- The compact 18mm profile optimizes physical space utilization on high-density automated production line equipment.
- This base unit accommodates diverse system expansions through its flexible 4-point and 8-point module support.
Installation and Logistics Guide
- Position the base in either vertical or horizontal orientation to match your specific cable routing path.
- Secure the unit using three mounting screws to prevent movement during high-speed machine operation cycles.
- Connect the main trunk line directly to the base to establish reliable network communication across segments.
- Integrate drop cables to link individual sensors or actuators to the primary control architecture via ports.
- Packing List: One Allen Bradley 1792D-CB18 base unit and three industrial mounting screws.
- Shipping Methods: Global express delivery available via Fedex, UPS, and DHL services.
Expert FAQ and Buying Advice
- How do I select the right module for this base?
- Evaluate your total I/O point requirements before choosing between 4-point or 8-point compatible modules.
- Does this base require an external protective box?
- No, the ArmorBlock design allows you to install the unit directly on the machine without enclosures.
- What is the best way to ensure long-term stability?
- Always tighten all three mounting screws to the recommended torque specifications for maximum mechanical vibration resistance.
