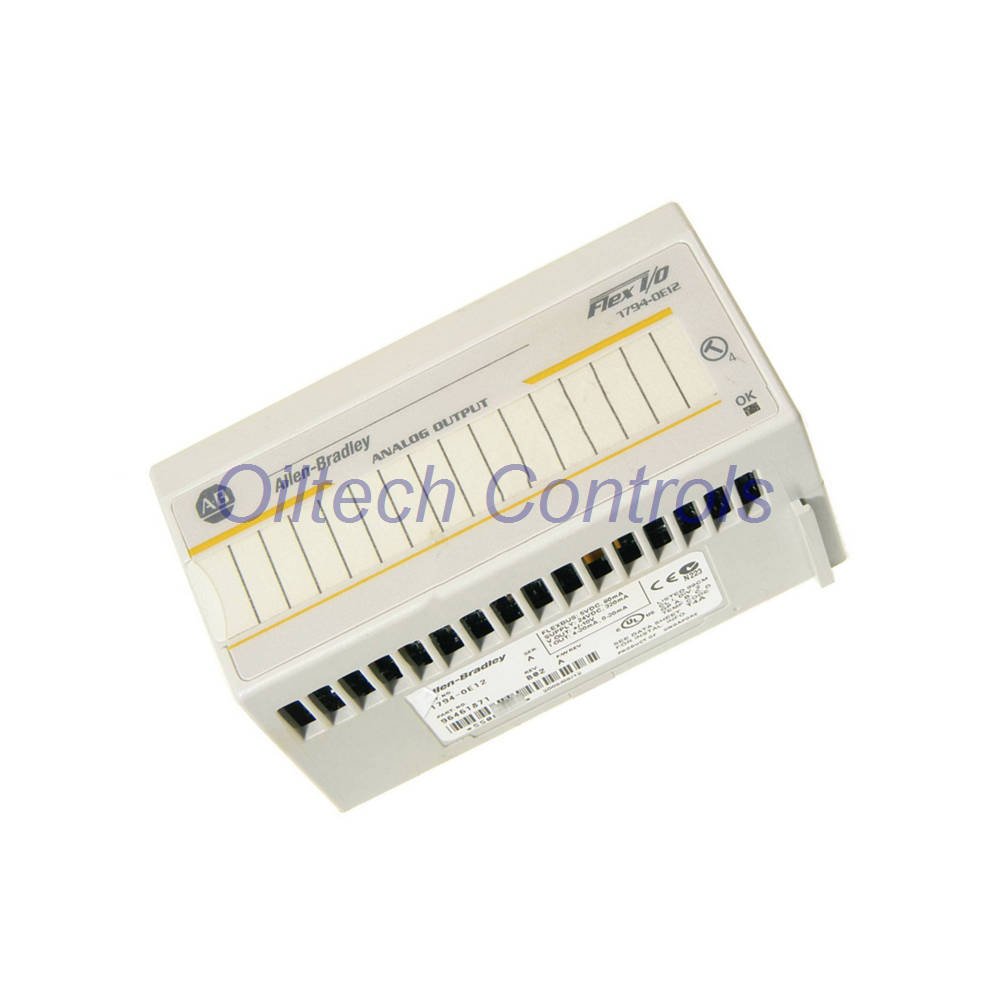

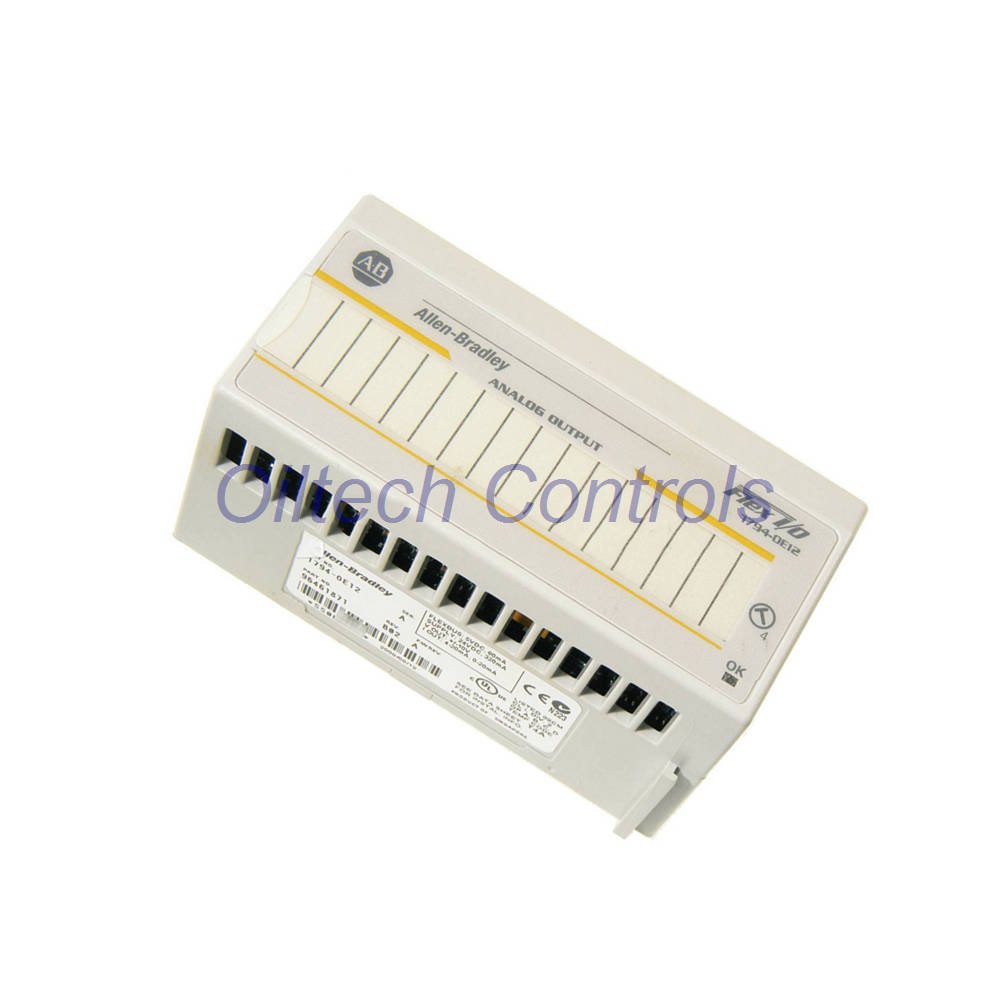

Allen-Bradley 1794-OE12 Flex IO Analog Output Module 12-Ch

Product Overview: 1794-OE12 High-Density Analog Output Module

The 1794-OE12 from Allen-Bradley is a high-density Flex IO analog output module. Specifically, it delivers twelve single-ended, non-isolated channels. Furthermore, it supports 0-20 mA, 4-20 mA, and ±10V DC signal ranges. This module converts digital data with 16-bit resolution (2’s complement format). Consequently, it provides dependable signal conversion for precise industrial automation.

Key Technical Data

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 1794-OE12
• Type: Flex IO High-Density Analog Output Module
• Output Channels: 12 single-ended, non-isolated
• Output Ranges: 0-20 mA, 4-20 mA, ±10V DC
• Resolution: Voltage: 320 µV/cnt; Current: 0.641 µA/cnt
• Accuracy: ±0.1% Full Scale @ 25°C; Drift: 0.004% FS/°C
• External Supply Range: 10.0…31.2V DC (nom. 24V DC)
• FlexBus Current: 80 mA
• Output Load (mA): 0-750Ω @ 24V DC
• Voltage Output Load: 3 mA max.

Environmental & Mechanical

• Operating Temp: -20…60 °C (-4…140 °F)
• Storage Temp: -40…85 °C (-40…185 °F)
• Relative Humidity: 5-95% non-condensing
• Vibration: 5g @ 10-500 Hz
• Operating Shock: 30 g
• Dimensions: 94 x 94 x 53.3 mm (3.7 x 3.7 x 2.1 in)
• Mounting: DIN rail (open-style enclosure)

Compatibility & Installation

• Terminal Bases: 1794-TB3G or 1794-TB3GS (keyswitch position 4)
• Adapters: Compatible with all 1794 Flex IO adapters
• Wiring: Determined by installed terminal base
• Isolation: 50V continuous (basic insulation); no channel-to-channel isolation
• Install inside an enclosure for industrial protection.

Diagnostics & Indicators

• LED Indicator: 1 green/red power/status LED
• Group diagnostic LEDs for quick status checks
• Outputs default to 0 mA until module configuration is complete.
• No field calibration is required—reliable out-of-box performance.

Typical Applications

• Process control loops (flow, pressure, level)
• Drive and actuator control with analog signals
• High-density analog output for PLC/DCS systems
• Industrial automation retrofits and upgrades
• Test stands and simulation systems

Certification & Compliance

• UL, CE, and cULus listed (typical for Flex IO series)
• Designed for industrial control environments
• Open-type enclosure for panel installation
• Meets RoHS and WEEE standards

Why Buy From Oiltech Controls?

• 15+ years of experience in industrial automation spares.
• Global shipping support with FedEx, UPS, DHL.
• Tested industrial surplus and refurbished options available.
• 12-month warranty on every product.
• Technical verification performed before shipment.
• Expert support for obsolete control systems, including Modicon Quantum.

Package & Delivery

• Package Includes: 1794-OE12 module only (terminal base sold separately).
• Shipping: FedEx, UPS, or DHL express.
• Warranty: 12 months from invoice date.

Frequently Asked Questions (FAQ)

Q: Does the 1794-OE12 require calibration?
A: No, it does not require field calibration.

Q: What is the output load capability for current?
A: It supports 0-750Ω resistive load at 24V DC.

Q: Is this module isolated?
A: It has 50V continuous isolation (basic) but no channel-to-channel isolation.

Q: Can I use this with a 1794-TB3 terminal base?
A: Yes, it is compatible with 1794-TB3G and 1794-TB3GS bases.

Q: What is the FlexBus current draw?
A: The module draws 80 mA from the FlexBus.
