Allen Bradley 20-750-2262D-2R I/O Module | PowerFlex 753 AC I/O

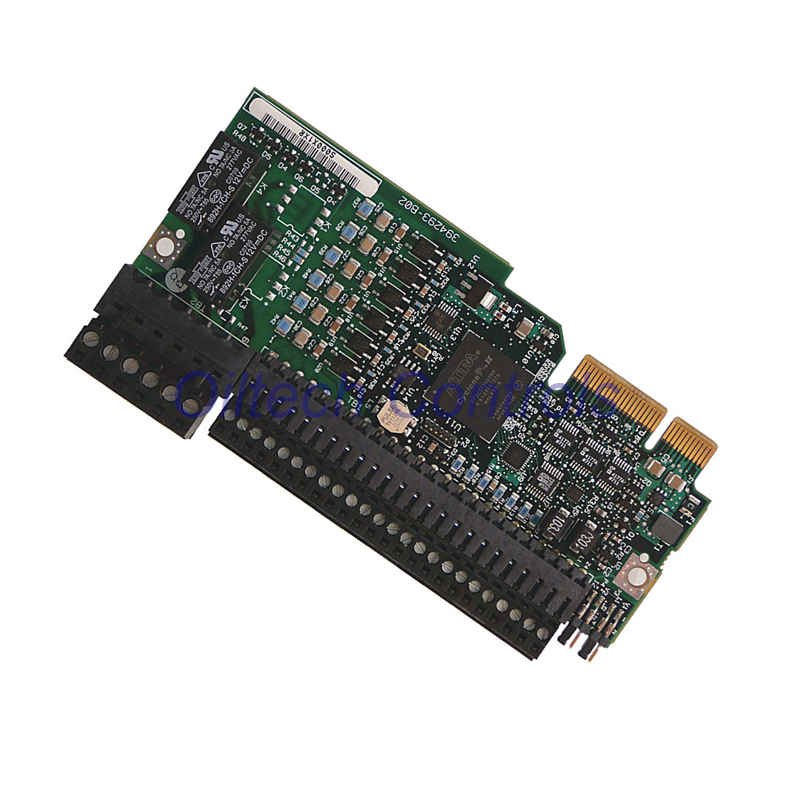

Allen Bradley 20-750-2262D-2R PowerFlex 753 I/O Module

The 20-750-2262D-2R is an AC I/O option module for PowerFlex 753 drives.
It offers stable signal control and flexible I/O in compact drive systems.

Core Function Overview

• Expands I/O capability of PowerFlex 750 series drives.
• Supports mixed signal control in one module.
• Designed for drive-based automation tasks.

Electrical Characteristics

• Rated supply voltage: 120V AC.
• AC input tolerance: ±10%.
• Power consumption: approx. 18 VA.
• Frequency range: 50/60 Hz.

I/O Configuration

• 6 digital inputs.
• 2 analog inputs (voltage or current).
• 2 analog outputs.
• 2 relay outputs for load control.

Control & Signal Modes

• Supports 3-wire control logic.
• Voltage input mode supported.
• Current input mode supported.
• Fast response for drive commands.

Network & Communication

• Compatible with Ethernet/IP networks.
• Valid communication port: Port 7.
• Stable data exchange with drive system.

Environmental Limits

• Operating temperature: 0 to 40 °C.
• Storage temperature: -40 to 70 °C.
• Maximum humidity: 80% non-condensing.
• Use in clean, non-corrosive air.

Mechanical Details

• Net weight: 5.00 lbs (2.27 kg).
• Compact option module format.
• Direct mount on PowerFlex 750 drives.

Main Product Advantages

• Combines analog, digital, and relay I/O.
• Reduces wiring and panel space.
• Ideal for speed and torque control tasks.
• Reliable performance under load.

Typical Use Scenarios

• Motor speed regulation.
• Process automation systems.
• Material handling equipment.
• OEM drive panels.

Warranty & Logistics

• 12-month standard warranty.
• Worldwide shipping via FedEx.
• UPS and DHL available.

FAQ

• Is this module only for PowerFlex 753 drives?
• It is designed for PowerFlex 750 series and works best with 753.
• Can analog inputs accept current signals?
• Yes, both voltage and current signals are supported.
• Is Ethernet/IP required for operation?
• No, it is optional but recommended for monitoring.
• What should I check before buying?
• Confirm drive model, voltage, and I/O count.
• Is this suitable for harsh environments?
• It should be used in clean, non-corrosive areas.
