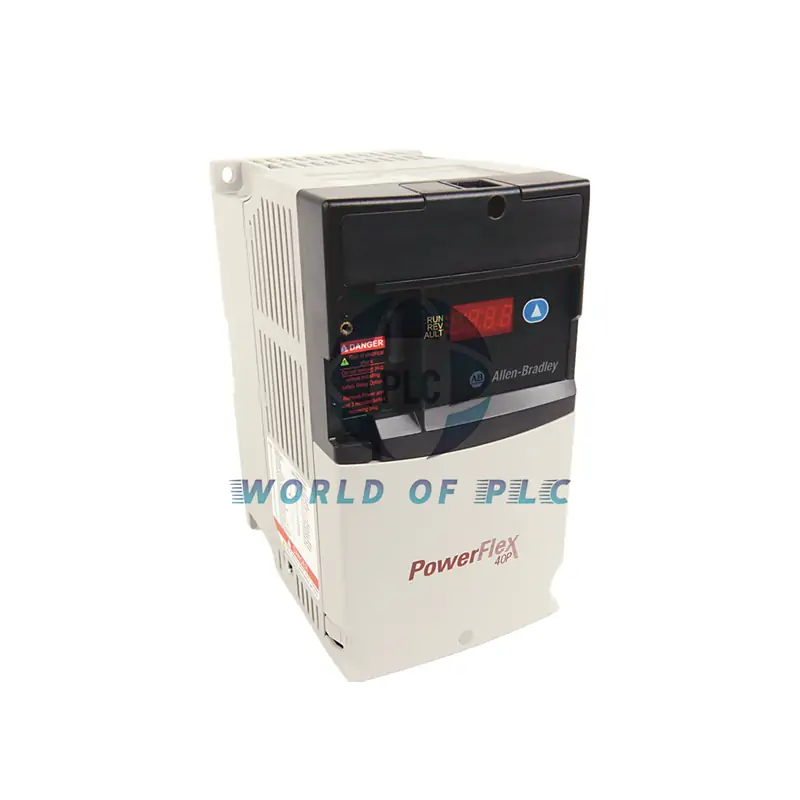

Allen-Bradley 22D-B8P0N104 PowerFlex 40P AC Drive

Allen-Bradley 22D-B8P0N104 PowerFlex Drive (2HP, 240V)

Precision Motor Control for Industrial Applications

The 22D-B8P0N104 delivers reliable speed control for 3-phase motors. Ideal for pumps, conveyors, and machine tools.

Key Features

• 2 HP output power (1.5 kW)
• Panel mount design saves space
• Simple 4-digit display with status LEDs
• Works with 200-240V AC systems
• Built-in safety protections

Complete Specifications

• Model: 22D-B8P0N104
• Input: 240V AC (3-phase, 50/60Hz)
• Output: 8.0A, 2HP
• Frame Size: B
• Mounting: Panel (IP20)
• Dimensions: 3.94″ x 9.61″ x 6.34″
• Weight: 5.5 lbs
• Temperature Range: -10°C to 50°C
• Altitude Limit: 1000m max
• I/O Ports: 7 digital, 2 analog

What’s Included

• Drive unit with display
• Mounting hardware
• Instruction manual
• 12-month quality warranty

Shipping Options

• FedEx Standard (3-5 business days)
• UPS 2-Day Air
• DHL Express International

Frequently Asked Questions

• Q: What’s the maximum cable length?
  A: Up to 50ft (15m) for control wiring.
• Q: Can I use this in a dusty environment?
  A: Only with additional enclosure (IP20 basic).
• Q: Does it need special software?
  A: No, programmable via built-in keypad.
• Q: What motors are compatible?
  A: 3-phase induction motors up to 2HP.
• Q: How do I get technical support?
  A: Contact our engineers anytime.
