Allen-Bradley 32-Point DC Output Module | SLC 500 Series 1746-OB32E

Allen-Bradley 1746-OB32E SLC 500 32-Point DC Output Module

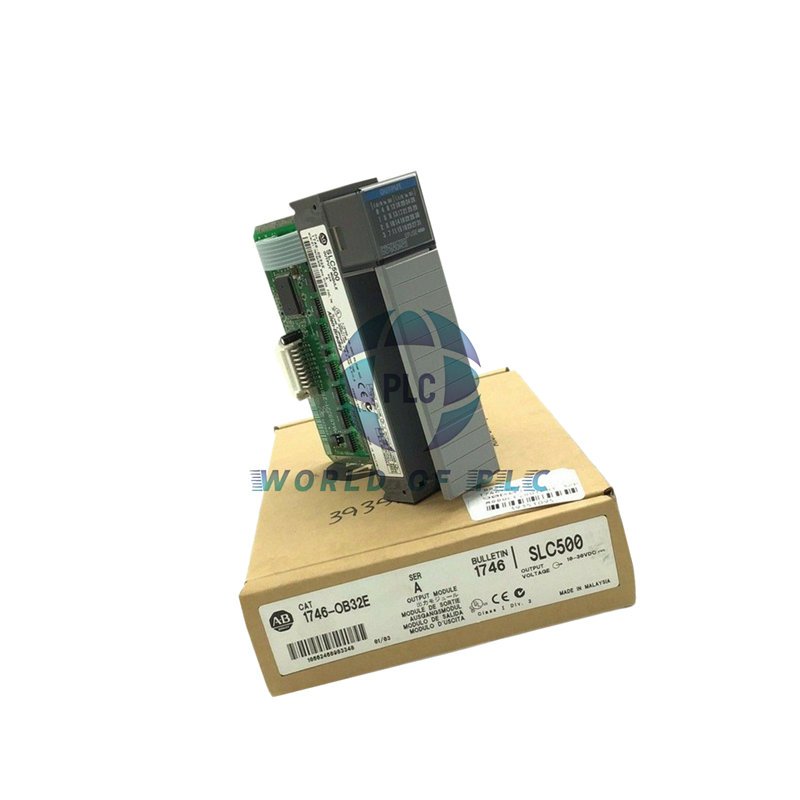

The Allen-Bradley 1746-OB32E is a 32-point 24V DC digital output module from the SLC 500 series by Rockwell Automation. It provides high-density output for industrial control applications with built-in electronic protection.

Technical Specifications

• Brand & Model: This Allen-Bradley 1746-OB32E module offers thirty-two 24V DC output channels.
• Output Specifications: Each output handles 0.5A or 0.25A with a total module current of 8A.
• Voltage Range: It operates within a wide DC voltage range from 10 to 30 volts.
• Response Time: The module features a fast step response of 60 ms in and 2.5 ms out.
• Signal Delay: Turn-on delay is 0.1 ms while turn-off delay is 1.0 ms.
• Protection Features: It includes electronic protection against short circuits and overloads.
• Thermal Management: The module auto-resets after thermal cut-out activation.
• Installation: You can install this module in any SLC 500 fixed or modular chassis.
• Visual Indicators: LED status lights show the condition of each output point.
• Wiring: Use color-coded removable terminal blocks for easy connections.
• Environmental Rating: Operating temperature ranges from -13° to 140° Fahrenheit.
• Vibration Resistance: It withstands 2g operating vibration from 10-500 Hz.
• Shock Tolerance: The module can handle 30g operating shock impacts.
• Backplane Power: It consumes 190 mA at 5V DC from the backplane.
• Compatibility: Works seamlessly with all SLC 500 processors and systems.
