Allen-Bradley 1756-OBV8S ControlLogix Safety Output Module – Reliable & Fast-Response 8-Channel DC Solution

Description

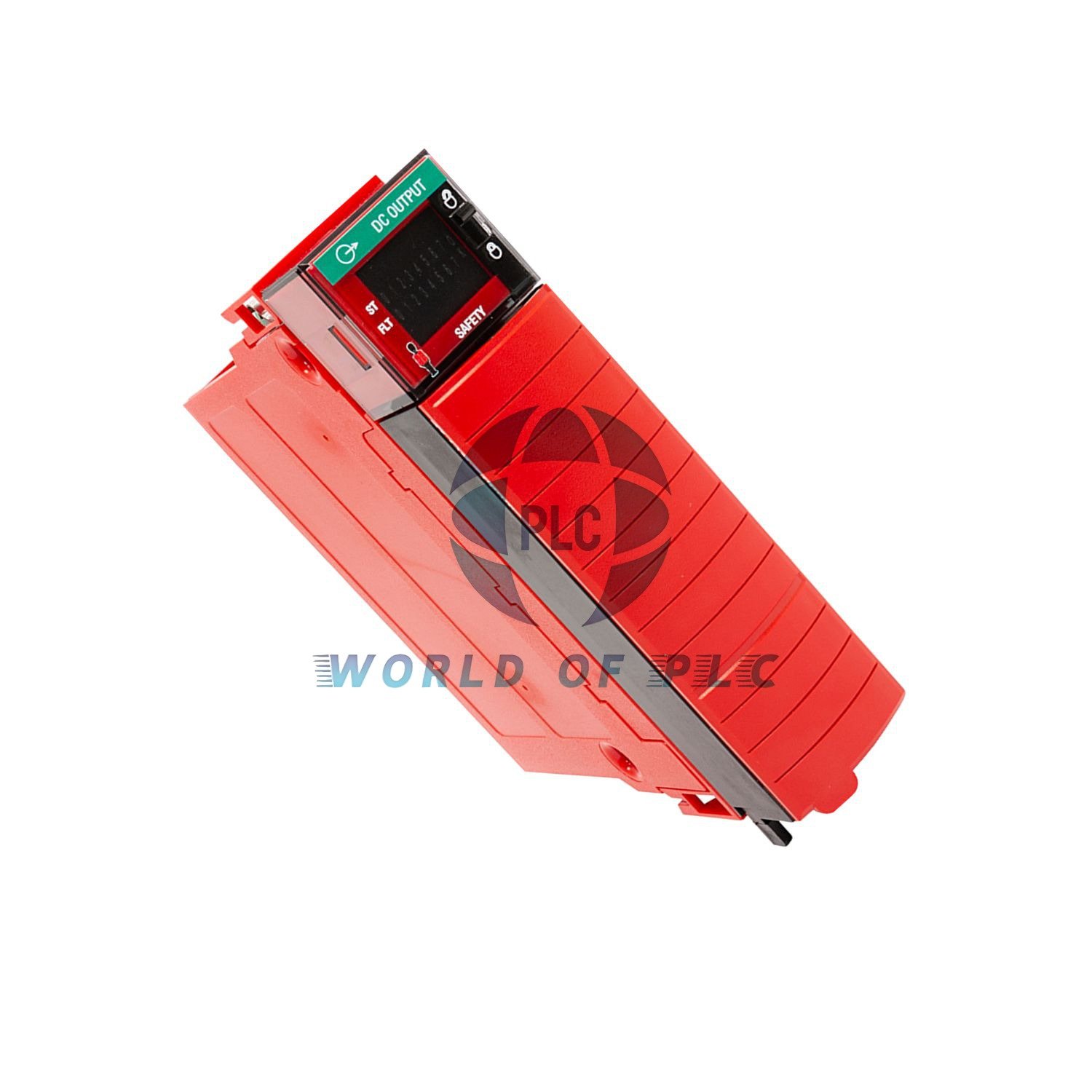

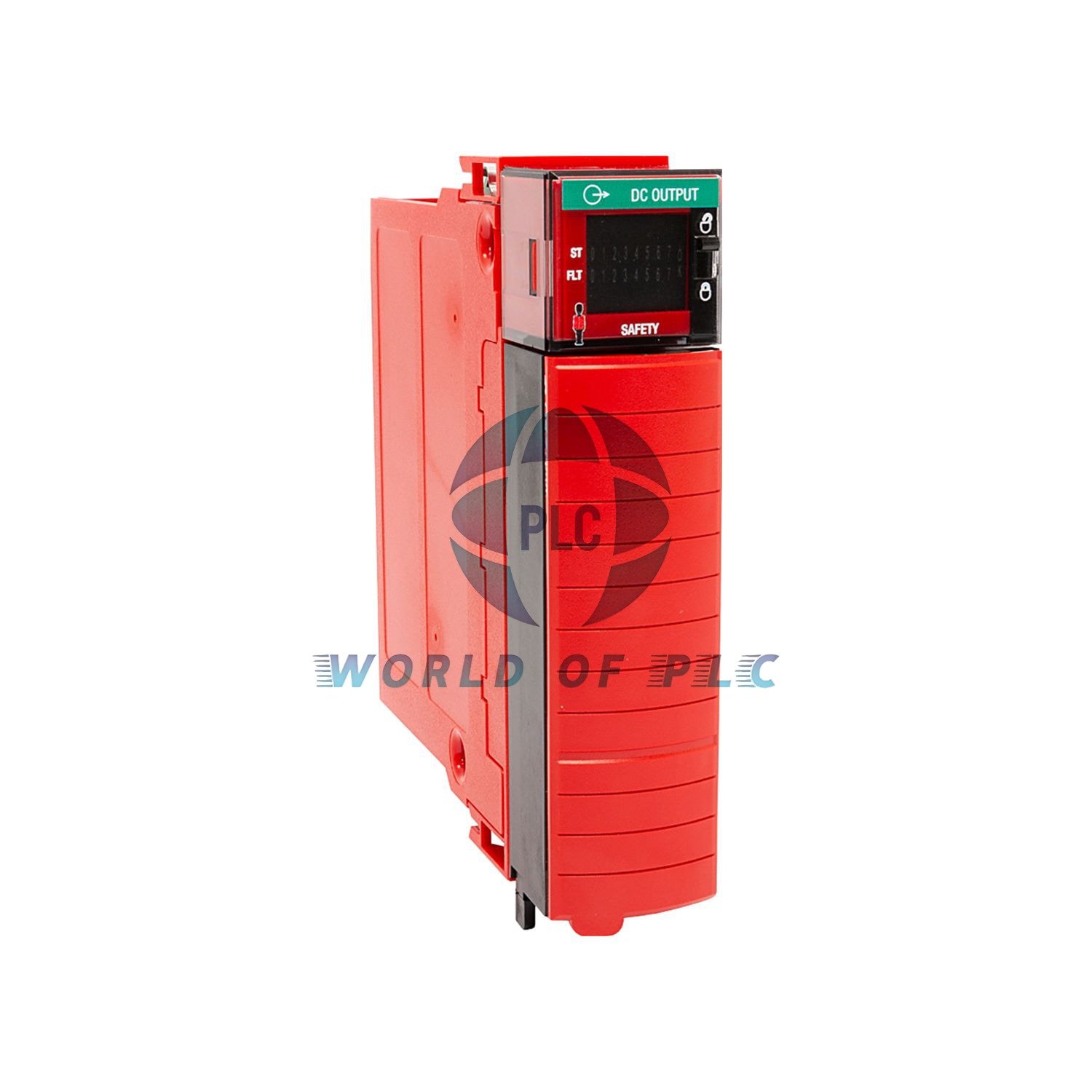

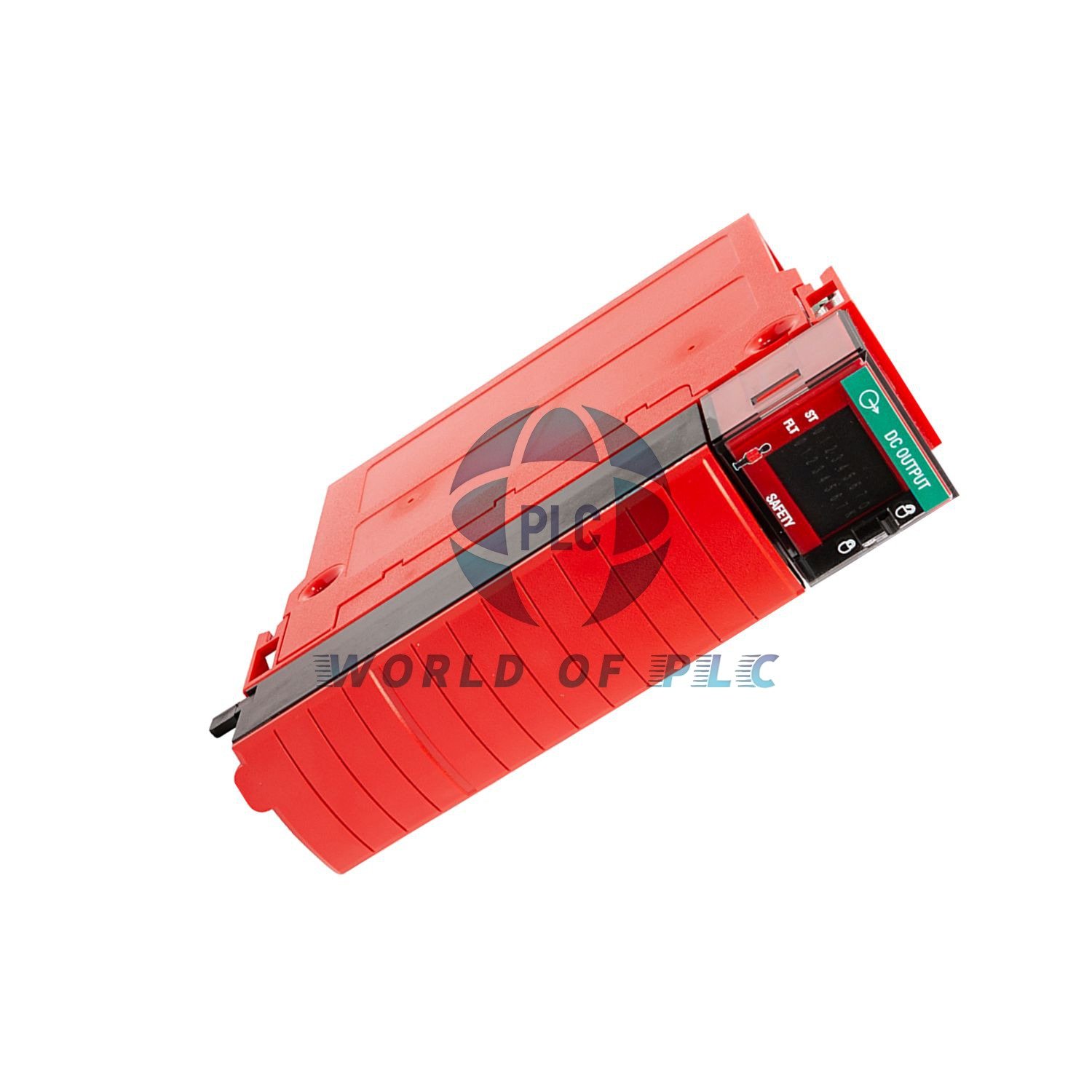

The Allen-Bradley 1756-OBV8S is a safety-rated output module for the ControlLogix platform. It provides 8 channels of 10-30V DC outputs with 0.5A per point, ideal for critical automation applications. Designed for fast response, it includes short-circuit and overcurrent protection.

Technical Data

• Brand: Allen-Bradley / Rockwell Automation
• Model: 1756-OBV8S
• Series: ControlLogix
• Type: 8-Channel Safety Output Module
• Voltage Range: 10-30V DC
• Current per Output: 0.5A max
• Response Time: Ultra-fast for safety systems
• Operating Temperature: 0°C to 60°C
• Connector: 20-Pin
• Weight: 0.29 kg

Installation & Compatibility

Mounts directly into ControlLogix chassis. Compatible with Logix5000 controllers. Requires 20-pin connector for wiring.

Protection & Reliability

Built-in short-circuit and overcurrent protection ensures safe operation in industrial environments.

Package Includes

• 1x 1756-OBV8S Module
• Installation Guide

Warranty & Shipping

12-month warranty. Ships via FedEx, UPS, or DHL for fast delivery.

Download Resources

For detailed specs, download the 1756-OBV8S manual here.
