Allen-Bradley | ControlLogix Output Module 1756-OW16IK

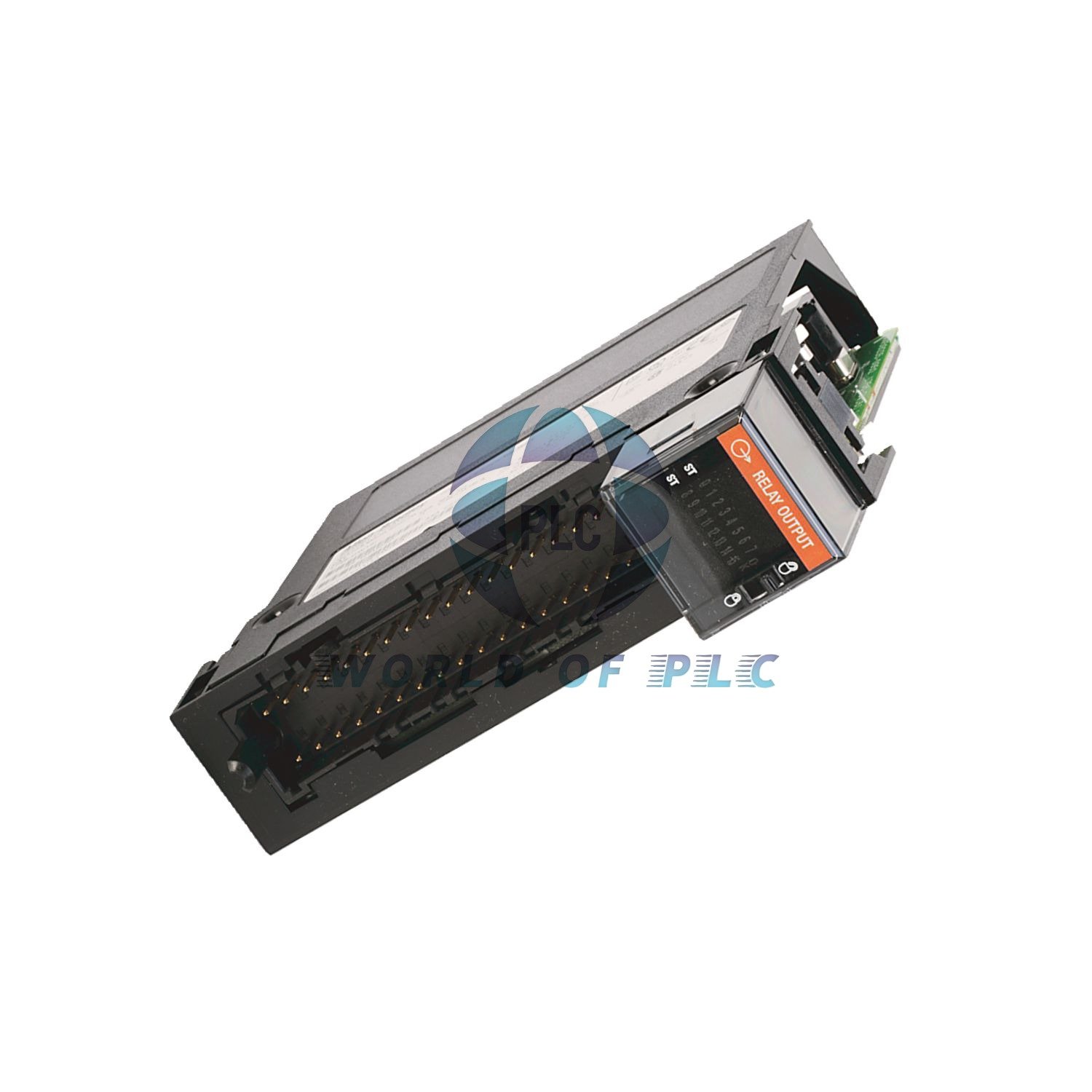

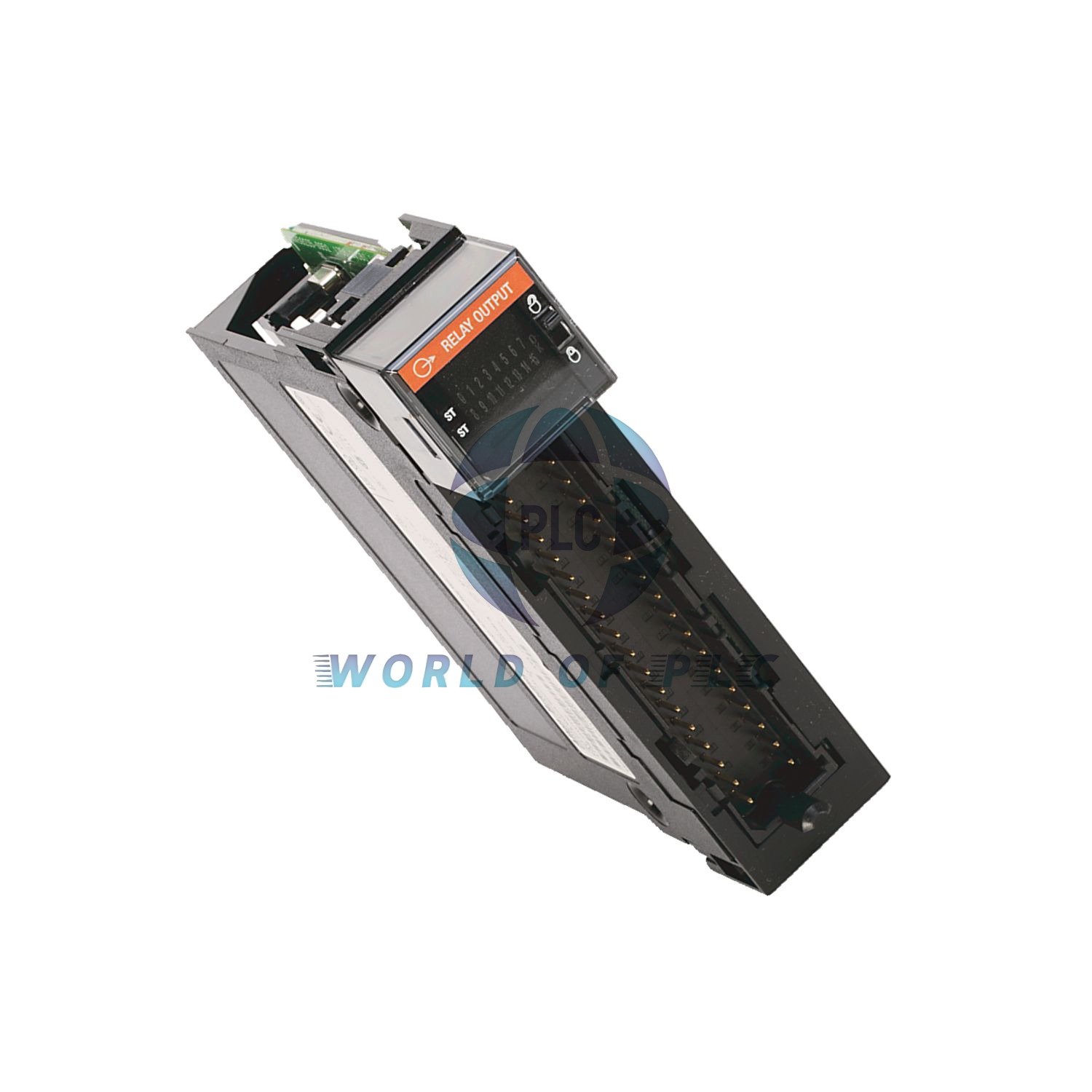

Allen-Bradley 1756-OW16IK – Versatile 16-Channel Isolated Relay Module

Key Advantages

• 16 fully isolated relay outputs
•  Wide 10-265V AC / 5-150V DC range
•  Handles 2A per contact (resistive)
•  Fast 10ms response time
•  Built for harsh conditions (conformal coated)

Technical Specifications

• Model: 1756-OW16IK (ControlLogix Series)
• Contact Type: 13 N.O. (Normally Open)
• Current Ratings: 2A (30V DC), 0.5A (125V DC), 1.5A (120V AC)
• Isolation: 250V continuous
• Power Use: 150mA @ 5V/24V DC
• Contact Life: 300k operations (resistive)
• Temp Range: 0°C to 60°C
• Weight: 0.414 kg

Reliability Features

• 🛡️ 300,000 cycle contact life
• 🛡️ Withstands 240V AC loads
• 🛡️ Real-time diagnostics included

Your Assurance

• 🔒 12-month performance guarantee
• ✈ Worldwide shipping available
• ⚡ Compatible with Logix5000 controllers

Technical FAQs

• Q: What’s the maximum AC voltage supported?
  A: 265V AC at reduced current ratings.
• Q: Can I mix AC and DC loads on one module?
  A: Yes, each channel is independently isolated.
• Q: What’s the minimum load current required?
  A: 10mA per channel for reliable operation.
• Q: Is hot-swapping supported?
  A: Possible but not recommended due to arcing risk.
• Q: What terminal blocks are compatible?
  A: 1756-TBCH and 1756-TBS6H removable blocks.

Resources

• 📚 Download 1756-OW16IK full specifications
