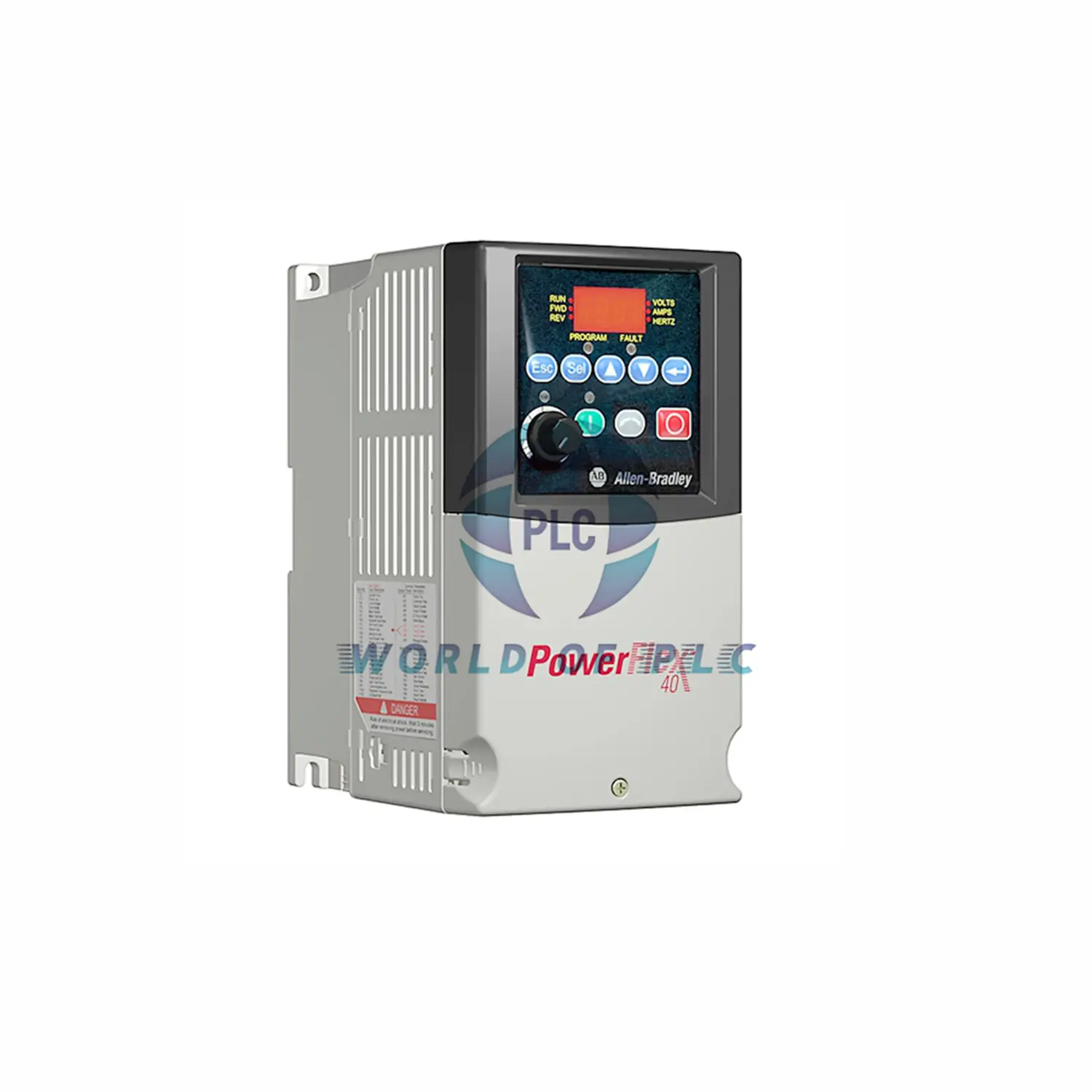

Allen-Bradley PowerFlex 40P AC Drive 22B-D4P0F104

Allen-Bradley 22B-D4P0F104 PowerFlex 40 Drive – 2HP Industrial Motor Control

Key Features

• 2HP (1.5kW) motor power control
• 480V AC 3-phase input power
• 4A output current for reliable performance
• Secure flange mounting design
• Built-in RS-485 communication
• Compact IP20 enclosure

Technical Specifications

• Voltage Range: 380-480V AC (±10%)
• Operating Temp: -10°C to 50°C (with clearance)
• Storage Temp: -40°C to 85°C
• Mounting Clearance: 4.7″ top/bottom, 1″ between drives
• Safety Features: MOV ground protection
• Capacitor Discharge: Minimum 3 minutes required
• Humidity Range: 0-95% non-condensing
• Control Method: Sensorless Vector Control

Professional FAQs

• How long should I wait before servicing?
• Wait at least 3 minutes after power-off for capacitor discharge.
• Can I mount this horizontally?
• No, vertical mounting is required for proper cooling.
• What’s the minimum clearance needed?
• 4.7″ above/below, 1″ between units recommended.
• Is this drive waterproof?
• No, IP20 means basic protection only – keep dry.
• Can I use this in high humidity?
• Yes, up to 95% non-condensing humidity.
