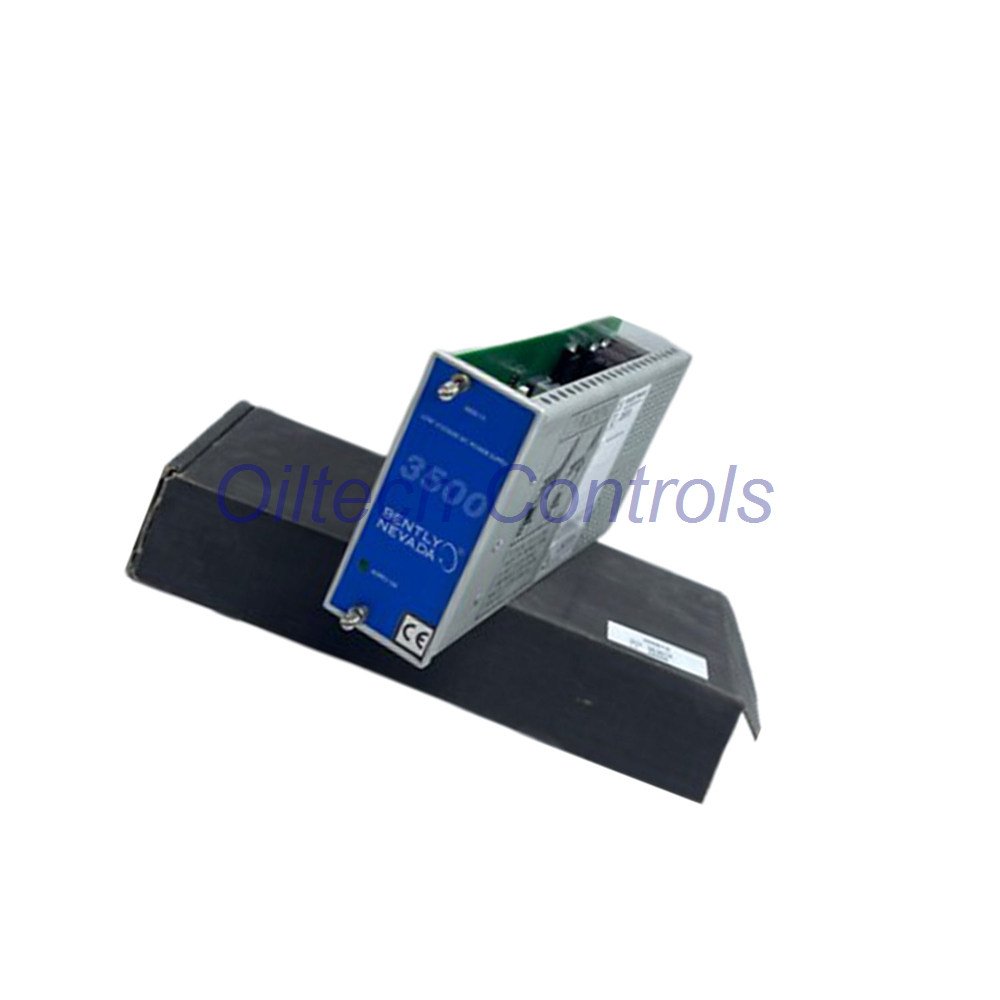

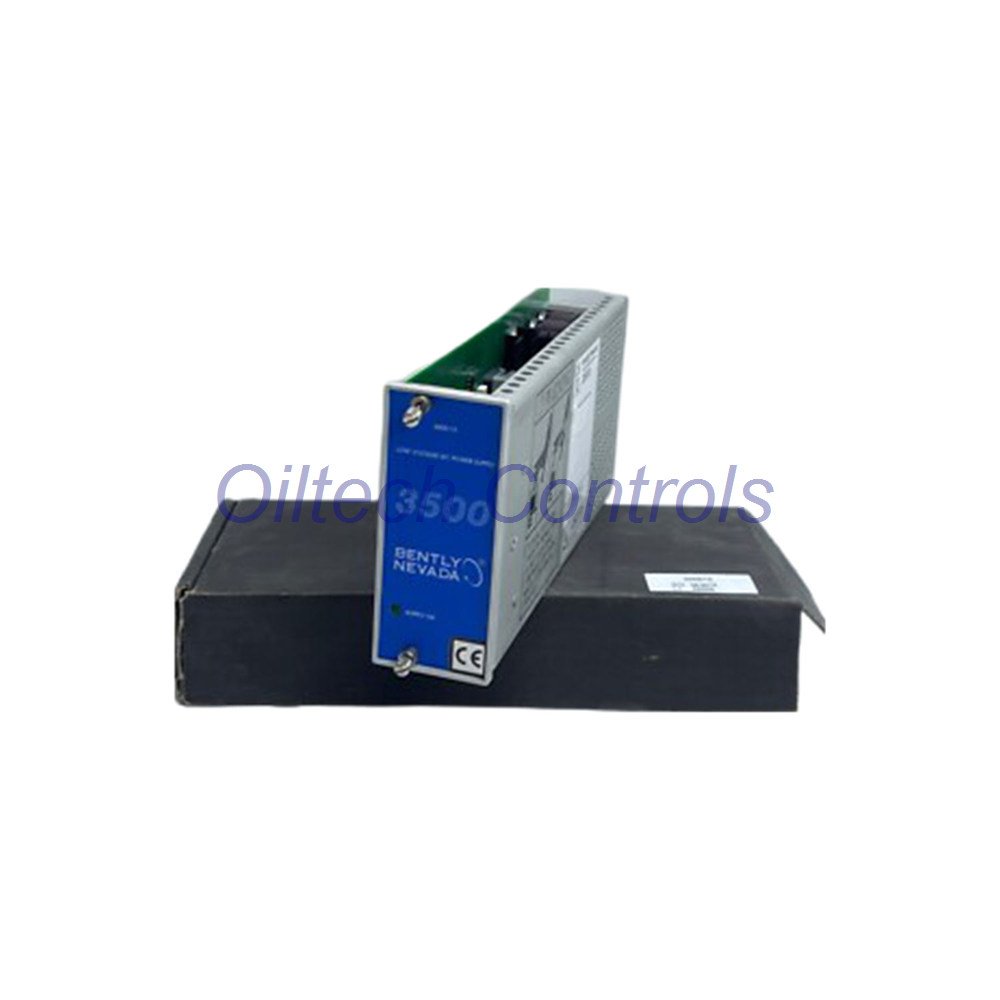

Bently 3500/15 3500/15-05-05-00 Power Supply Module Industrial Reliable Power

Product Snapshot

• Model: 3500/15-05-05-00
• Part Number: 106M1079-01
• Type: Power Supply Module
• Designed for reliable rack power delivery.
• Supports AC and DC input options.
• High stability output ensures system uptime.
• Works with 3500/15 system.

Key Advantages

• Wide voltage compatibility
• Fast protection response
• LED status indication
• Stable current output
• Flexible configuration for many systems

Electrical Performance

• AC Input Voltage: 85 to 264 Vac
• Nominal Voltage: 110 to 220 Vac
• Frequency: 47 to 63 Hz
• High DC Input: 88 to 140 Vdc
• Low DC Input: 20 to 30 Vdc
• Peak Voltage: 120 to 373 Vac
• AC Current Draw: 2.8 A max
• High DC Current: 2.5 A max
• Low DC Current: 11.0 A max
• Protection: Over-voltage fuse protection
• Undervoltage: Safe operation

Output & Indicators

• Front LED shows power status
• Stable output for full rack
• Low ripple and noise
• Supports continuous operation

Mechanical Details

• Module Size: 120.7 × 50.8 × 251.5 mm
• PIM Size: 120.7 × 25.4 × 114.3 mm
• Module Weight: 1.39 kg
• PIM Weight: 0.34 kg
• Compact rack design

Configuration Breakdown

• Main Model: 3500/15 – AA – BB – CC
  • AA: Top Slot Power
    • 03 → Legacy High DC
    • 04 → Legacy Low DC
    • 05 → Universal AC
    • 06 → High DC
    • 07 → Low DC
  • BB: Bottom Slot Power
    • 00 → No supply
    • 03 → Legacy High DC
    • 04 → Legacy Low DC
    • 05 → Universal AC
    • 06 → High DC
    • 07 → Low DC
  • CC: Certification
    • 00 → None
    • 01 → CSA Class 1 Div 2
    • 02 → ATEX Zone 2

Application Use

• Industrial monitoring systems
• Rotating machinery protection
• Oil and gas plants
• Power generation systems
• Process automation racks

Packing & Warranty

• 1 × 3500/15-05-05-00
• 1 × Power input module
• Manual included
• 12-month warranty
• Shipping: FedEx, UPS, DHL

FAQ

• Can this module support dual power input?
• Yes, top and bottom slots allow dual configuration.
• How to choose AC or DC type?
• Select based on site power supply type.
• Is this module safe for unstable voltage?
• Yes, built-in protection handles voltage changes.
• What happens during over-voltage?
• The fuse will open to protect the system.
• What should be checked before buying?
• Check rack type, voltage, and certification needs.
