Bently Nevada 11 mm Proximity Probe 330702-00-10-50-12-00

Bently Nevada 3300 XL 11mm Proximity Probe – High-Performance Vibration Monitoring

Premium quality proximity probe designed for precise machinery vibration and position measurement. Ideal for industrial applications requiring durability and accuracy.

Product Description

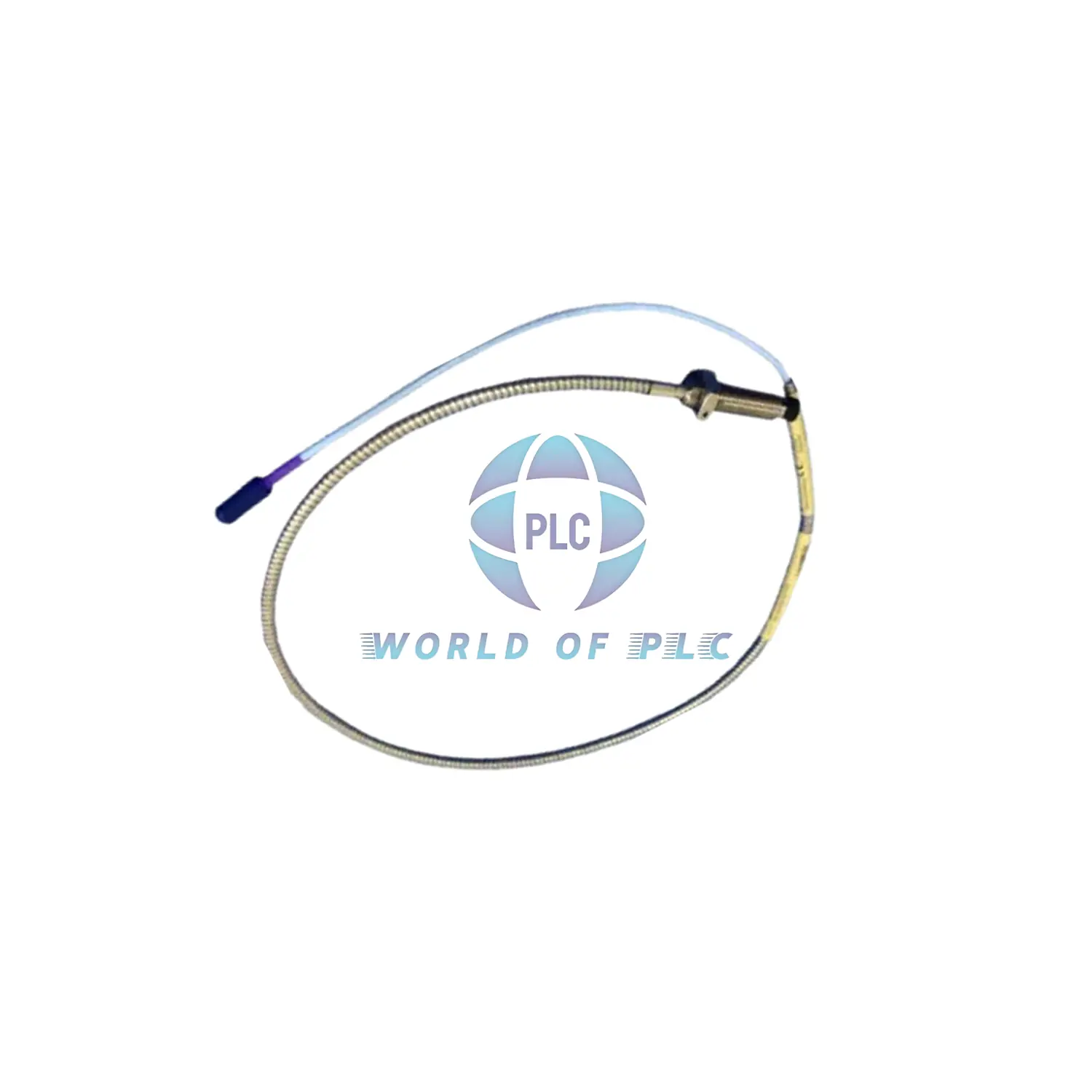

The Bently Nevada 3300 XL 11mm Proximity Probe (P/N: 330702-00-10-50-12-00) ensures reliable monitoring in harsh environments. Features a 5-meter FluidLoc cable with Miniature ClickLoc connector, 304 stainless steel case, and PPS tip for chemical resistance. Compatible with 5-meter Proximitor sensors only.

Technical Data

• Brand: Bently Nevada
• Model: 3300 XL 11mm Probe
• Full Suffix: 00-10-50-12-00
• Thread: 1/2-20 UNF
• Cable Length: 5.0 meters (16.4 ft)
• Connector: Mini coaxial ClickLoc
• Resistance: 7.2Ω ±0.8 (center to outer conductor)
• Temperature Range: -51°C to +177°C
• Max Thread Torque: 45.2 N•m (400 in•lb)
• Cable Insulation: FEP, 75Ω triaxial

Key Features

• Robust Construction: AISI 304 SST case & PPS tip for corrosion resistance.
• Wide Temperature Range: Operates in extreme conditions (-51°C to +177°C).
• Secure Connection: ClickLoc connector ensures vibration-proof coupling.
• Flexible Armored Cable: FluidLoc design resists fluids and abrasion.

Installation Guide

• Max thread engagement: 0.750 in (1/2-20 UNF).
• Recommended torque: 15.2 N•m (133 in•lb).
• Min bend radius: 25.4 mm (1.0 in).
• Avoid temperatures below -34°C to prevent seal damage.

Compatibility

Works exclusively with 5-meter Proximitor sensors. Not compatible with 1m/9m systems.

Certifications

Standard model (no agency approvals). Contact factory for customized certifications.

Package Includes

• 1x 3300 XL 11mm Probe
• Shipping weight: 0.17 kg

Shipping & Warranty

Delivered via FedEx/UPS/DHL. 12-month warranty
