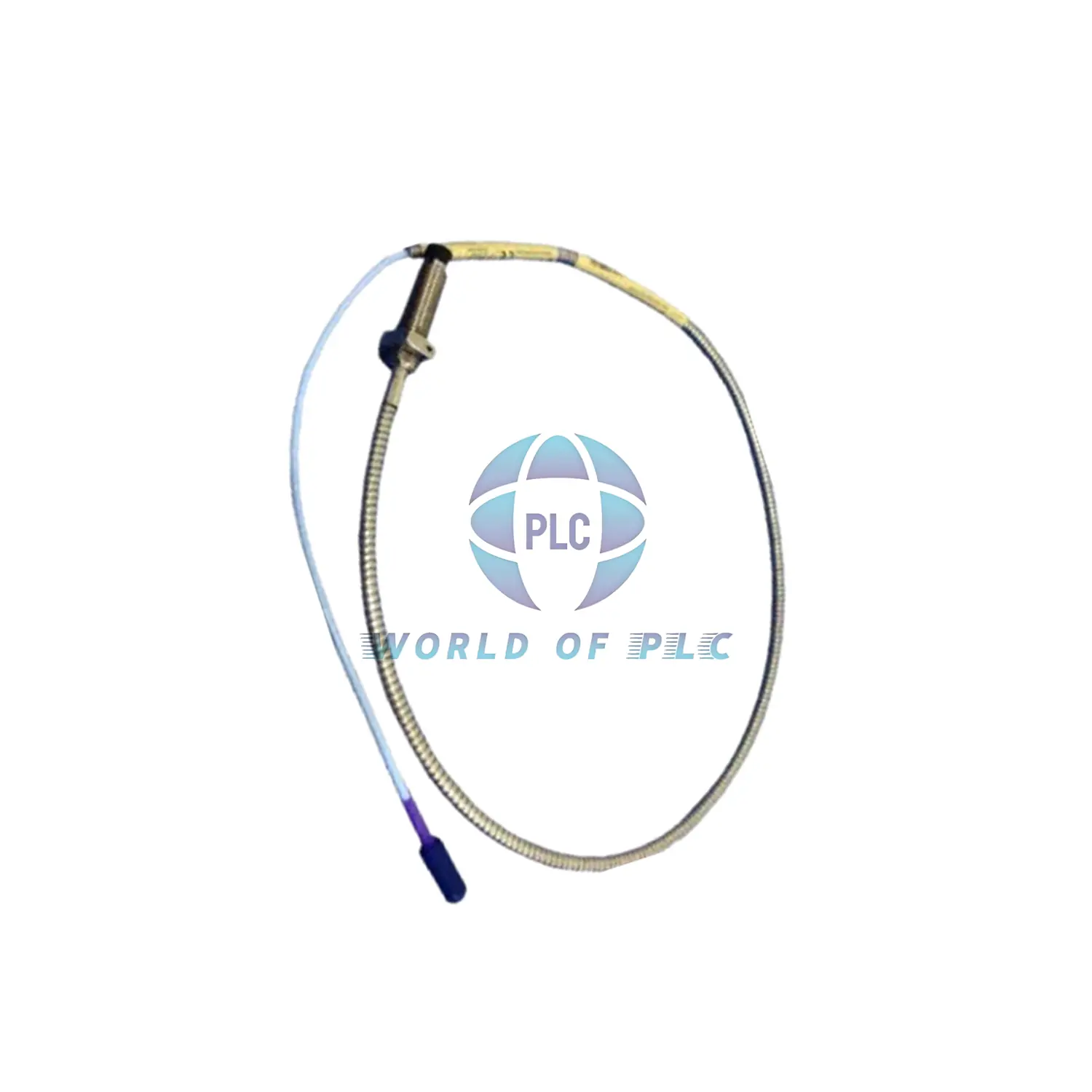

Bently Nevada 11 mm Proximity Probe 330702-00-24-50-01-00

Bently Nevada 330702-00-24-50-01-00 – 5m Proximity Monitoring Solution

Core Features

• ✔️ 11mm industrial vibration probe
• ✔️ 5m (16.4ft) standard triaxial cable
• ✔️ 2.4″ stainless steel armored body
• ✔️ ClickLoc connector with protector
• ✔️ Made in USA quality

Model Number Decoded

text
┌─────────────┬────┬────┬────┬────┬────┐
│ 330702 │ 00 │ 24 │ 50 │ 01 │ 00 │
├─────────────┼────┼────┼────┼────┼────┤
│ Base Model │ 0″ │2.4″│5m │Std │No │
│ 11mm Armored│Unth│Case│Cable│Conn│Appr│
└─────────────┴────┴────┴────┴────┴────┘

Technical Specifications

• Electrical: 75Ω impedance, 7.2Ω ±0.8 resistance
• Mechanical:
• 1/2-20 UNF thread
• Max torque: 400 in-lb
• Min bend radius: 1.0″
• Environmental:
• Temp range: -51°C to +177°C
• Avoid < -34°C before installation
• Weight: 0.17kg (0.37lbs)

Compatibility Note

⚠️ Designed exclusively for use with 5m Proximitor Sensors

Installation Guide

Recommended torque: 133 in-lb

Connector tightening: Finger tight only

Cable management: Maintain 1″ bend radius

Storage: Keep above -34°C

Customer Assurance

🔒 12-month product warranty

🚚 Fast global shipping (FedEx/UPS/DHL)

Technical FAQs

• What’s the difference between FluidLoc and standard cable?
  Standard cable lacks FluidLoc’s oil resistance but costs less.
• Can I use this with 1m or 9m Proximitors?
  No, must pair with matching 5m Proximitor.
• How accurate is the vibration measurement?
  ±5% when properly calibrated with monitoring system.
• What’s the cable jacket material?
  FEP (fluorinated ethylene propylene) insulation.
• Is the probe tip replaceable?
  No, the PPS tip is permanently mounted.
