Bently Nevada | 11 mm Proximity Probe 330702-00-24-50-01-05

Bently Nevada 3300 XL 11mm Proximity Probe – High-Precision Vibration Monitoring

Description

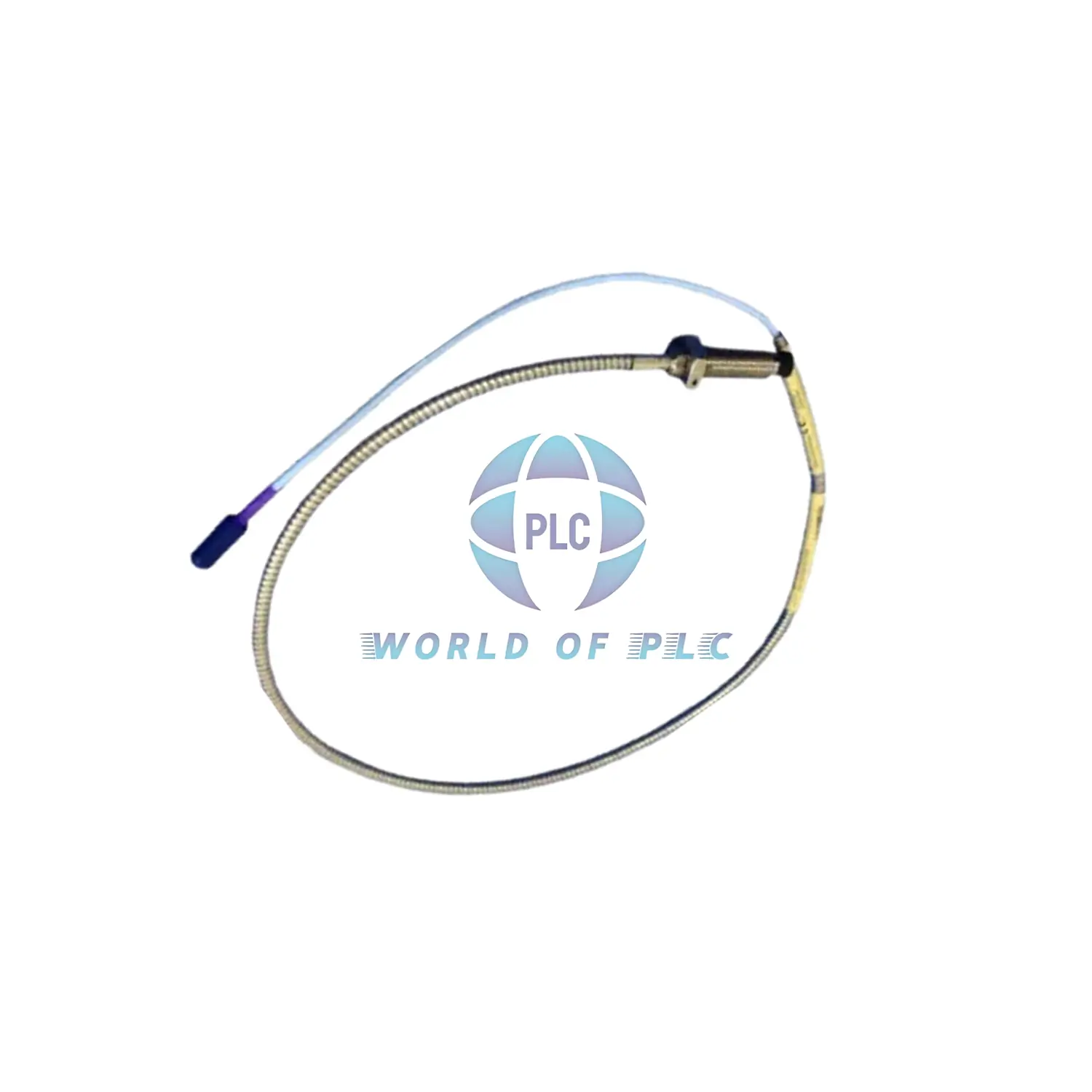

The Bently Nevada 330702-00-24-50-01-05 is a rugged 11mm proximity probe designed for precise vibration and position measurement in industrial machinery. Featuring a 5-meter armored cable and stainless steel case, it operates in extreme temperatures (-51°C to +177°C) and is compatible with 5-meter Proximitor sensors. Ideal for critical asset protection.

Technical Data

• Brand: Bently Nevada
• Model: 3300 XL 11mm (Full suffix: 330702-00-24-50-01-05)
• Thread: 1/2-20 UNF
• Cable Length: 5.0 meters (16.4 ft)
• Probe Resistance: 7.2 ± 0.8 ohms (center to outer conductor)
• Case Material: AISI 304 stainless steel
• Tip Material: PPS (Polyphenylene sulfide)
• Cable Type: 75Ω triaxial with FEP insulation
• Connector: Miniature coaxial ClickLoc (finger-tight torque)
• Temperature Range: -51°C to +177°C (avoid below -34°C for seal longevity)
• Max Thread Torque: 15.2 N•m (recommended)

Installation Guide

• Max thread engagement: 0.75 inches (1/2-20 UNF).
• Do not exceed 45.2 N•m case torque.
• Minimum bend radius: 25.4 mm (1.0 inch).

Package Includes

• 1x 3300 XL 11mm Probe
• ClickLoc connector protector
• 12-month warranty

Shipping

Fast global delivery via FedEx, UPS, or DHL. Weight: 0.17 kg.
