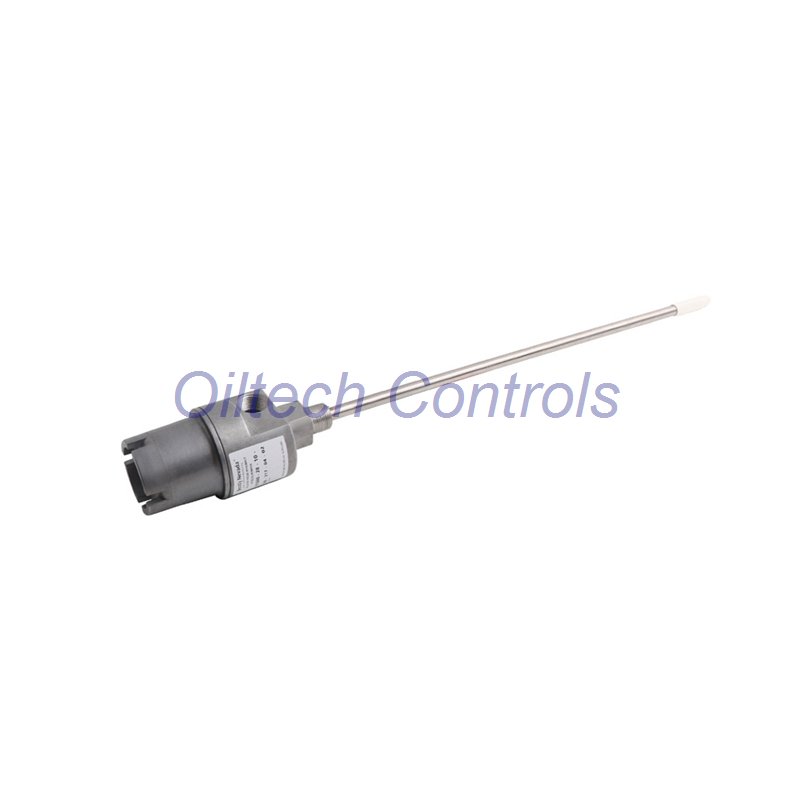

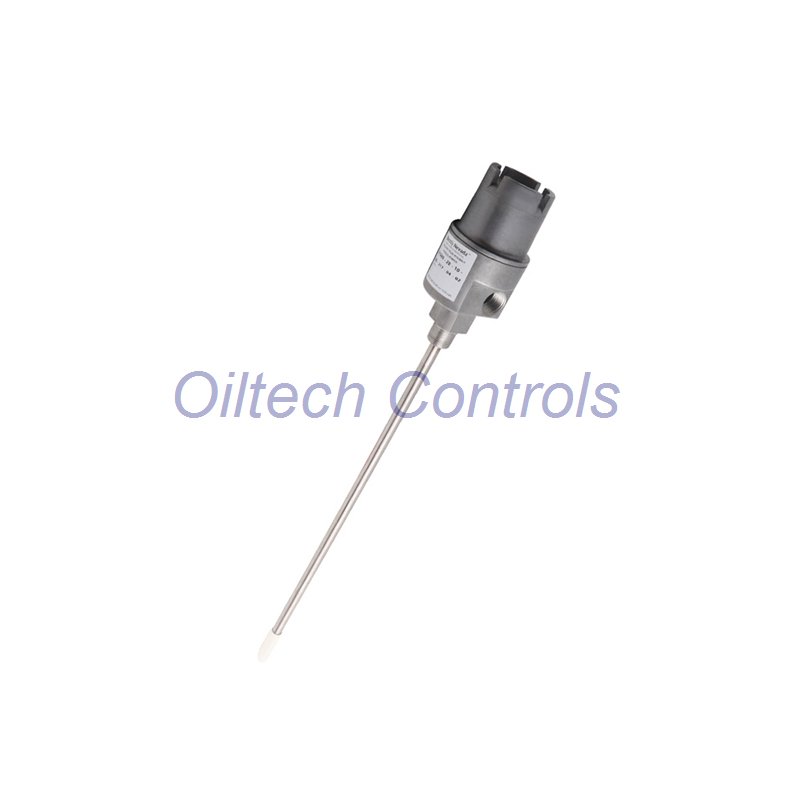

Bently Nevada 21000-16-10-15-102-03-02 Proximity Probe Housing Assemblies

Overview

• Product Number: 21000-16-10-15-102-03-02
• Type:
  21000 Proximity Probe Housing Assemblies

• Manufacturer: Bently Nevada
• Condition: New & Original Factory Packing
• Factory Warranty: 12 Months

Suffix Code Map (Tree Style)

• 21000
  • Main series housing body
  • External probe mounting design
• → 16
  • Probe option: 3300 XL 8 mm probe with connector
• → 10
  • Cable length: 1.0 m (39 in)
• → 15
  • Standoff adapter: 1.5 in
• → -102
  • Probe penetration depth: 10.2 in
• → 03
  • Includes 3/4-14 NPT plug
  • Reducer: 3/4 to 1/2 NPT
  • Cable seal grip with grommets
• → -02
  • Mounting thread: 3/4-14 NPT

Key Mechanical Data

• Housing body: Aluminum
• Sleeve: 304 stainless steel
• Typical weight: 1.1 kg (without fittings)
• Visible probe max length: 17.0 in (43.18 cm)
• Total max dimension: 32.9 in (83.5 cm)

Built-In Housing Components

• Dome cover with screw lock
• Threaded conduit ports
• Optional probe sleeve length
• O-rings for sealing
• Reverse mount proximity probe support
• Thread seal included

Safety & Compliance Highlights

• CSA approved for hazardous locations
• Explosion-proof rated enclosure
• CSA Type 4 certified protection
• Fully compliant with API 670 standard
• Supports intrinsically safe applications

Main Selling Points

• Strong enclosure for harsh field environments
• Designed for oil, gas, and refinery machines
• Easy conduit wiring with NPT ports
• Improves probe life in outdoor mounting
• Ideal for compressors, turbines, pumps

Warranty & Shipping

• Warranty: 12 months factory coverage
• Export-safe packaging
• Worldwide delivery: FedEx, UPS, DHL
• Fast support for urgent projects

FAQ (Buying & Field Tips)

• Is this housing required for outdoor installations?
  Yes. It protects probes from dust, water, and impact.
• How do I choose the correct penetration length?
  Measure the mounting distance before ordering suffix -102.
• What is the benefit of CSA explosion-proof rating?
  It allows safe use in hazardous gas or oil zones.
• Can I use this with stainless steel conduit?
  Yes. The NPT threaded ports support standard conduit fittings.
• What is a common selection mistake?
  Forgetting the mounting thread option when no standoff is used.
