Overview

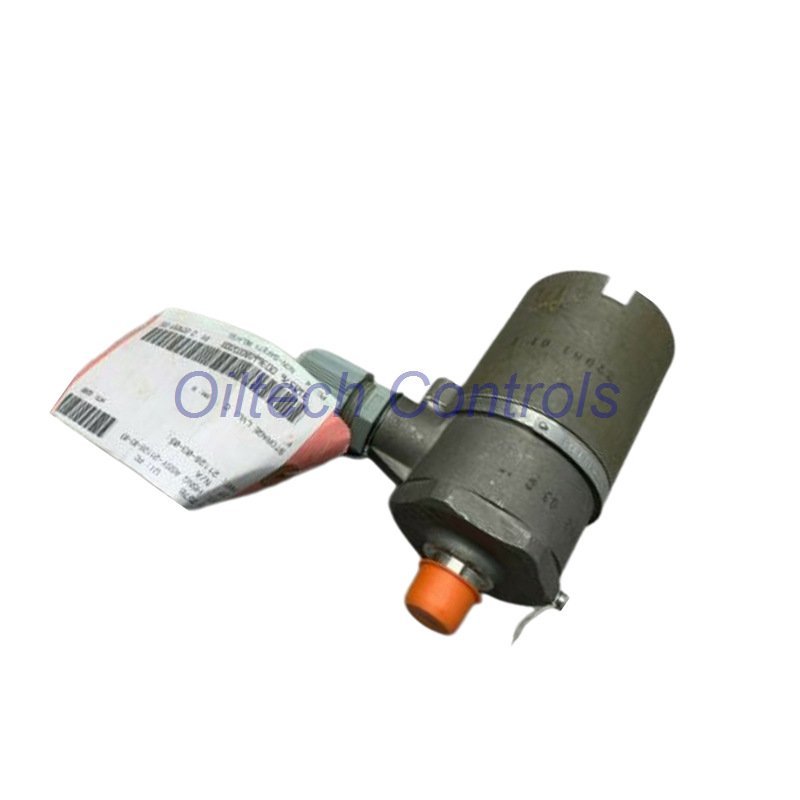

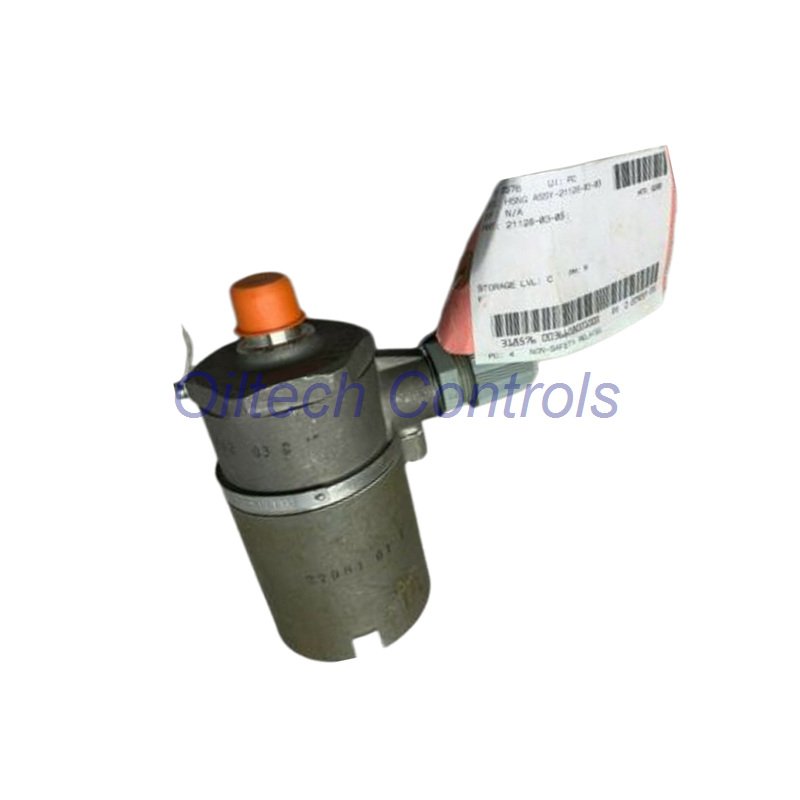

Bently Nevada 21128-04-01 velocity transducer housing delivers rugged mechanical and environmental protection for industrial vibration sensors. The enclosure resists water spray, corrosion exposure, and mechanical impact in demanding plant environments.
Key Value Pyramid Overview
- Primary Function Protection Layer
- Protects velocity sensors from hose-directed water and harsh corrosion conditions
- Shields devices against physical abuse and outdoor industrial exposure
- Supports stable sensor operation in rotating machinery monitoring systems
- Compliance and Environmental Layer
- NEMA 4X protection when installers complete correct field installation steps
- IP65 sealing performance for dust and water spray resistance
- Moisture resistant design supports long-term field reliability
- Application Variant Layer
- 21128 version supports most non-hazardous industrial environments
- CSA explosion-proof CA version supports Class I II III Division 1 hazardous areas
- BASEEFA BA version supports BS EN 60079-14 installation compliance
Model Structure Tree
- 21128-04-01
- Mounting Thread and Cap Option
- 04 = G 1/2-inch BSP thread
- Cable Exit Fitting Option
- 01 = 1/2-inch NPT plug outlet
- Housing Type
- Standard non-hazardous area enclosure
- Mounting Thread and Cap Option
Core Technical Specifications
- Brand: Bently Nevada
- Model: 21128-04-01
- Category: Velocity Transducer Protective Housing
- Body material uses 303 stainless steel for corrosion resistance
- Temperature operating range spans −29°C to +121°C
- Outlet port size uses 1/2-inch NPT configuration
- Internal mounting thread uses 1/2-20 UNF for sensor fit
- O-ring material uses neoprene for sealing stability
- Total weight equals 1.6 kg without sensor or fittings
- Design resists moisture but does not support submersible installation
Compatibility and Sensor Fit
- Housing supports Velomitor CT when users select tall cap option
- Tall cap supports 9200 and 74712 Seismoprobe with isolated base
- Use cable part number 89477-AA for Velomitor monitor connection
- System designers often pair this housing with vibration probe systems
Installation Guidance
- Technicians mount the housing using the specified BSP G1/2 thread
- Installers verify O-ring condition before final enclosure tightening
- Users route cable through the 1/2-inch NPT exit port
- Installers torque fittings correctly to maintain IP65 sealing level
- Engineers avoid submerged locations during enclosure placement
Environmental and Interference Resistance
- Stainless enclosure blocks corrosion from oil mist and chemical vapors
- Sealed body reduces water ingress during washdown procedures
- Rigid shell reduces vibration-induced cable and connector stress
- Mechanical shielding lowers risk of accidental impact damage
Packing List
- Velocity transducer housing assembly
- Neoprene O-ring pre-installed
- Standard cap or selected tall cap option
- Thread protection cover for transport safety
- Shipping via DHL, UPS, or FedEx based on destination
FAQ and Selection Tips
- Which environment fits the 21128 housing best
Non-hazardous industrial areas where water spray and corrosion risk exist - When should engineers choose the tall cap option
Choose tall cap when Velomitor CT or isolated-base Seismoprobe sensors get installed - Can users install this housing in submerged locations
The design resists moisture but does not support underwater service - How do buyers confirm thread compatibility
Buyers check BSP G1/2 mounting and UNF internal thread before ordering - What improves long-term sealing performance
Technicians replace worn O-rings and apply correct tightening torque during installation
