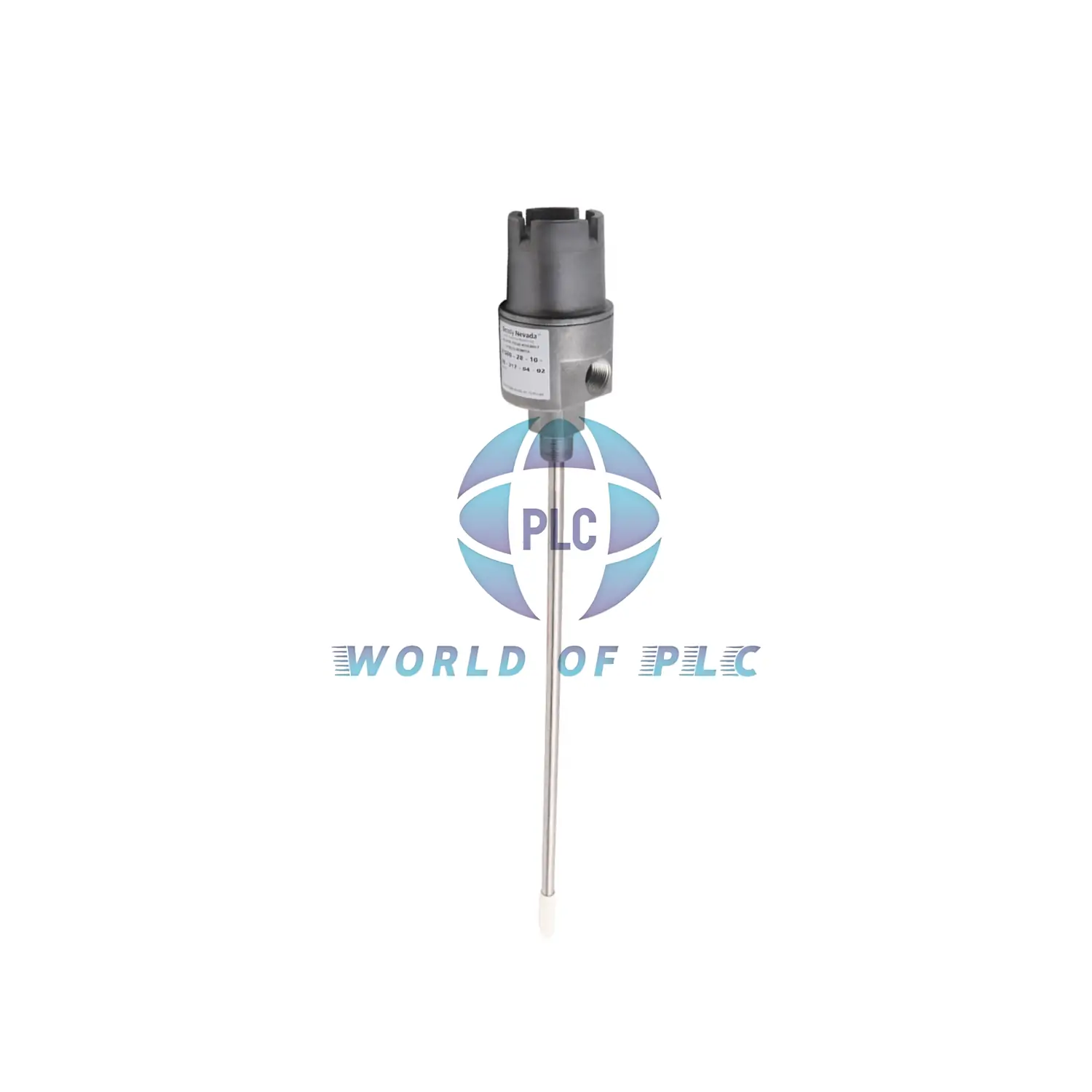

Bently Nevada – 24701-28-10-00-140-04-01 – Proximity Probe Housing Assembly

Bently Nevada 24701-28-10-00-140-04-01 Proximity Probe Housing Assembly

Key Technical Parameters

• Measurement range 0-2mm for precise vibration monitoring
• ±1% accuracy at 25°C ambient temperature
• -18 to -24 VDC output signal range
• -50°C to +125°C operating temperature
• IP67 protection against dust/liquid ingress

Industrial Applications

• Gas turbine vibration analysis in power plants
• Pump bearing monitoring in oil & gas facilities
• Compressor shaft alignment in chemical plants

Model Suffix Breakdown (24701-28-10-00-140-04-01)

• 24701: Base model
  • 28: 3300 XL 8mm probe with connector
  • 10: 39-inch (1m) cable
  • 00: No standoff adapter
  • 140: 14-inch penetration
  • 04: 3/4-14 NPT plug
  • 01: As-cast threads

Installation Essentials

• Mount within 30° of vertical position
• Maintain 1.5mm gap between probe tip and target
• Use 15-20 N·m torque for housing installation

System Compatibility

• Bently Nevada 3500/46M monitoring systems
• System 1® asset performance management
• GE Mark VIe turbine controls

Package Contents

• Probe housing assembly (1pc)
• Stainless steel O-rings (2pcs)
• NPT thread sealant (5ml)
• Installation manual sheet

Shipping & Support

• FedEx/UPS/DHL express available
• 24/7 technical support via phone/email
• 12-month manufacturer warranty
