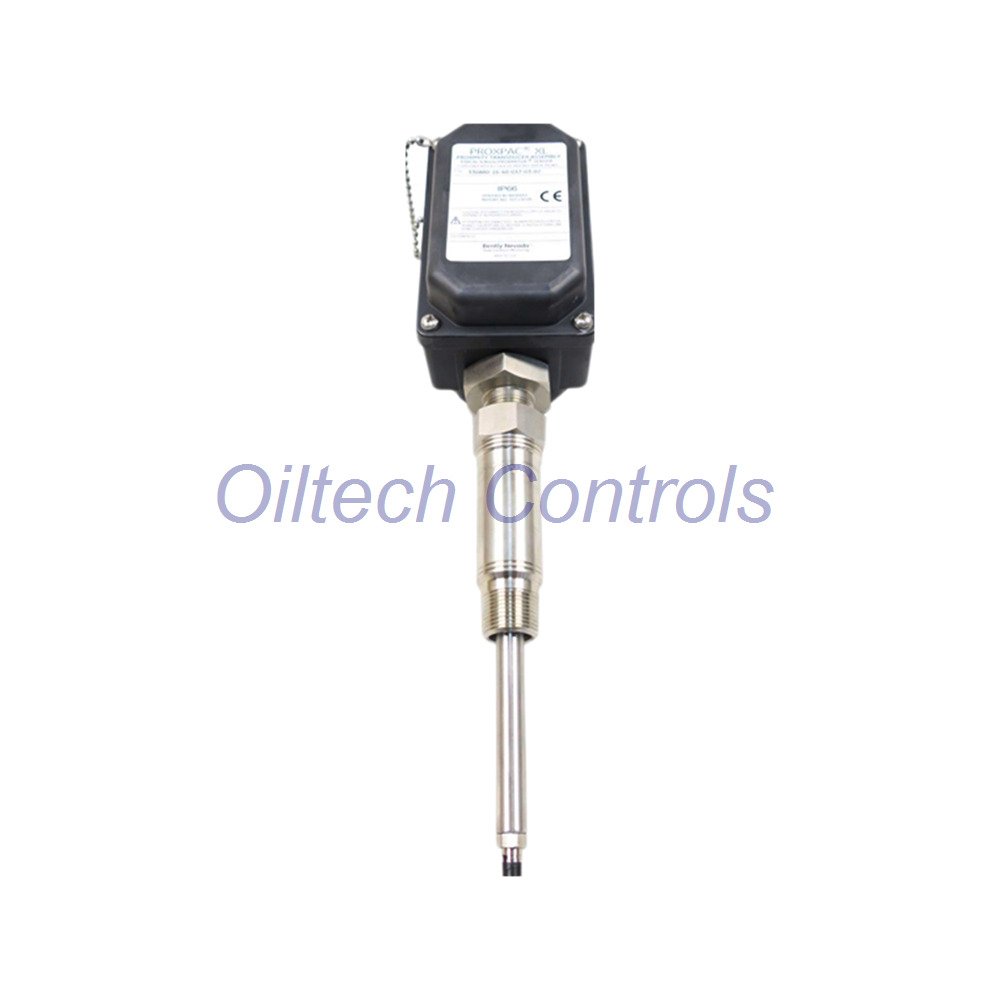

Bently Nevada 31000-28-10-00-133-03-02 Probe Housing Assembly
- Manufacturer: Bently Nevada
- Model: 31000-28-10-00-133-03-02
- Family: 31000 Proximity Probe Housing Assemblies
- Use: Industrial vibration probe protection
- Origin: Made in U.S.A
- Typical weight: 1.2 kg
Core Purpose Snapshot
- Protects proximity probe body
- Seals cable entry point
- Keeps out water and dust
- Supports hazardous area use
- Built for long term field duty
Configuration Tree (Order Code Logic)
- 31000 Housing Platform
- 28 → 3300 XL 8 mm probe support, multi approvals
- 10 → Probe cable length 1.0 m
- 00 → No standoff adapter
- 133 → Probe penetration 13.3 in
- 03 → Fitting kit set
- Two plugs included
- One 3/4-14 NPT fitting
- One 3/4 to 1/2 NPT SST reducer
- Cable seal grip + multi grommets
- 02 → Mounting thread 3/4-14 NPT
Mechanical & Material Stack
- Housing body: Glass-reinforced PPS
- Conductive fiber filled plastic
- Sleeve: AISI 304 stainless steel
- Outer sleeve screws: AISI 303 stainless
- Retaining chain: Stainless steel
- Main O-ring: Neoprene®
- Probe seal O-ring: Viton
Protection & Certification Level
- Type 4X enclosure rating
- IP66 verified test record
- CENELEC EN50014 compliant
- Electrostatic dissipation design
- Suitable for hazardous zones
Impact & Strength Data
- 4 Joule impact at −39°C
- 4 Joule impact at +115°C
- 7 Joule impact at room temp
- Static load test: 912 N support
- Load point offset: 38 mm
- Cover locked during test
Temperature & Environment Limits
- Working temp: −51°C to +105°C
- Short term high heat resistant
- Cold start capable
- Outdoor washdown safe
Torque & Mounting Numbers
- Retaining nut torque: 29.4 N·m
- Equals 260 in·lb
- NPT thread mount style
- Thread seal recommended
Cable Seal Range
- Grommet set included
- Supports 1/8–3/16 in cable
- Supports 1/4–5/16 in cable
- Supports 5/16–3/8 in cable
- Multi size field fit
Pressure & Sealing Notes
- Designed for probe tip sealing
- Not a pressure vessel
- No factory pressure test
- Water jet sealing certified
- Custom pressure test on request
Extra Technical Selling Points
- Integrated cable strain control
- Corrosion safe hardware
- High impact sleeve design
- Stable seal at temp swing
- Low leakage risk path
- Fast probe access cover
Compatible Systems
- For XL 8 mm probe installs
- Works with monitor racks
- Fits Proximity Probe Housing Assemblies setups
- Used in turbine and compressor skids
Shipping & Warranty
- Warranty: 12 months
- Each unit inspected
- Export safe packing
- Courier: FedEx / UPS / DHL
Professional FAQ
- When should I choose housing instead of direct probe mount
- Use housing in dirty or wet zones.
- How do I pick correct penetration length
- Measure wall thickness and gap space first.
- Do I need standoff adapter always
- No. Only when probe reach is short.
- What is a common install mistake
- Wrong cable grommet size choice.
- How to plan spare housing stock
- Match thread, probe size, fittings.
