Bently Nevada 3300 NSv Probe | 330904-08-10-50-02-00 5.0m Cable

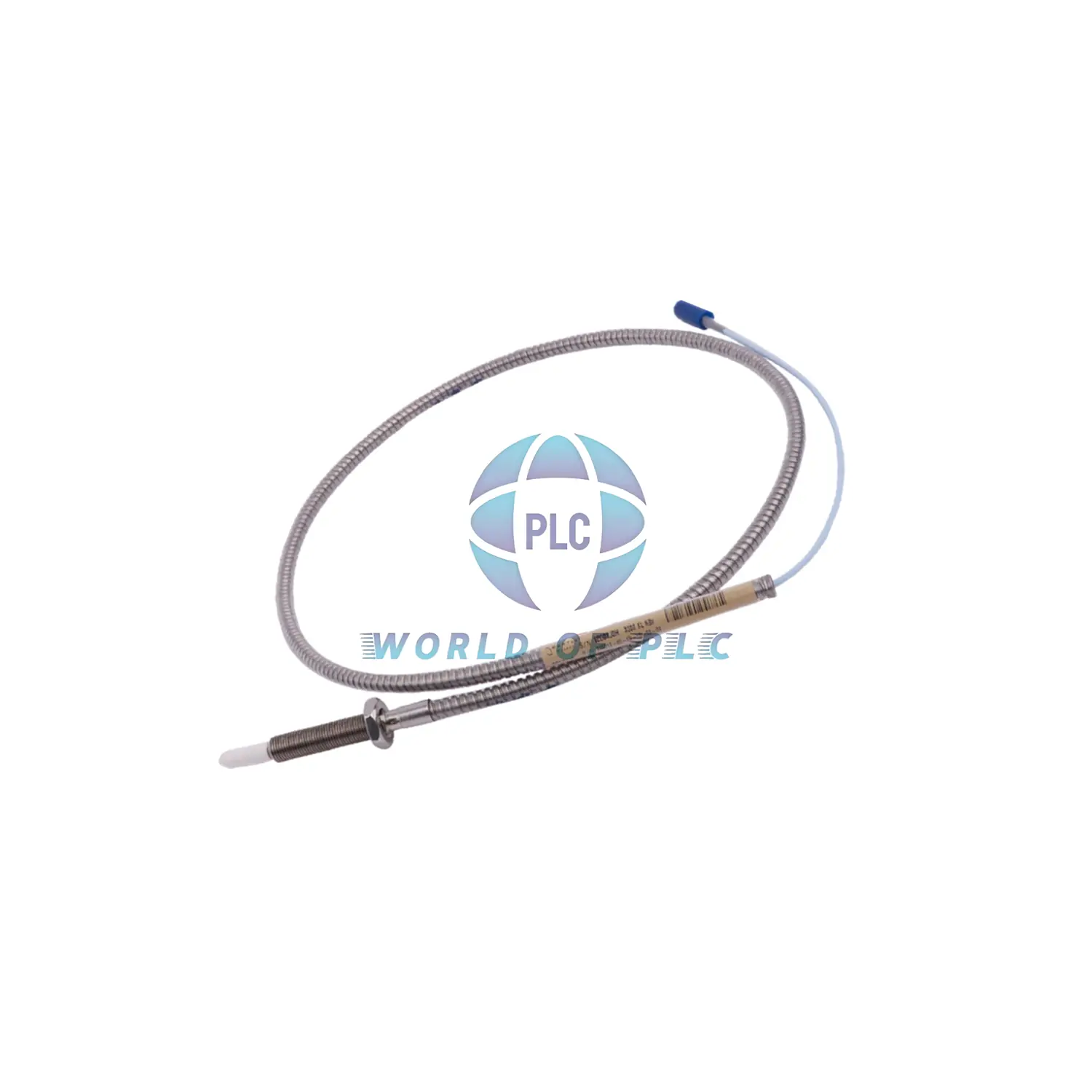

Bently Nevada 3300 NSv Extended Probe

The Bently Nevada 330904-08-10-50-02-00 features an 80mm unthreaded section with 5.0 meter cable. This design provides flexible installation in hard-to-reach areas. The probe is new and original with full warranty protection.

Technical Specifications

• Model: 330904-08-10-50-02-00
• Measuring Range: 1.5 mm (60 mils)
• Sensitivity: 7.87 V/mm (200 mV/mil)
• Frequency Response: 0 to 10 kHz
• Accuracy: ±0.06 mm linearity
• Unthreaded Length: 80 mm
• Total Case Length: 100 mm
• Cable Length: 5.0 meters
• Resistance: 5.3 ± 0.7 ohms
• Temperature Range: -52°C to +177°C

Installation Guide

• Set gap to 1.0 mm from target surface
• Hand tighten only – do not use tools
• Use 13 mm or larger target diameter
• Maintain 25.4 mm cable bend radius
• Maximum 12 mm thread engagement

Package Contents

• One Bently Nevada 3300 NSv probe
• 80mm unthreaded section version
• 5.0 meter standard cable
• ClickLoc connector
• Original factory packaging

Expert Questions

• What is the unthreaded section for?
  It allows installation through mounting brackets without thread engagement.
• Can this probe handle high temperatures?
  Yes, it works from -52°C to +177°C.
• What is the cable material?
  FEP insulated coaxial cable for durability.
• Is calibration required?
  No, the probe comes pre-calibrated from factory.
• What applications suit this model?
  Ideal for machinery with limited access or special mounting requirements.

Shipping Options

• Fast worldwide shipping
• FedEx, UPS, and DHL available
• Reliable delivery service

Download Documentation

• Get complete technical information
• Includes installation guide and specs
• Download Datasheet PDF
