Bently Nevada 3300 NSv Probe 330910-01-10-10-02-05 Multiple Approvals

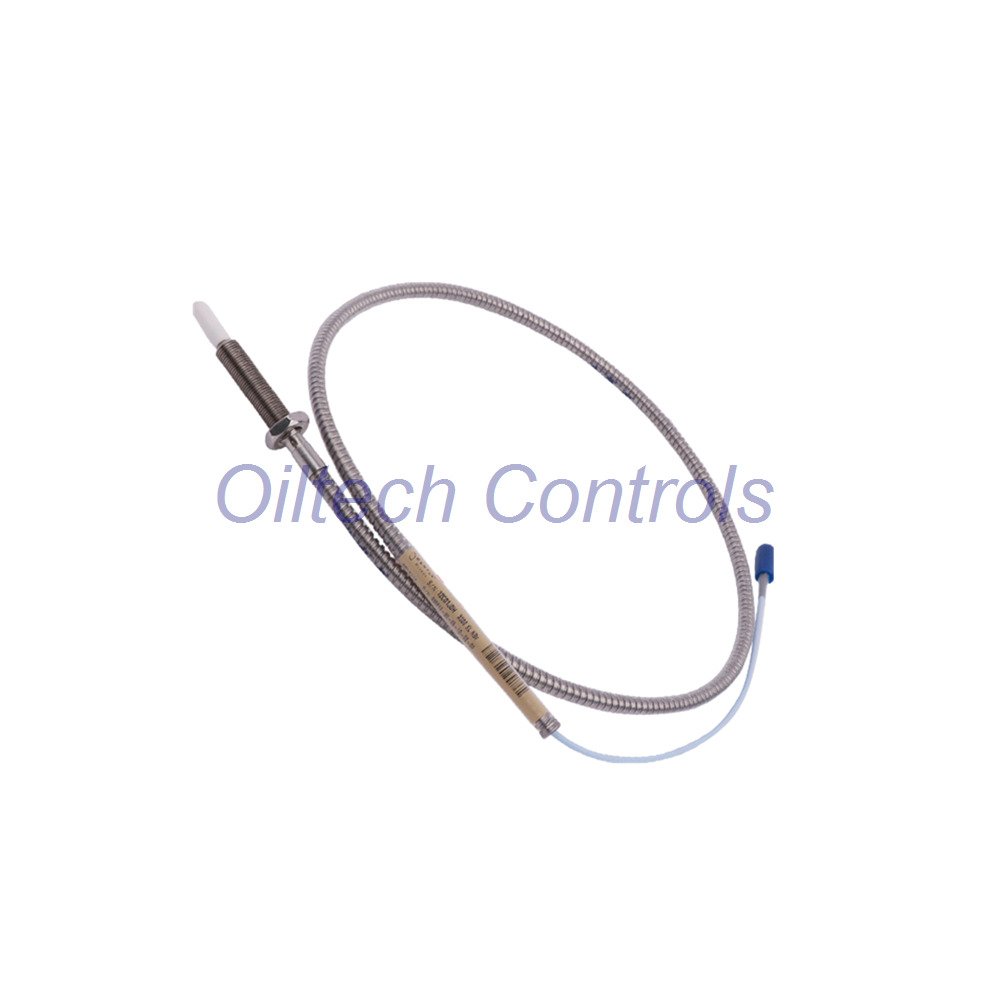

🔹 Bently Nevada 3300 NSv Proximity Probe – 330910‑01‑10‑10‑02‑05

Part number 330910‑01‑10‑10‑02‑05 is a rugged, side‑view eddy‑current sensor built for permanent installation in compressors, turbines, and pumps. It carries multiple global approvals (‑05 option) and offers full interchangeability with older 3300 RAM probes. 1.0 meter total length, M10x1 thread, stainless steel armor, and ClickLoc™ connector.

⚙️ Configuration breakdown

• 330910 = NSv probe, M10x1 thread, with armor
• -01 = unthreaded length 10 mm
• -10 = overall case length 100 mm
• -10 = total cable length 1.0 meter (39 in)
• -02 = miniature coaxial ClickLoc™ connector, standard FEP cable
• -05 = multiple agency approvals (ATEX, IECEx, CSA, etc.)

📈 Core specifications – fast facts

• Linear range : 1.5 mm (60 mils) · gap 0.25 … 1.75 mm
• Scale factor (ISF) : 7.87 V/mm (200 mV/mil) · ±12.5% / –20%
• Frequency response : 0 … 10 kHz (+0, –3 dB) with 305 m field wiring
• Deviation from straight line : < ±0.06 mm (±2.3 mils)
• Probe DC resistance (1.0 m) : center to outer conductor = 4.2 ±0.5 Ω
• Extension cable data : 0.220 Ω/m center · 0.066 Ω/m shield · 69.9 pF/m
• Recommended gap : 1.0 mm (40 mils) → approx –8.9 Vdc output
• Target size : min. Ø8.9 mm flat · recommended Ø13 mm

🌡️ Environmental & mechanical toughness

• Temperature range : –52 °C to +177 °C (both operation & storage)
• Probe tip : Polyphenylene sulfide (PPS) – superior chemical resistance
• Case material : AISI 304 SST · armor optional (included)
• Pressure sealing : Viton O‑ring (differential pressure designed, not factory‑tested)
• Minimum bend radius : 25.4 mm (1.0 in) – even with armor
• Torque limits : case max 33.9 N·m / rec. 11.3 N·m · connector first threads max 22.6 N·m

✅ Why choose the ‑05 multiple approvals version?

• Carries ATEX, IECEx, CSA, UKEX – ready for global hazardous areas
• Temperature class: T1 … T5 (EPL Ga/Gc) and T280°C … T90°C (EPL Dc) – see full schedule
• No need for additional barriers when used with certified 3300 XL NSv Proximitor®
• Same rugged design as standard NSv probes, with added certificate package

🔧 Installation & wiring made simple

• Mounting torque : finger‑tight first · max 0.56 N·m (5 in·lb) on M10x1 threads
• ClickLoc™ connector : push‑to‑lock, no twisting – saves time in tight spots
• Field wiring : 0.2 … 1.5 mm² (16‑24 AWG) 3‑conductor shielded triad · up to 305 m to monitor
• Compatibility : direct replacement for 3300 RAM and 3000‑series 190 probes (side‑view)

📦 Delivery & warranty

• Factory warranty : 12 months against defects
• Packaging : new & original in factory‑sealed anti‑static bag
• Shipping : FedEx, UPS, DHL – express worldwide (tracking provided)

📞 Contact & inquiries

• Email: info@oiltechcontrols.com
• WhatsApp: +86 158 8020 0923 (click for direct chat)
• For custom pressure testing or certificate requests, contact our engineering team.

❓ 5 professional FAQs – experience‑based answers

• Q: What specific approvals are included with the -05 option?A: Typically ATEX, IECEx, CSA, and UKEX. These cover gas and dust atmospheres. We can provide the certificate copies upon request.
• Q: Can I use this 1.0 m probe with my existing 3300 RAM extension cable?A: Yes – it is mechanically and electrically interchangeable. The NSv adds better chemical resistance but mates perfectly with RAM cables and Proximitors.
• Q: The target shaft is only 10 mm diameter – will it work?A: It works, but scale factor may shift. Reduce the gap closer to 0.5 mm to minimize error. For best linearity, use a shaft ≥13 mm or add a flat target.
• Q: How do I know if the Viton seal can handle my process pressure?A: The probe is designed for differential pressure, but not factory tested. If you need a pressure test certificate, our custom department can perform it – just ask.
• Q: What is the real advantage of ClickLoc over standard connectors?A: It eliminates over‑torquing and vibration loosening. You simply push until it clicks – it stays locked even under heavy machine vibration.
