Bently Nevada | 3300 NSv Reverse Mount Probe 330906-02-12-70-02-05

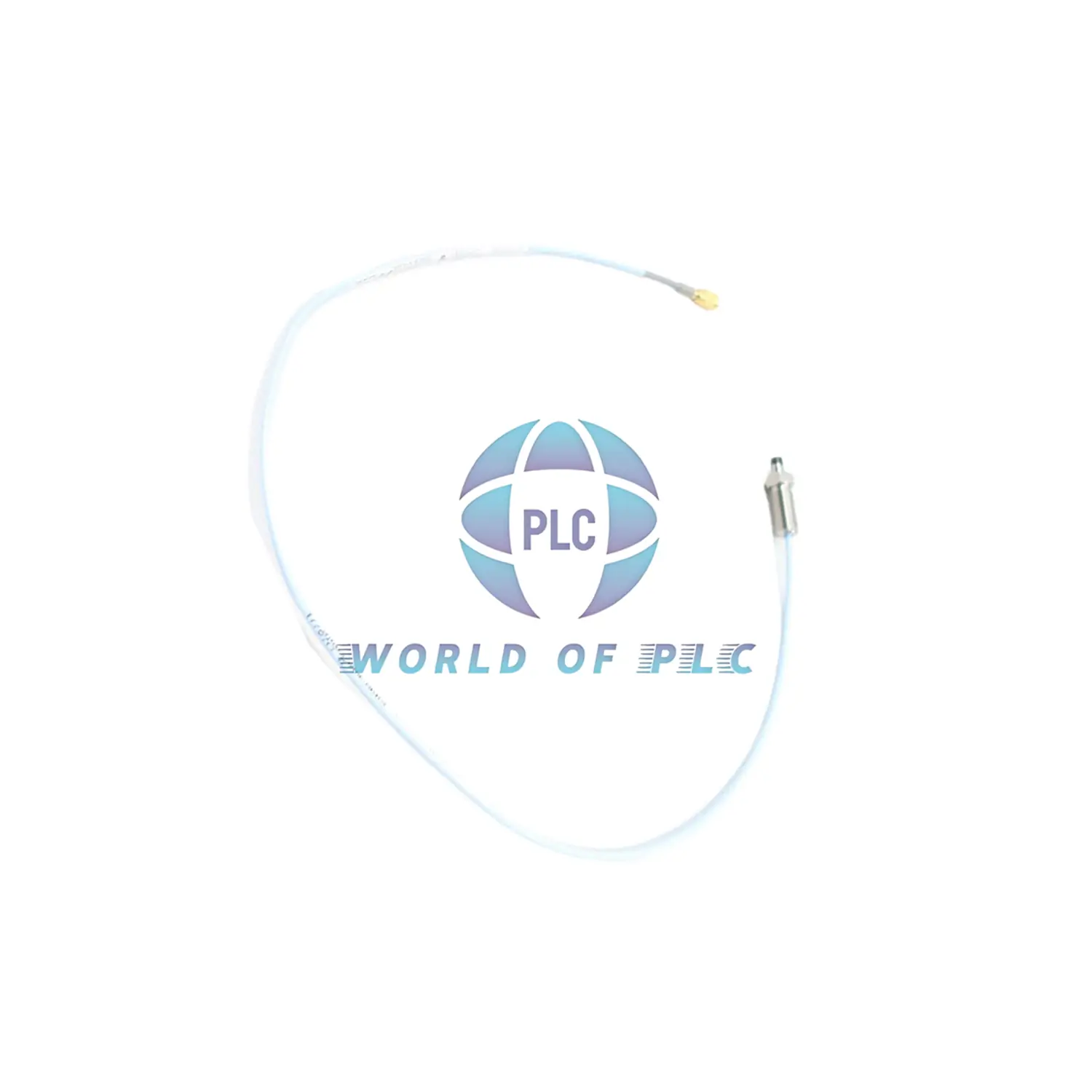

Bently Nevada 330906-02-12-70-02-05 Reverse Mount Probe

Product Overview

This is a 3300 NSv reverse mount probe made for tight spaces and chemical-rich areas. It provides strong performance in vibration and position monitoring. This probe is ideal for process compressors and rotating machinery. Made in the USA.

Key Features

• Probe Type: Reverse Mount
• Series: 3300 NSv
• Thread: 3/8-24 UNF
• Total Cable Length: 7.0 meters (23.0 feet)
• Connector: Miniature coaxial ClickLoc, standard cable
• Agency Approval: 05 = Multiple Approvals (CSA, ATEX, IECEx)

Electrical Specifications

• Resistance: 5.9 ± 0.9 ohms
• Voltage Output: -1 to -13 VDC typical
• Linear Range: 0.25 to 1.75 mm (10 to 70 mils)
• Recommended Gap: 1.0 mm (40 mils)

Field Wiring

• Wire Size: 0.2 to 1.5 mm² (16 to 24 AWG)
• With Ferrules: 0.25 to 0.75 mm² (18 to 23 AWG)
• Recommended: Shielded triad cable
• Max Distance: 305 meters (1,000 feet)

Mechanical Details

• Probe Tip: Polyphenylene Sulfide (PPS)
• Case Material: AISI 304 Stainless Steel
• Thread Type: M10x1
• Thread Engagement: 15 mm max
• Weight: 14 to 150 g (0.5 to 5.3 oz)

Temperature Range

• Operating: -52°C to +177°C (-62°F to +351°F)
• Storage: -52°C to +177°C (-62°F to +351°F)
• Note: Long exposure below -34°C may damage the seal

Shipping and Warranty

• Warranty: 12 months
• Packing: Original factory-sealed box
• Shipping Options: FedEx, UPS, DHL

Model Number Breakdown (330906-02-12-70-02-05)

• 330906: Series ID for 3300 NSv Reverse Mount Probe
• 02: Unthreaded Length
• 12: Probe Case Length (120 mm)
• 70: Total Probe Length (7.0 m)
• 02: Miniature ClickLoc Connector
• 05: Multiple Global Approvals
