Bently Nevada | 3300 NSv Reverse Mount Probe 330907-05-30-50-12-00

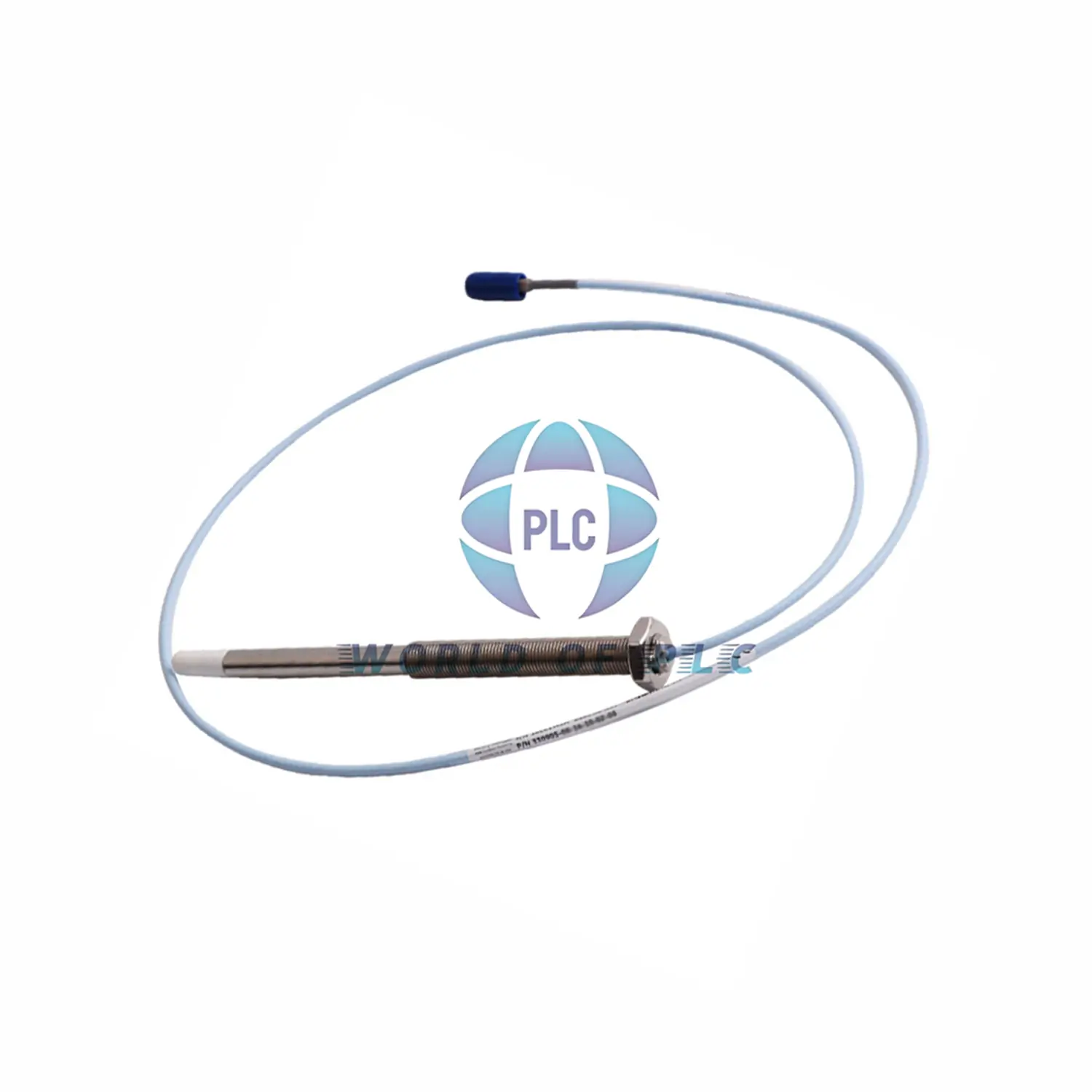

Bently Nevada 330907-05-30-50-12-00 Reverse Mount Probe

Product Overview

The 330907-05-30-50-12-00 is a reverse mount probe from the Bently Nevada 3300 NSv series. It includes a 5.0-meter FluidLoc cable with ClickLoc connector and M10X1 thread design. Built for harsh, chemical-heavy industrial spaces, this model offers stable output and long life.

Technical Specifications

• Thread Type: M10X1
• Cable Length: 5.0 meters (16.4 ft)
• Connector Type: Miniature ClickLoc coaxial with FluidLoc cable
• Approval Code: 00 (No certification required)
• Output Voltage: -1 VDC to -13 VDC
• Linear Measurement Range: 0.25 mm to 1.75 mm
• Recommended Gap: 1.0 mm
• Probe Resistance (1.0 m cable): 4.2 ± 0.5 ohms

Mechanical Properties

• Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 304 stainless steel
• Weight: 14–150 g
• Thread Engagement: Max 15 mm
• Max Torque: 22.6 N·m
• Recommended Torque: 7.5 N·m

Wiring & Compatibility

• Wiring Size: 0.2 to 1.5 mm² (16–24 AWG)
• Recommended Cable: 3-conductor shielded triad
• Max Cable Run: 305 meters to monitor
• Compatible Sensor: 3300 XL NSv Proximitor Sensor

Ordering Structure Breakdown

• 330907: Product Series
• 05: Unthreaded length option
• 30: Case length option
• 50: Cable length = 5.0 meters
• 12: ClickLoc + FluidLoc cable
• 00: No approvals needed
