Bently Nevada | 3300 NSv Reverse Mount Probe 330907-05-30-70-02-00

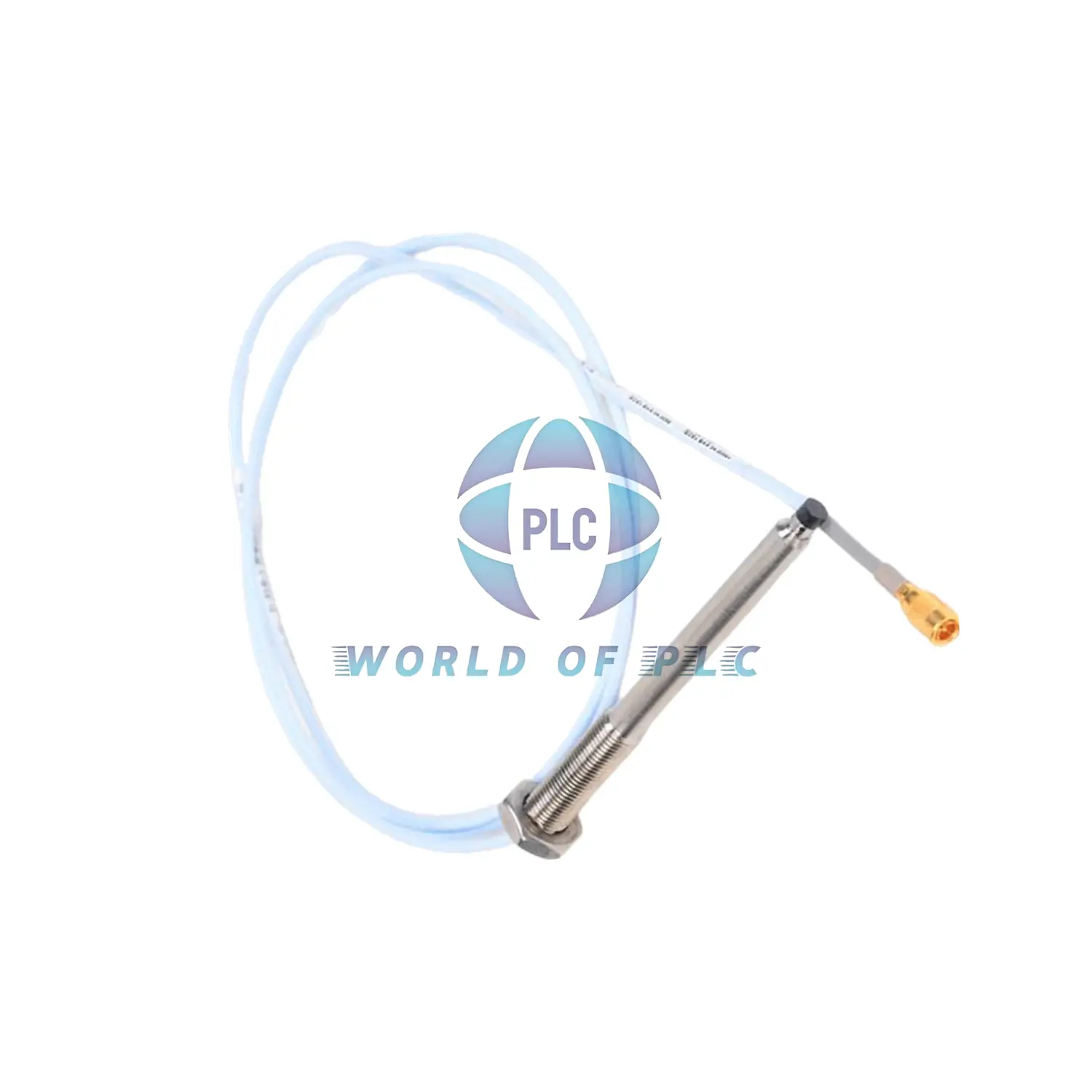

Bently Nevada 330907-05-30-70-02-00 Reverse Mount Probe

Product Summary

This reverse mount probe is part of the 3300 NSv series by Bently Nevada. It is used to detect vibration in machines. It works well in areas with heat, pressure, or chemicals. This probe is often used in gas compressors and turbines.

Model Breakdown(330907-05-30-70-02-00)

• 330907: NSv Series, Reverse Mount Probe
• 05: Tip Option
• 30: Case Length
• 70: Cable Length = 7.0 meters
• 02: Standard ClickLoc connector
• 00: No agency approval required

Core Technical Data

• Thread Type: M10x1
• Gap Range: 0.25 mm to 1.75 mm
• Linear Range: 1.5 mm (60 mils)
• Output Voltage: -1 to -13 VDC
• Recommended Gap: 1.0 mm (40 mils)
• DC Resistance (1 m): 4.2 ohms ± 0.5

Mechanical Specs

• Tip Material: PPS (Polyphenylene Sulfide)
• Case Material: AISI 304 Stainless Steel
• Thread Depth: Max 15 mm
• Torque – Max: 22.6 N·m
• Torque – Recommended: 7.5 N·m
• Weight: 14 to 150 g

Installation Notes

• Ensure secure ClickLoc connection
• Use proper torque when mounting
• Avoid low temps below -34°C for long periods
