Bently Nevada 330907-05-30-70-12-00 Reverse Mount Probe
Product Overview

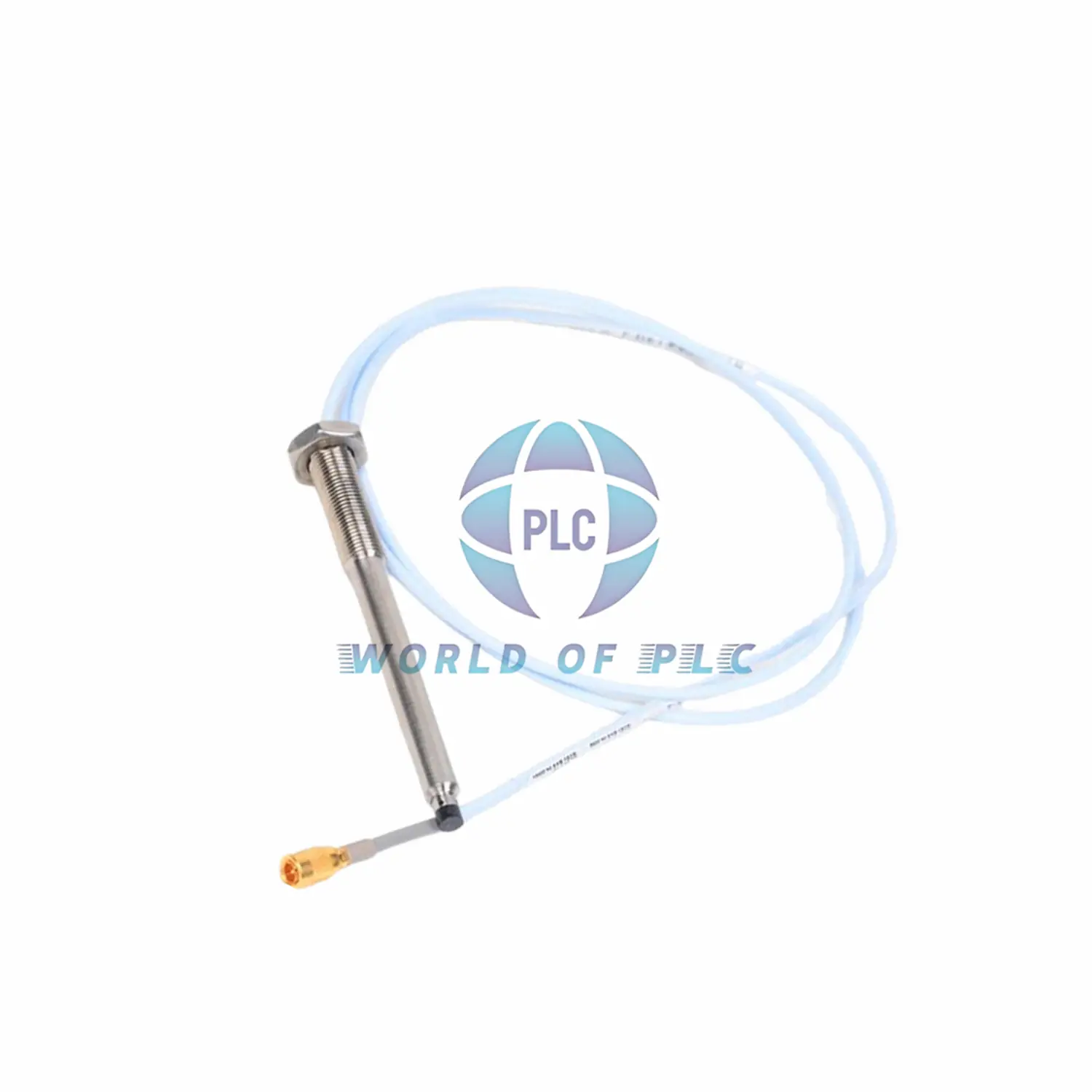

The 330907-05-30-70-12-00 probe is a 3300 NSv reverse mount probe with M10x1 threads. It includes a 7.0-meter FluidLoc cable and a miniature coaxial ClickLoc connector. This probe offers enhanced chemical resistance for use in harsh process compressor environments. It features improved side-view sensitivity compared to older 3000-series probes.
Model Code Breakdown
- 330907: NSv Reverse Mount Probe Series
- 05: Probe unthreaded tip length
- 30: Probe case length
- 70: Total length – 7.0 meters (23 feet)
- 12: Miniature coaxial ClickLoc connector with FluidLoc cable
- 00: No agency approval required
Mechanical Details
- Probe Tip Material: Polyphenylene sulfide (PPS)
- Probe Case Material: AISI 304 stainless steel
- Thread Size: M10x1, max 15 mm engagement
- Maximum Torque: 22.6 N·m (200 in·lb)
- Recommended Torque: 7.5 N·m (66 in·lb)
- Weight: 14 to 150 grams (0.5 to 5.3 oz)
Installation Guidelines
- Wire Size: 0.2 to 1.5 mm² (16 to 24 AWG)
- With Ferrules: 0.25 to 0.75 mm² (18 to 23 AWG)
- Cable Type: Three-conductor shielded triad recommended
