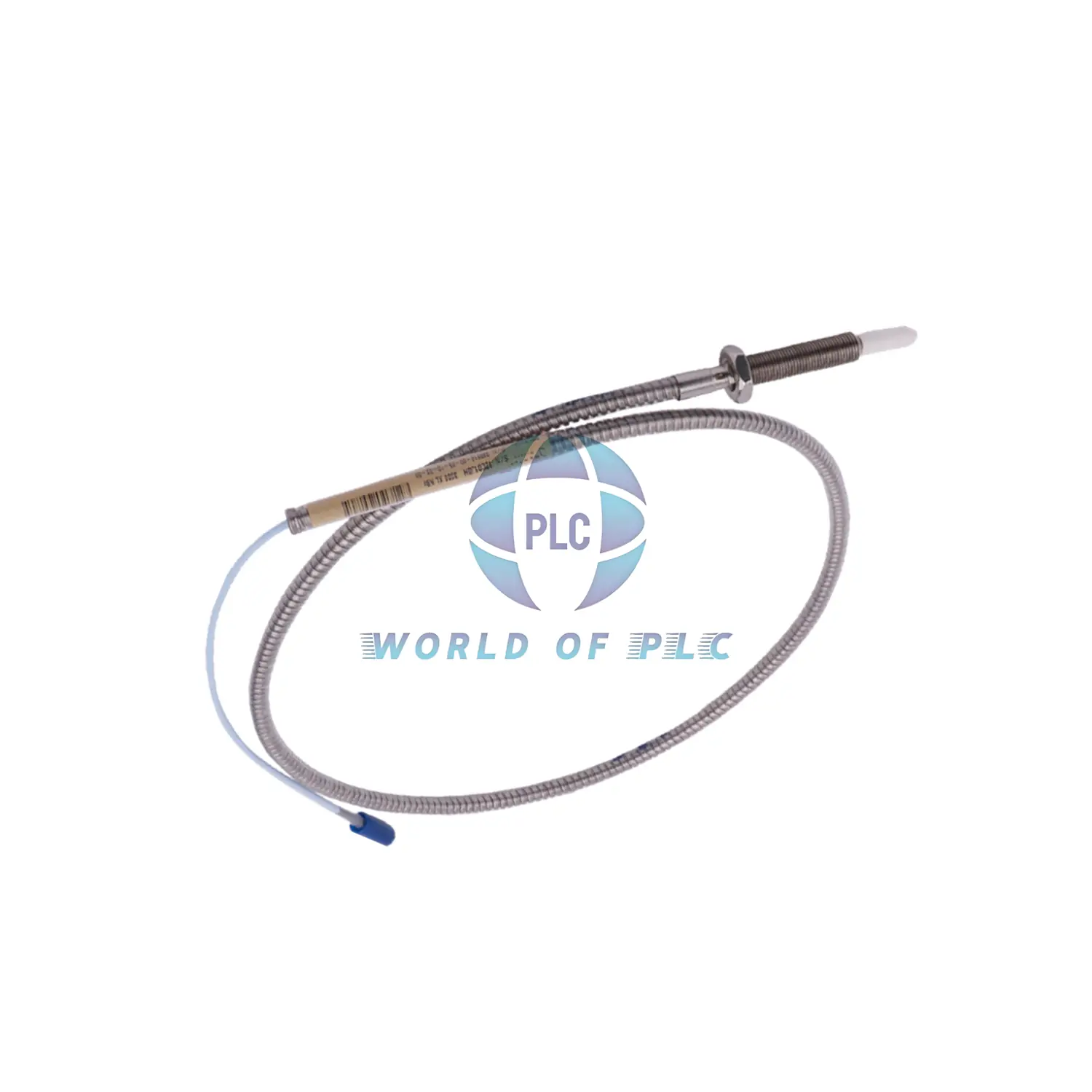

Bently Nevada 3300 NSv Proximity Probe
New 330904-08-10-70-02-05 in stock. Compact 100mm case with 80mm smooth section. Features 7 meter standard cable. The 330904-08-10-70-02-05 is perfect for tight spaces. Original factory packaging with 12 month warranty included.
Understanding Your Model Code
- 330904 – Core probe design with armor
- 08 – 80mm unthreaded for easy positioning
- 10 – 100mm total compact case length
- 70 – 7.0 meter extended cable length
- 02 – Standard industrial cable type
- 05 – Multiple international safety approvals
Technical Performance Data
- Measurement Range: 1.5 mm total travel
- Optimal Gap Setting: 1.0 mm from target
- Voltage Output: -1 to -13 VDC signal
- Measurement Accuracy: ±0.06 mm maximum error
- Frequency Response: 0 to 10,000 Hz range
- Unthreaded Section: 80mm length
- Total Case Length: 100mm compact design
- Cable Length: 7.0 meters extended reach
- Cable Type: Standard FEP insulated
- Electrical Resistance: 5.9 ohms ±0.9
- Temperature Range: -52°C to +177°C
- Mounting Thread: M8 x 1.0 mm fine pitch
- Minimum Target Size: 13mm diameter
- Output Sensitivity: 7.87 V/mm scale factor
- Cable Bend Radius: 25.4 mm minimum
- Installation Torque: 0.56 N•m maximum
- Housing Material: 304 stainless steel
- Tip Material: PPS high-temperature plastic
- Pressure Seal: Viton O-ring design
Simple Installation Steps
- Position probe 1.0 mm from target surface
- Use 80mm unthreaded section for alignment
- Hand tighten only – no tools required
- Maintain proper cable bend radius
- Ensure flat target surface minimum 13mm
- Verify secure electrical connections
Download Documentation
For complete technical specifications and installation guide: Download Full Datasheet PDF
Technical Support FAQ
- What advantages does the 80mm unthreaded section provide?
- Allows precise positioning and alignment before final tightening. Ideal for applications requiring exact probe placement.
- Is this probe suitable for high-temperature environments?
- Yes, operates reliably from -52°C to +177°C, covering most industrial temperature ranges.
- How does the 100mm case length benefit installation?
- Compact design fits space-constrained applications while providing adequate mounting depth.
- What type of environments require standard cable?
- Dry, indoor industrial settings without chemical exposure or moisture concerns.
- Can this probe measure axial position on small shafts?
- Yes, but for shafts under 13mm diameter, reduce gap setting to maintain accuracy.
