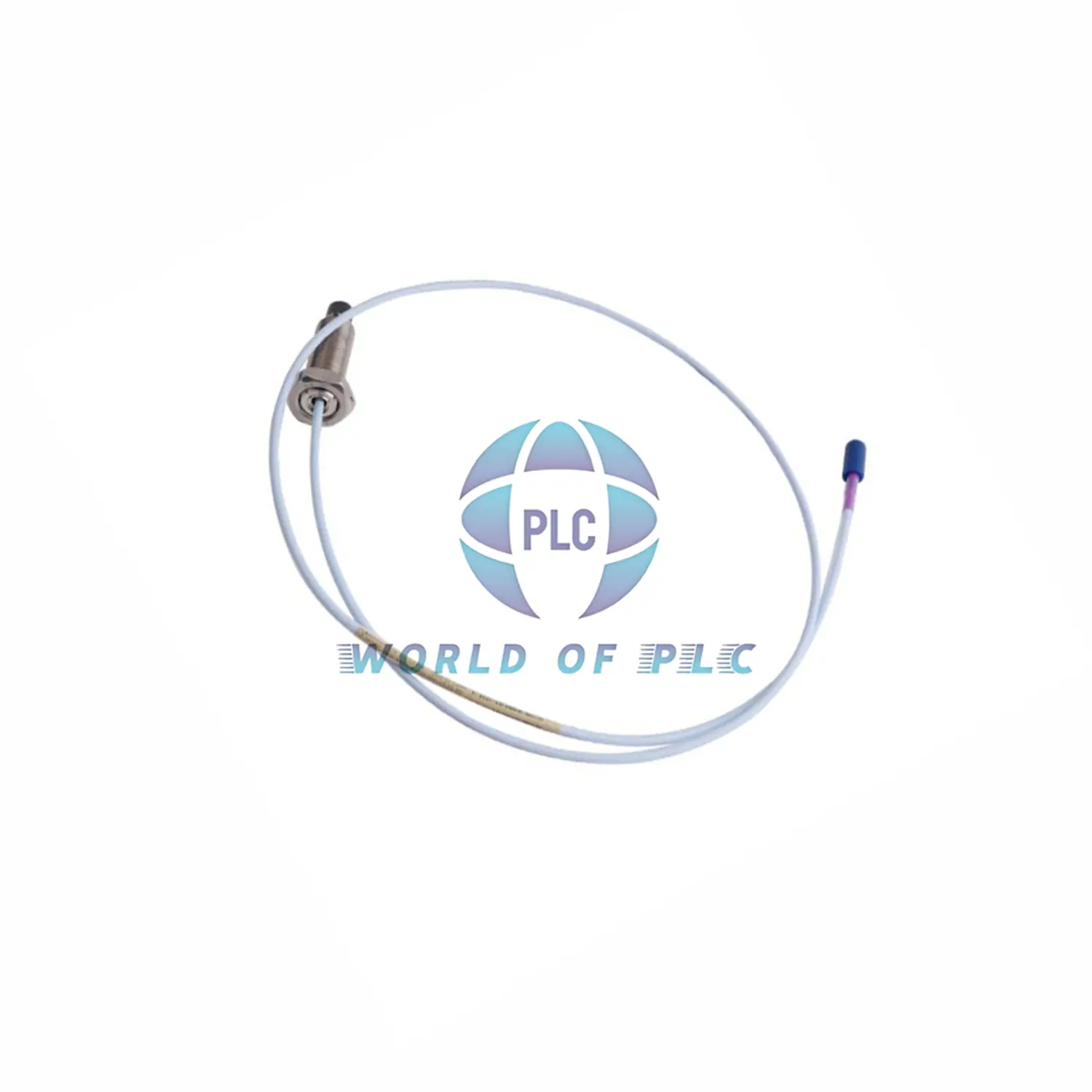

Bently Nevada 3300 XL 11 mm Proximity Probe 330701-00-10-10-01-00

Bently Nevada 3300 XL 11mm Proximity Probe – Model 330701-00-10-10-01-00

Product Highlights

• Precision vibration sensor for industrial machines
• 1/2-20 UNF thread for secure mounting
• 1.0 meter cable with protected connector
• Works in extreme temperatures (-51°C to +177°C)
• Stainless steel case for long life

Model Number Explained

• 330701 = Base model
• 00 = 0″ unthreaded length
• 10 = 1.0″ case length
• 10 = 1.0 meter cable
• 01 = ClickLoc connector with protector
• 00 = No special approvals needed

Key Specifications

• Cable type: Triaxial 75Ω FEP
• Probe resistance: 5.9Ω ±0.5
• Thread size: 1/2-20 UNF
• Max torque: 45.2 N•m (do not exceed)
• Bend radius: Keep >25.4mm
• Weight: 0.17kg

Installation Notes

• Use 15.2 N•m torque for installation
• Max thread engagement: 0.75″
• Hand-tighten connectors only
• Avoid sharp cable bends

5 Common Questions

• Q: What’s the minimum temperature for safe operation?
  A: Don’t use below -34°C to prevent seal damage
• Q: Can I use this in wet areas?
  A: Yes, the FluidLoc cable resists moisture
• Q: How long does shipping take?
  A: Typically 3-5 days via FedEx/UPS/DHL
• Q: What tools do I need for installation?
  A: Just a torque wrench and thread sealant
• Q: Is calibration required?
  A: No, it’s ready to use out of the box

Warranty & Shipping

• 12-month coverage for defects
• Fast worldwide shipping available
• Tracking provided with all orders
