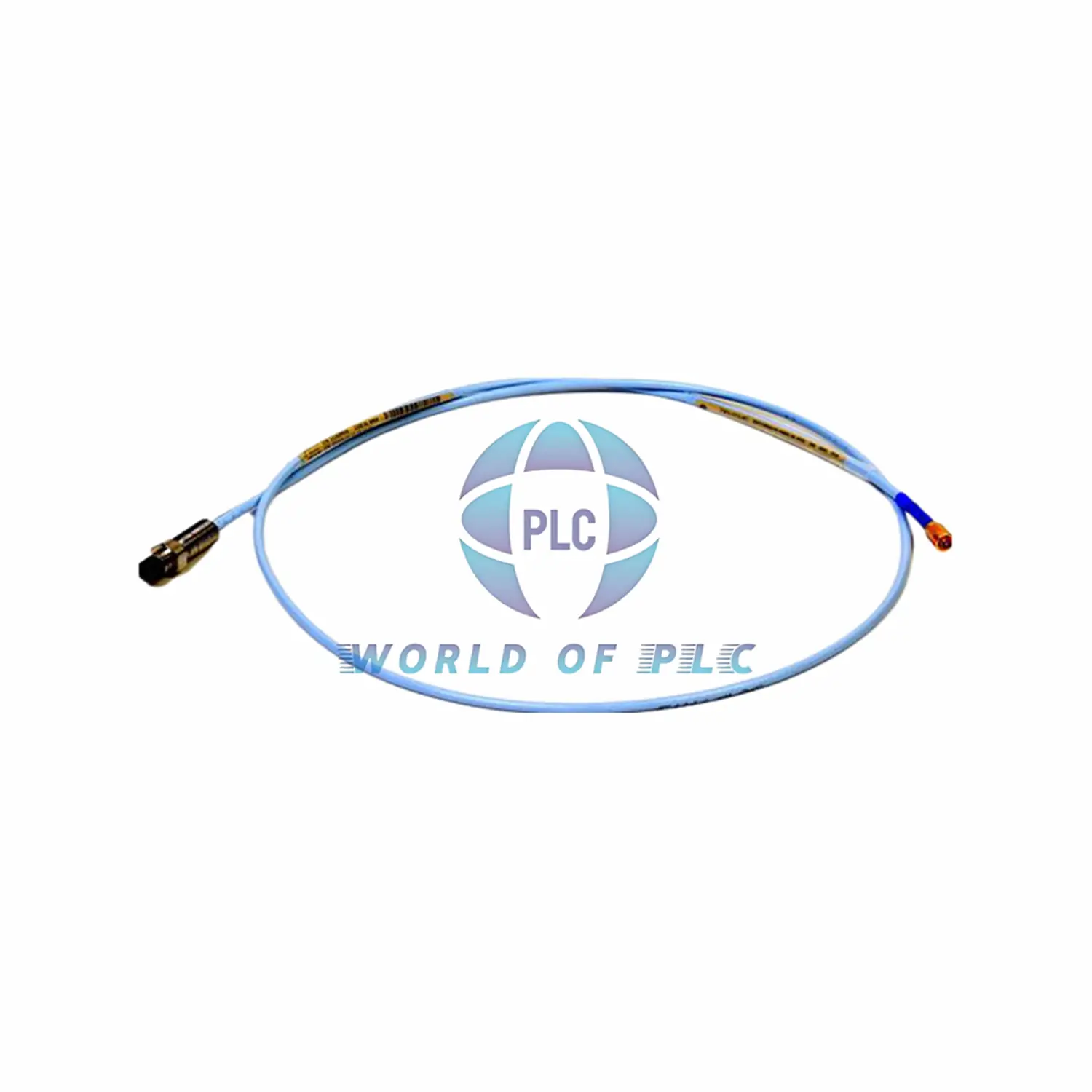

Bently Nevada 3300 XL 8 mm Probe | 330140-08-10-11-05 | Without Armor

Bently Nevada 3300 XL 8mm Industrial Probe (Model 330140-08-10-11-05)

Key Features

• 1-Year Warranty | CSA/ATEX/IECEx Certified (Approval Code 05)
• FluidLoc™ Cable blocks oil/liquid leaks | 330N (75 lb) pull-proof design
• Includes optional Certificate of Origin (COO) upon request

Technical Specifications

• Model: 330140-08-10-11-05
• Case: 0.8″ AISI 303/304 stainless steel
• Cable: 1.0m (3.3ft) with ClickLoc connector
• Resistance: 7.59Ω ±0.50 at 20°C
• Weight: 323 g/m (11.4 oz/ft)

Certified Performance

• -52°C to +218°C Operation (-62°F to +425°F)
• ±0.025mm accuracy (±1 mil) in 1m/5m systems
• Tested at 93% humidity for 56 days (IEC 68-2-3)
• Viton® O-ring seals 35 PSI pressure differences

Safety Approvals

This 3300 XL probe meets CSA, ATEX, and IECEx standards for use in explosive atmospheres and hazardous locations.

Why This Model?

• 25% thicker PPS plastic tip vs standard probes
• Withstands temperatures down to -34°C (-30°F) without seal damage
• 7.87V/mm output (±5%) for precise vibration monitoring
