Bently Nevada | 3300 XL 8 mm Proximity Probe 330101-50-80-10-11-CN

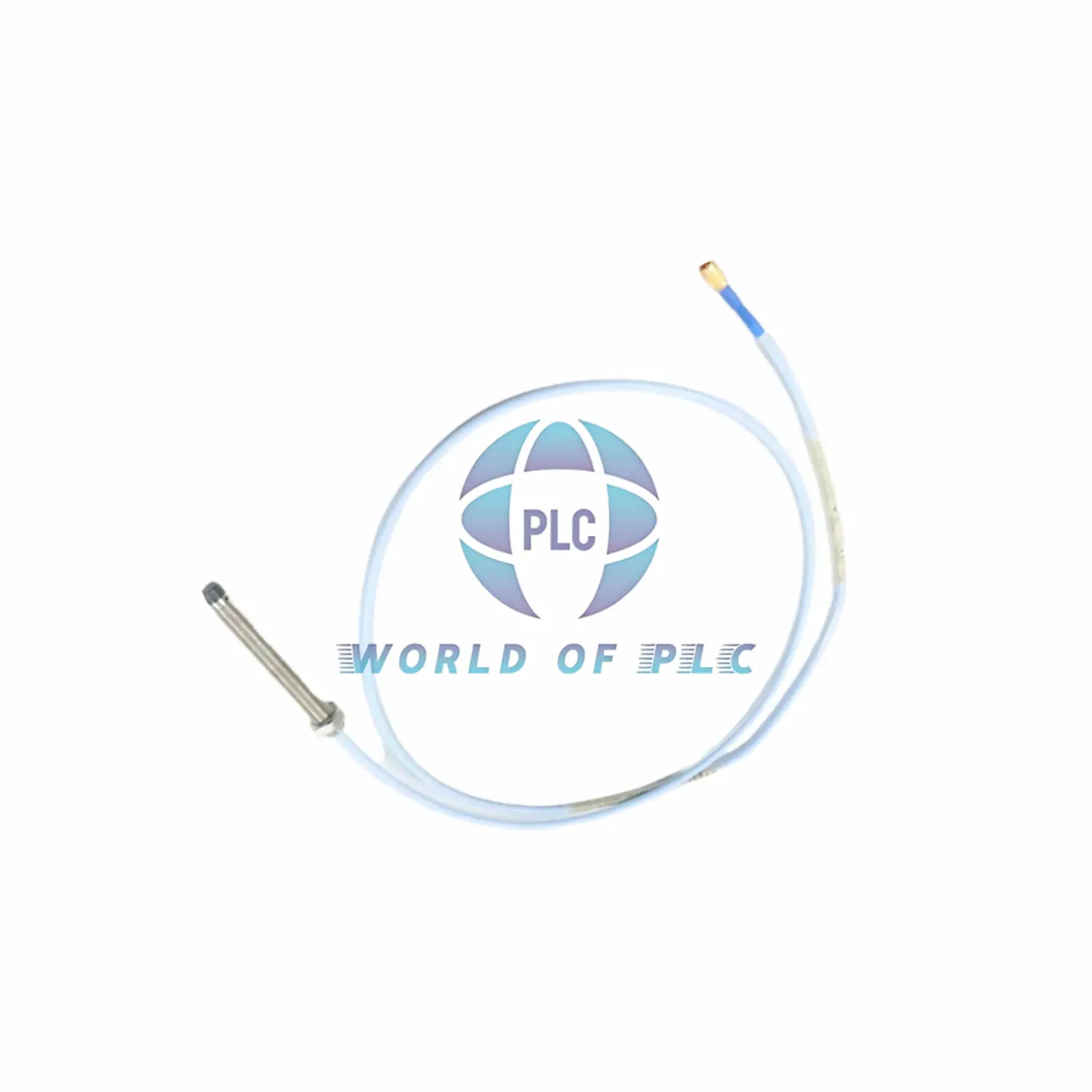

Bently Nevada 3300 XL 8 mm Probe: Robust Design with Advanced Features

🔍 Product Overview

Model: 330101-50-80-10-11-CN
This 3300 XL 8 mm vibration probe features a 3/8-24 UNF thread, AISI 303/304 stainless steel case, and 1.0-meter FluidLoc cable with Miniature ClickLoc connector. Designed for industrial machinery monitoring, it offers 75 lbf pull strength and 1-year warranty.

⚙️ Key Specifications

• Unthreaded Length: 5.0 in (50)
• Case Length: 8.0 in (80)
• DC Resistance: 7.59Ω ±0.50 @1m
• Linear Range: 0.25-2.3mm (-1 to -17Vdc)
• Weight: 323g/m (11.4 oz)

🛡️ Durability Features

The 8 mm PPS probe tip provides 2x thicker encapsulation than standard probes. Withstands -62°F to +425°F (Extended Temp Range) and 93% humidity (IEC 68-2-3 compliant). Vitron® O-ring ensures pressure sealing for industrial environments.

📊 Performance Metrics

• Scale Factor: 7.87 V/mm ±5%
• Capacitance: 69.9 pF/m (cable)
• Max Wiring: 305m (1000 ft)
• Optimal Gap: -9Vdc @1.27mm

🔌 Connection Details

Option 11 Configuration:
– Miniature coaxial ClickLoc connector
– IP67-rated connector protector
– FluidLoc technology prevents oil migration
– Compatible with 16-24 AWG shielded triad cables

🌐 Suffix Decoding: 330101-50-80-10-11-CN

• 50: 5.0″ unthreaded length
• 80: 8.0″ case length
• 10: 1.0m total length
• 11: ClickLoc connector + FluidLoc
• CN: Country-specific certification
