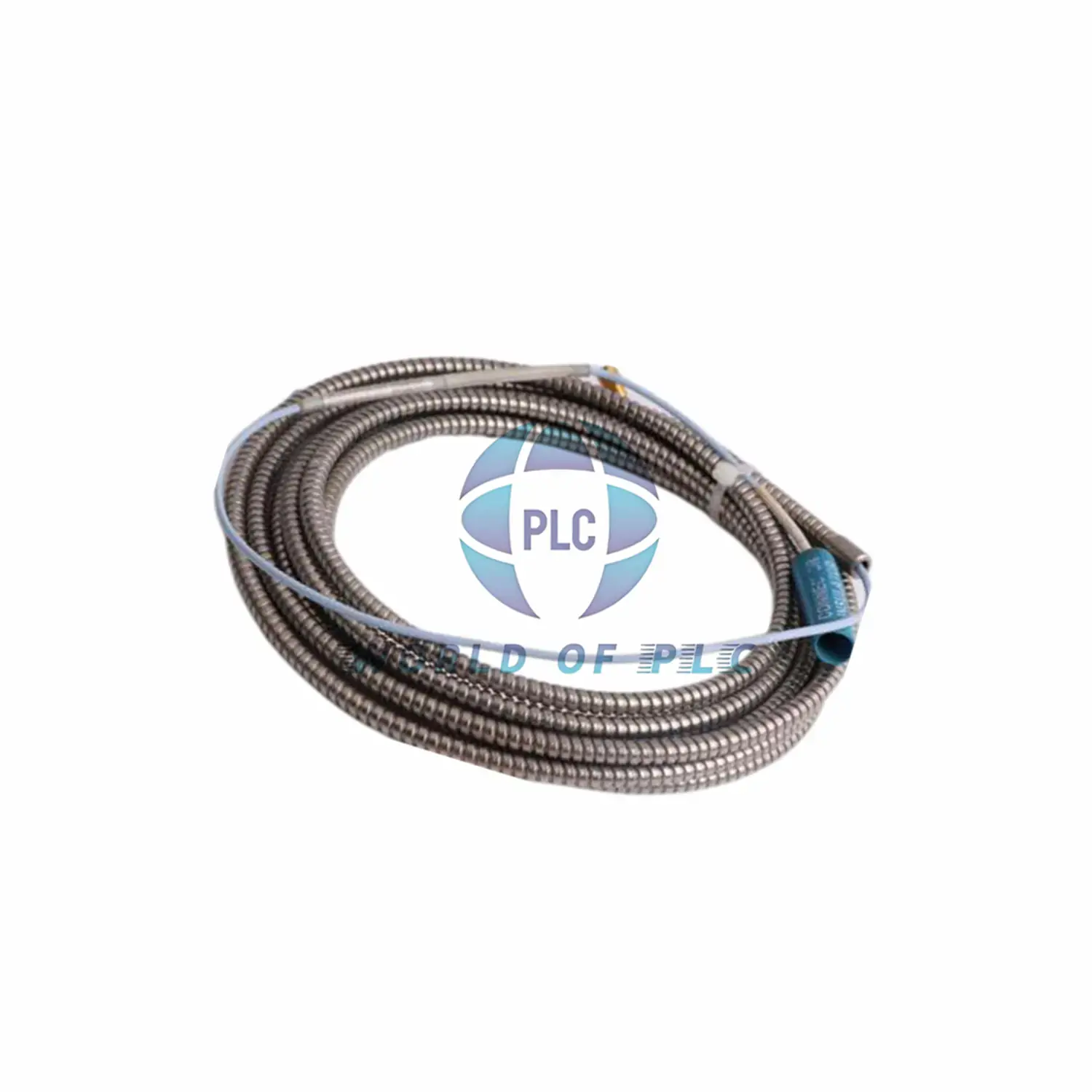

Bently Nevada – 3300 XL 8mm – 330130-045-13-05 – Extension Cable

Bently Nevada 330130-045-13-05 Armored Cable

🔐 Key Features

• Model: 330130-045-13-05 | Made in USA
• Certified: CSA, ATEX, IECEx Approved
• Armored FluidLoc: 330N (75 lbs) pull strength + oil leak protection
• 1-Year Warranty | COO document available

📏 Core Specs

• Length: 4.5 meters (14.8 ft) | Weight: 0.618 kg
• Wire Resistance: 0.99Ω ±0.15 (inner) | 0.30Ω ±0.06 (outer)
• Voltage Range: -17.5V to -26V DC
• Works At: Up to 2000m altitude

⚡ Performance

• Measures gaps: 0.25-2.3mm (AISI 4140 steel)
• Humidity tested: ≤3% change after 56 days (93% humidity)
• Max wiring distance: 305 meters (1,000 ft)
• Temperature range: +18°C to +27°C (+64°F to +80°F)

⚠️ Usage Notes

• ❌ Don’t use silicone tape in oily areas
• ✅ Includes Viton® O-ring seal (custom pressure tests available)
• 🔧 Requires 16-24 AWG shielded cable
