Bently Nevada | 3300 XL 8mm Proximity Probe 330106-05-30-50-02-CN

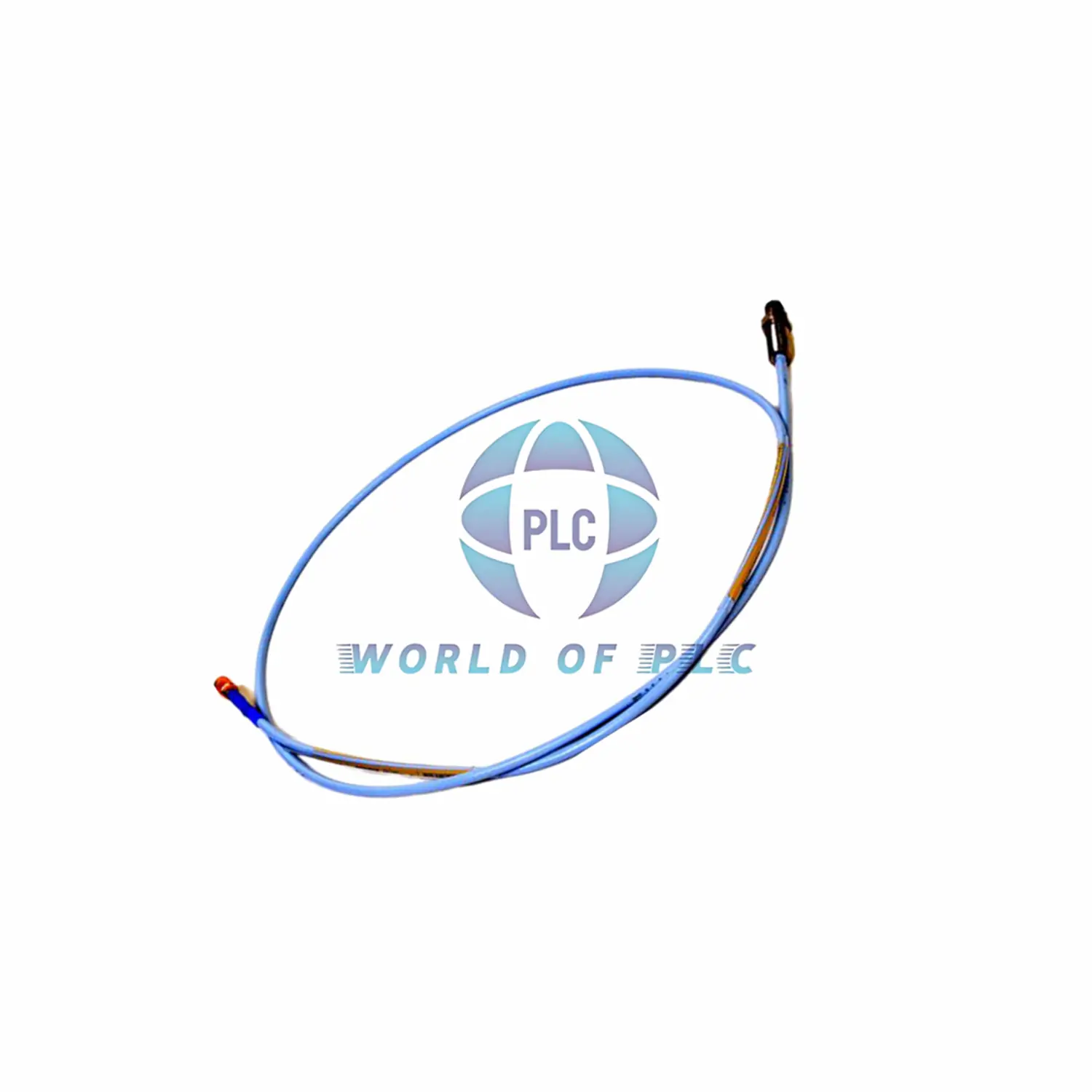

Bently Nevada 330106-05-30-50-02-CN Reverse Mount Probe

Product Overview

The Bently Nevada 330106-05-30-50-02-CN is a reverse mount probe from the 3300 XL 8 mm series. It is designed for industrial monitoring of rotating equipment. This probe features a miniature ClickLoc connector and is built with durable stainless steel housing for high reliability.

Key Technical Parameters

• Measurement Range: Up to 2 mm linear range
• Accuracy: ±0.07 mm typical
• Output Signal: Compatible with 3300 XL systems
• Resistance: 8.73 ± 0.50 Ohms at 5.0 m
• Working Temperature (Standard): -52°C to +177°C
• Working Temperature (Extended): -52°C to +218°C (probe tip), -51°C to +260°C (cable)
• Thread Size: M10 x 1
• Material: PPS tip, stainless steel case

Installation Guidelines

• Ensure maximum 15 mm thread engagement
• Mount probe with ClickLoc connector aligned properly
• Avoid excessive bending of the probe cable

Compatibility

• Works with 3300 XL extension cables and drivers
• Standard and Extended Temperature cables supported

Model Tree Breakdown

• 330106 – Probe base model
• 05 – Tip diameter 8 mm
• 30 – Reverse mount
• 50 – 5.0 meter length
• 02 – Miniature ClickLoc connector
• CN – Country-specific agency approval

Warranty and Shipping

• 12-month warranty from delivery date
• Ships via FedEx, UPS, or DHL
• Tracking number provided upon dispatch
