Overview

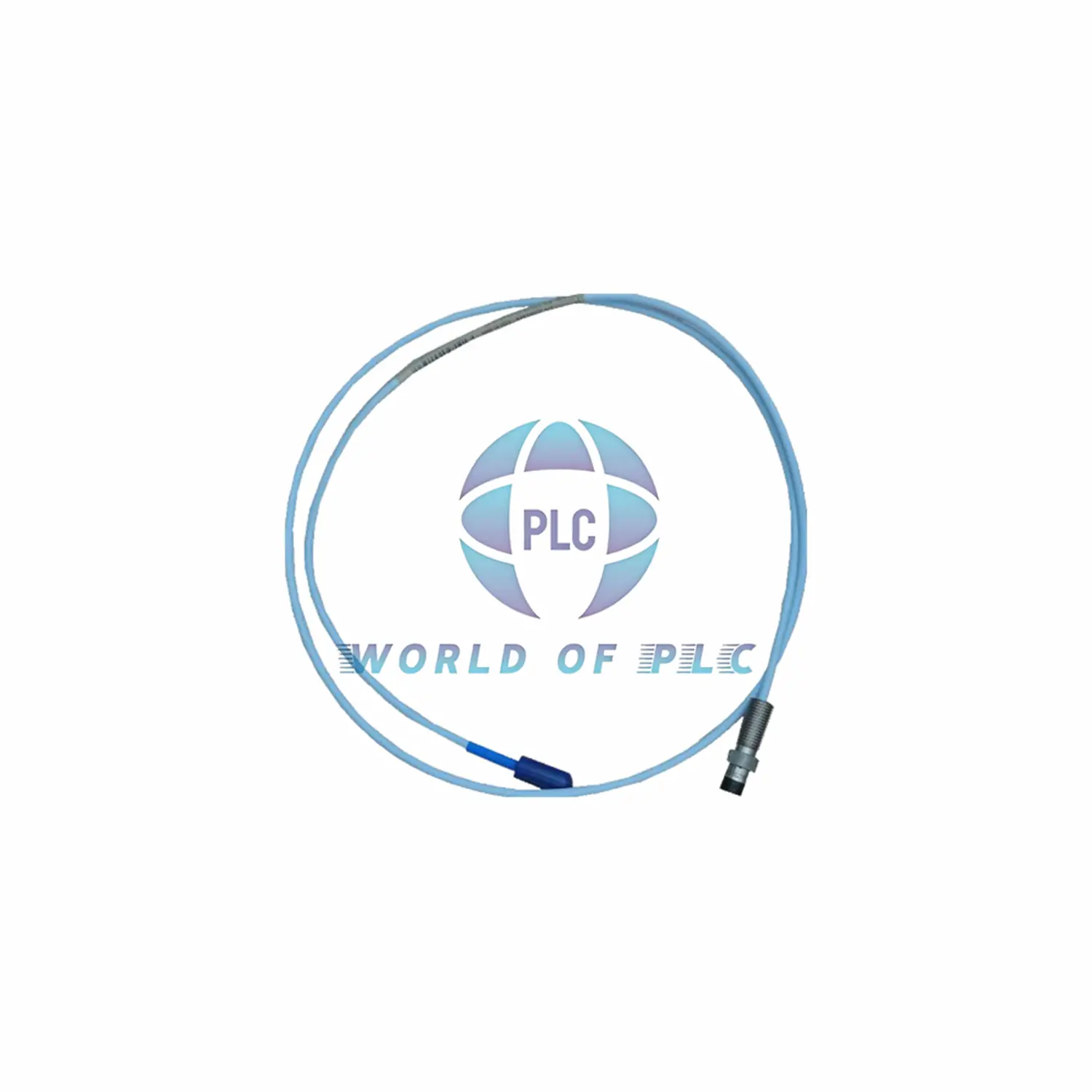

The Bently Nevada 3300XL Proximity Probe (Model 330102-40-62-05-02-05) combines extended reach with precision monitoring. Featuring a 6.2″ armored case and 4″ unthreaded section, it excels in deep-mount installations. Certified for explosive environments (CSA/ATEX/IECEx), it operates from -52°C to +260°C with a 0.5m cable and IP67-rated ClickLoc connector.
Model Identifier Breakdown (Model 330102-40-62-05-02-05)
40
4.0″ Unthreaded
101.6mm smooth shaft
101.6mm smooth shaft
62
6.2″ Case
157.5mm hardened SST body
157.5mm hardened SST body
05
0.5m Cable
1.6ft shielded triad wiring
1.6ft shielded triad wiring
02
ClickLoc®
Tool-free M12x1 interface
Tool-free M12x1 interface
05
Certifications
Zone 0/Div 1 approved
Zone 0/Div 1 approved
Technical Highlights
◼ Signal Integrity
- • EMI Resistance: <-70dB @ 100MHz
- • Phase Linearity: ±0.8° @ 10kHz
- • Crosstalk: -68dB adjacent channels
◼ Mechanical Performance
- • Axial Load: 65N maximum
- • Shock Survival: 80g (6ms pulse)
- • Thread Hardness: HRC 38
Environmental Resilience
- ▹ Thermal Shock: 100 cycles (-40°C↔+150°C)
- ▹ Salt Spray: 1000hrs @ 5% NaCl
- ▹ Ingress Protection: IP69K washdown rating
