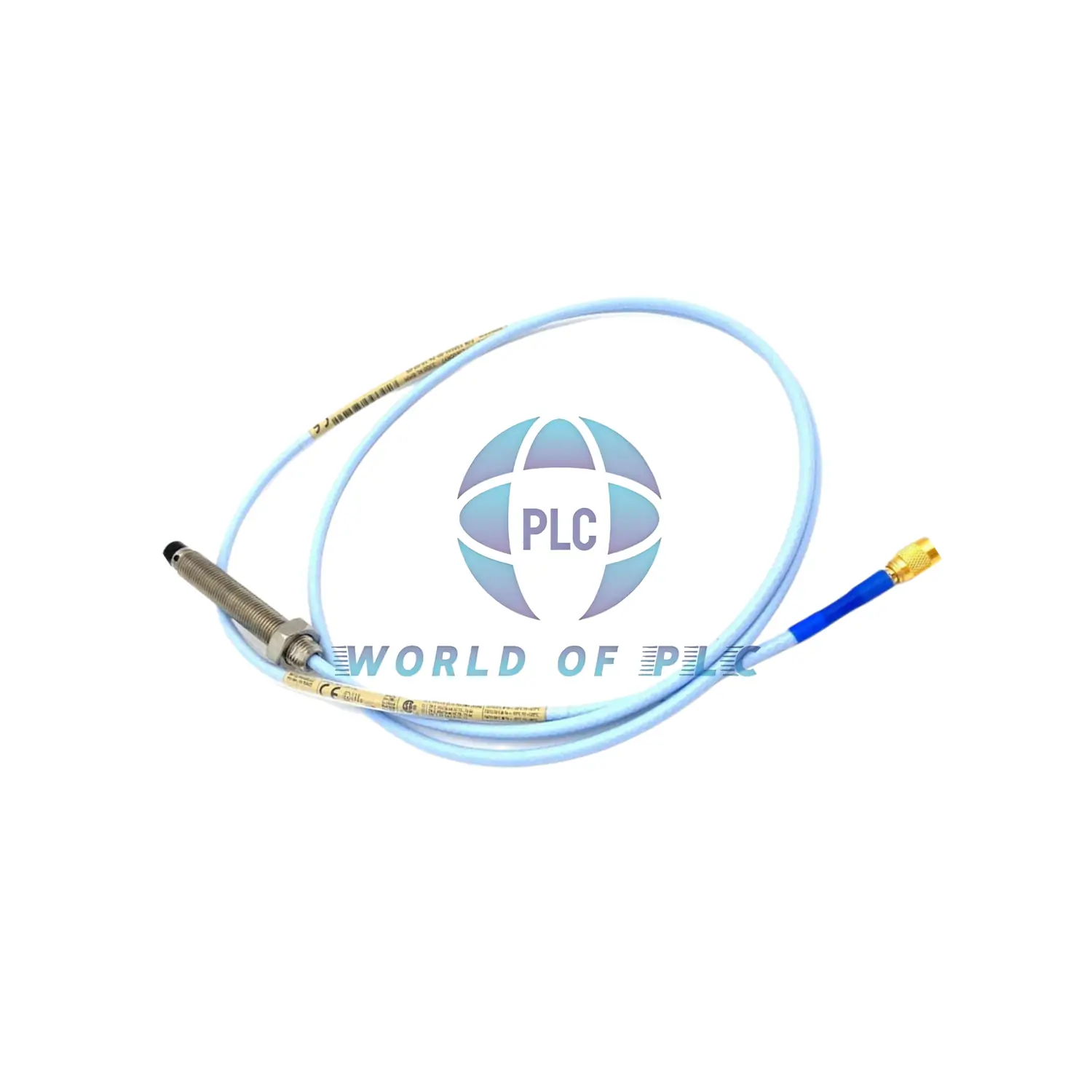

Bently Nevada | 330101-00-11-10-02-CN 3300 XL 8 mm Proximity Probe

Product Overview

The Bently Nevada 330101-00-11-10-02-CN is an industrial-grade 8mm vibration sensor. Built with a 3/8-24 UNF thread and no armor, it’s perfect for tight spaces. Includes a 1-year warranty and U.S. origin certification.

Key Details for 330101-00-11-10-02-CN

• No Threads: 0.0 in unthreaded section
• Compact Case: 1.1 in overall length
• Cable: 1.0 meter (3.3 ft) with ClickLoc connector
• Approvals: CN-certified for local standards

Built Tough

• TipLock Design: Survives 75 lbs pull force at the tip
• Leakproof Option: Add FluidLoc to block oil leaks
• Materials: Stainless steel body + PPS plastic tip

Performance

• Range: Measures 2.0mm (80 mils) vibrations
• Best Setup: Gap at 1.27mm (50 mils)
• Accuracy: ±1 mil error in readings
• Weight: 323 g/m (11.4 oz) cable

Works in Harsh Conditions

• Temperature: From -62°F (-52°C) to +350°F (+177°C)
• Humidity: Less than 3% error in damp air
• Seal: Viton® O-ring (ask for pressure tests)
