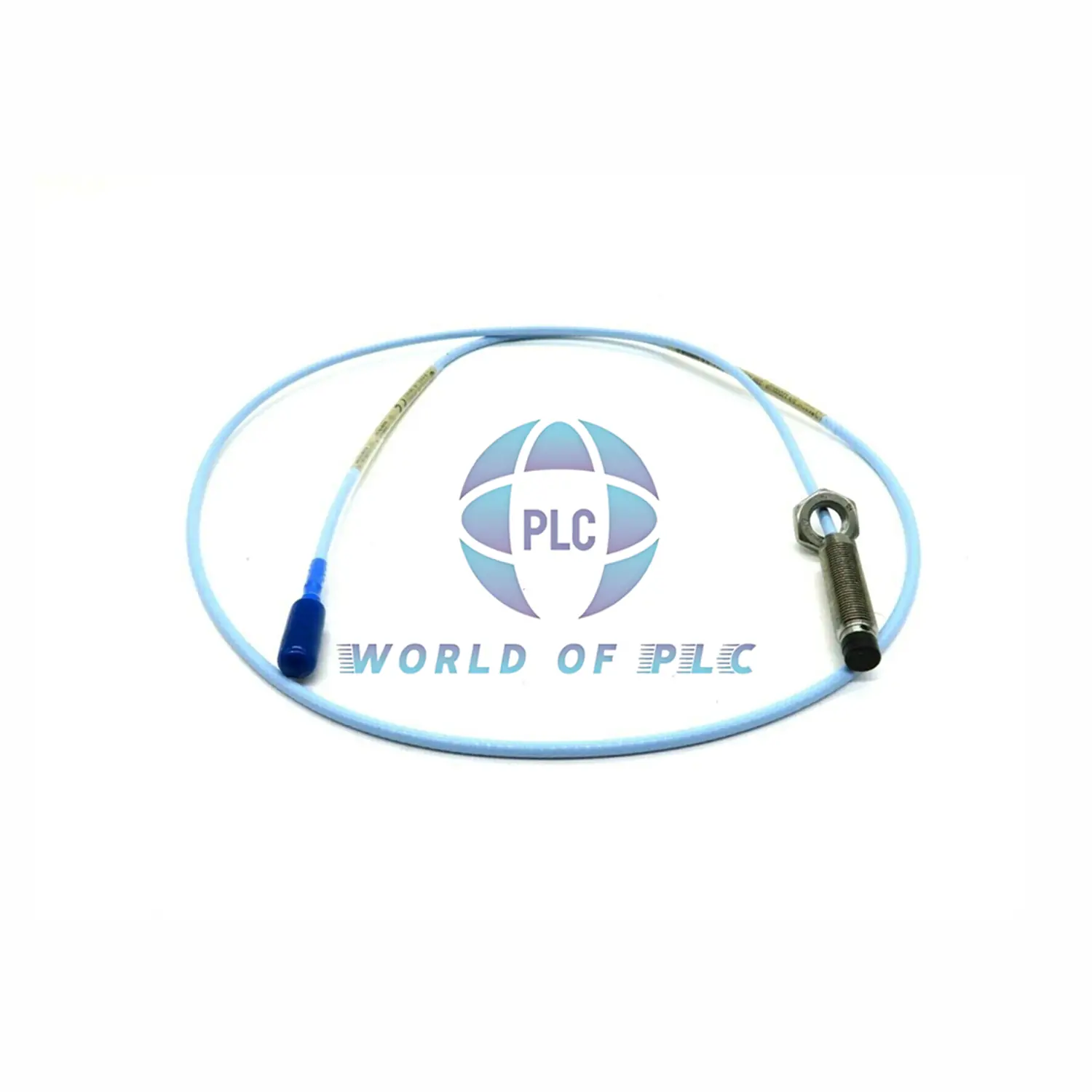

Bently Nevada | 330101-00-20-05-02-CN 3300 XL 8 mm Proximity Probe

Product Overview

The Bently Nevada 3300 XL 8 mm Probe (Model 330101-00-20-05-02-CN) monitors machine vibration with a heavy-duty 8 mm tip. Built for tough conditions, it features 3/8-24 UNF threading and 1-year warranty.

Key Details

• Model: 330101-00-20-05-02-CN
• No threads: 0.0 in (Code 00)
• Case length: 2.0 in (Code 20)
• Cable: 0.5 m / 1.6 ft (Code 05)
• Connector: ClickLoc (Code 02)
• Certified: Country-specific (Code CN)

Built to Last

• TipLock Tech: Holds tip firmly (75 lbf pull strength).
• FluidLock Add-On: Blocks oil leaks (extra cost).
• Materials: Stainless steel body + PPS plastic tip.
• Weight: 11.4 oz per meter.

Technical Specs

• Resistance: 7.45 Ω ± 0.50 (0.5 m cable)
• Measure Range: 0.25-2.3 mm (10-90 mils)
• Temp Range: -62°F to +350°F (standard)
• High Heat: Works up to +500°F (cable)
• Seal: Viton® O-ring (pressure tests available)

Reliability Features

• Humidity Proof: Works in 93% wet air for 56 days.
• Wiring: Use 16-24 AWG cables (max 1000 ft)
• Scale Accuracy: ±5% at 32°F-113°F
