Product Overview
- Manufacturer: Bently Nevada
- Product No.: 330103-02-08-10-02-00
- Product Type: 3300 XL 8 mm Proximity Probes, Metric
- Availability: In Stock, Fast Delivery within 12-48 Hours
- Shipping Carriers: FedEx, UPS, DHL
- Warranty: 12 Months Warranty

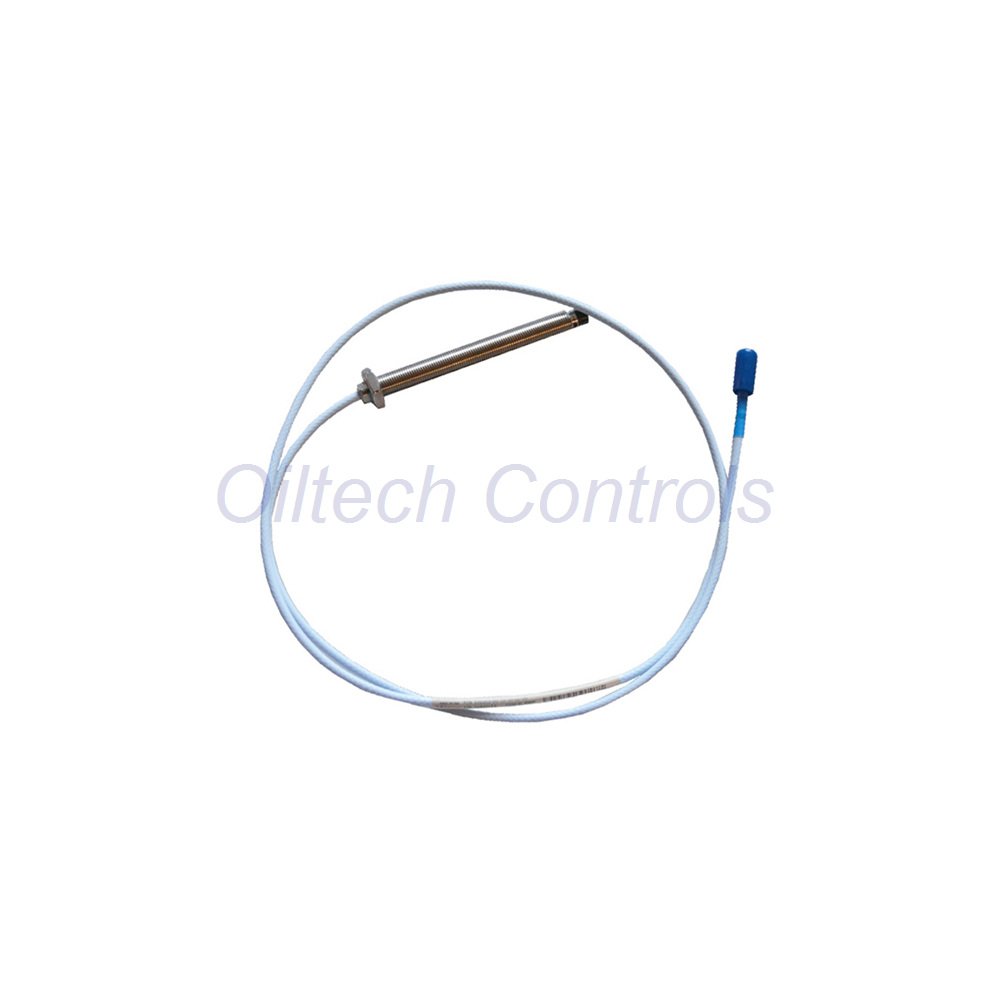

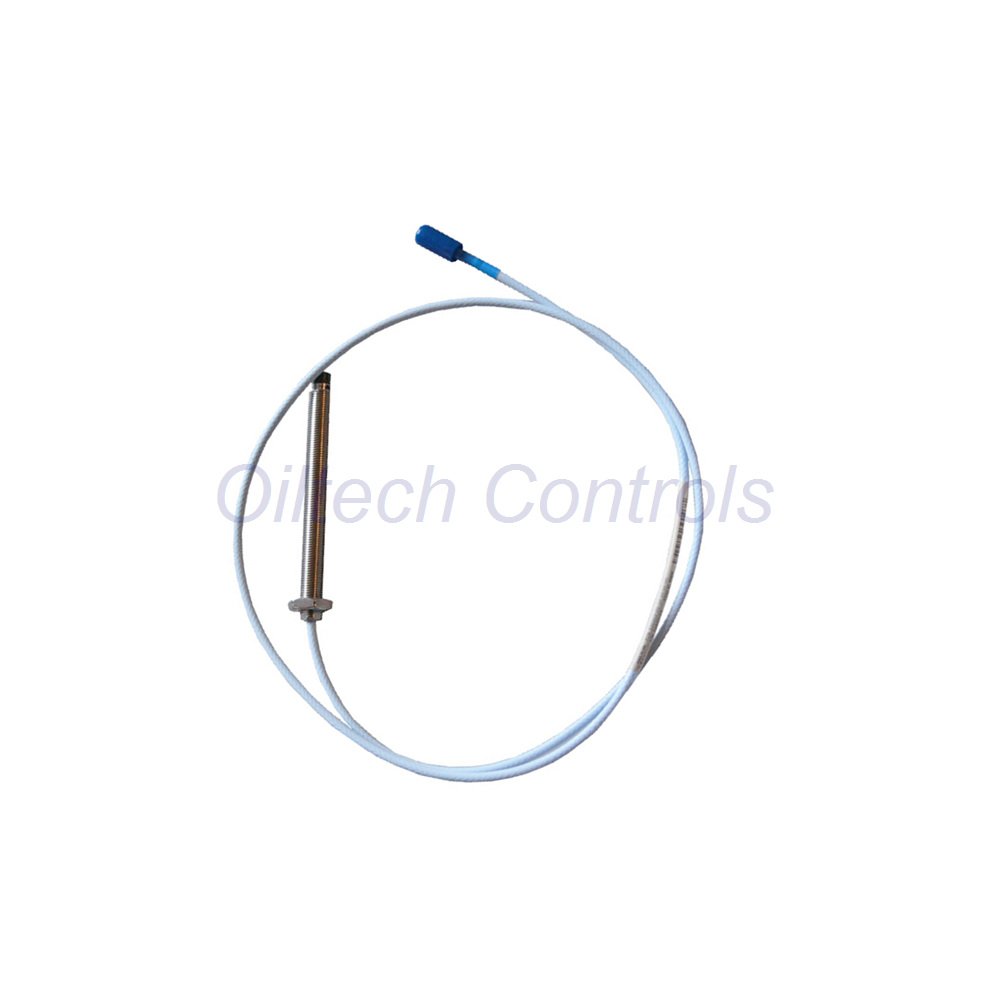

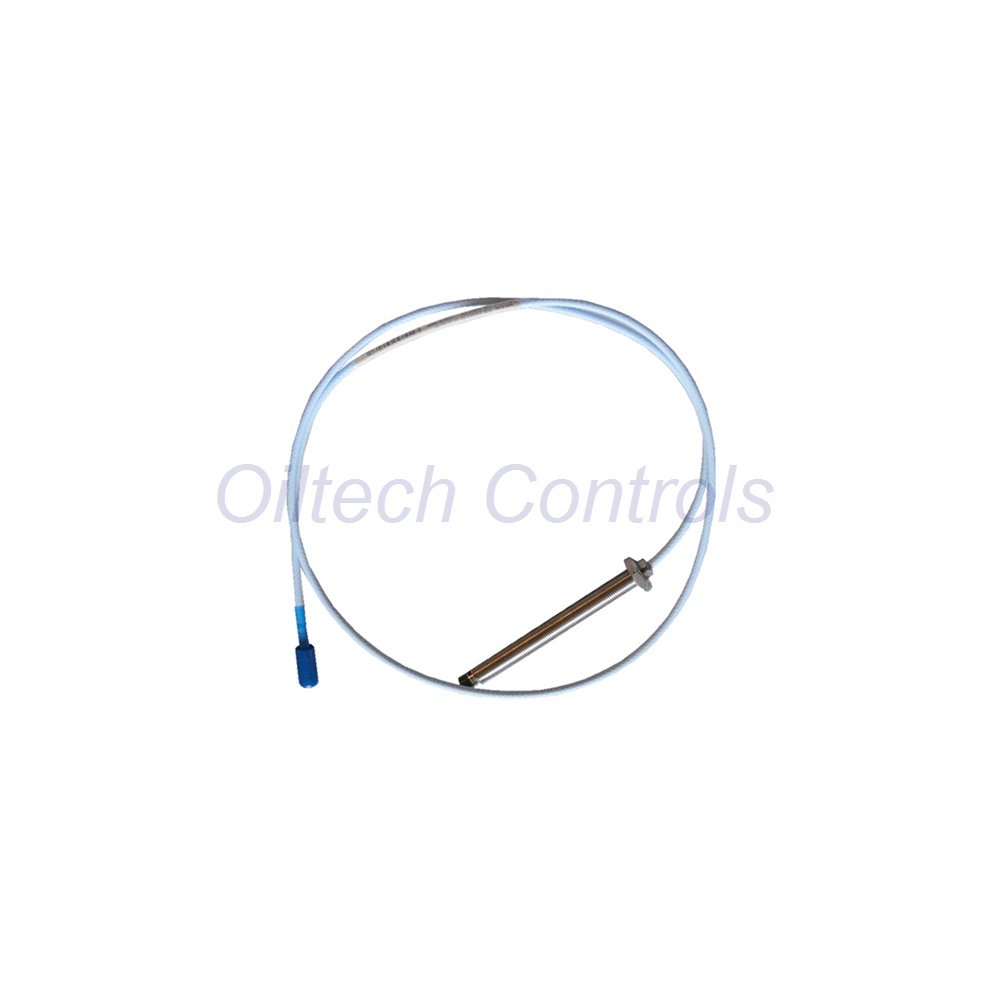

330103-02-08-10-02-00 is a metric proximity probe from the 3300 XL series. Engineers use this sensor to measure vibration and position in industrial machinery. The probe delivers high accuracy in harsh industrial environments. It detects changes in gap distance between the probe tip and the observed metal target. The unit features advanced design to resist noise and extreme temperatures.
Configuration Breakdown
- 330103: 3300 XL 8 mm Probe, M10 x 1 thread, without armor
- Unthreaded Length Option: 02 = 20 mm
- Overall Case Length Option: 08 = 80 mm
- Total Length Option: 10 = 1.0 meter (3.3 feet)
- Connector and Cable-Type Option: 02 = Miniature coaxial ClickLoc connector, standard cable
- Agency Approval Option: 00 = Not required
Technical Data
- Brand: Bently Nevada
- Model: 330103-02-08-10-02-00
- Series: 3300 XL
- Linear Range: 2 mm (80 mils)
- Linear Range Span: 0.25 to 2.3 mm (10 to 90 mils)
- Voltage Output: -1 to -17 Vdc
- Recommended Gap Setting: -9 Vdc (approximately 1.27 mm or 50 mils)
- Probe Tip Material: Polyphenylene sulfide (PPS)
- Probe Case Material: AISI 303 or 304 stainless steel (SST)
- Probe Case Thread: M10 x 1
- Maximum Thread Engagement: 15 mm
- Probe Weight: 323 g/m (11.4 oz)
- DC Resistance: 7.59 ± 0.50 ohms (center to outer conductor for 1.0m probe)
- Standard Temperature Range: -52°C to +177°C (-62°F to +350°F)
- Extended Temperature Range: -52°C to +218°C for tip; -51°C to +260°C for cable
- Relative Humidity Limit: Less than 3% change in Average Scale Factor at 93% humidity
Installation Guidelines
- Use 0.2 to 1.5 mm2 (16 to 24 AWG) field wiring.
- Select 3-conductor shielded triad cable with tinned wiring.
- Keep total wiring length under 305 meters (1,000 feet) between sensor and monitor.
- Avoid exposing the probe tip to temperatures below -34°C (-30°F) to protect the Viton O-ring pressure seal.
Compatibility and Certifications
- Intrinsically Safe Approval: Class I, Zone 0: AEx/Ex ia IIC T5…T1 Ga; Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III
- Nonincendive Approval: Class I, Zone 2: AEx/Ex nA IIC T5…T1 Gc; Class I, Division 2, Groups A, B, C, D
- Energy Limiting Compliance: Compatible with zener barriers (drawing 141092) and galvanic isolators
Target Applications and Equipment
- Steam Turbines
- Gas Turbines
- Centrifugal Compressors
- Large Pumps and Motors
- Industrial Gearboxes
Manager’s Insight
330103-02-08-10-02-00 offers superior reliability for critical rotating machinery. Plant operators trust this sensor for continuous vibration monitoring. The robust PPS tip and stainless steel case withstand harsh chemical and thermal environments. Engineers gain accurate machinery health data to prevent unexpected failures. We maintain stock of this part for rapid dispatch to minimize plant downtime.
Frequently Asked Questions
- Question: How does the sensor seal pressure?
Answer: The probe seals differential pressure using a Viton O-ring located between the tip and case. - Question: What cable type works best for field wiring?
Answer: Engineers should use a 3-conductor shielded triad cable for optimal noise rejection. - Question: Can this probe operate in hazardous locations?
Answer: Yes, the unit holds ATEX, IECEx, and CSA approvals for hazardous zones when paired with approved barriers. - Question: How do I select the right probe length for my machine?
Answer: Match the case thread and unthreaded length to your mounting bracket thickness and machinery clearance requirements.
Manual Download
Please download the official product manual here: Download Bently Nevada 3300 XL Series Manual
