Bently Nevada – 330106-05-30-90-12-00 | 3300 XL 8mm Proximity Probe

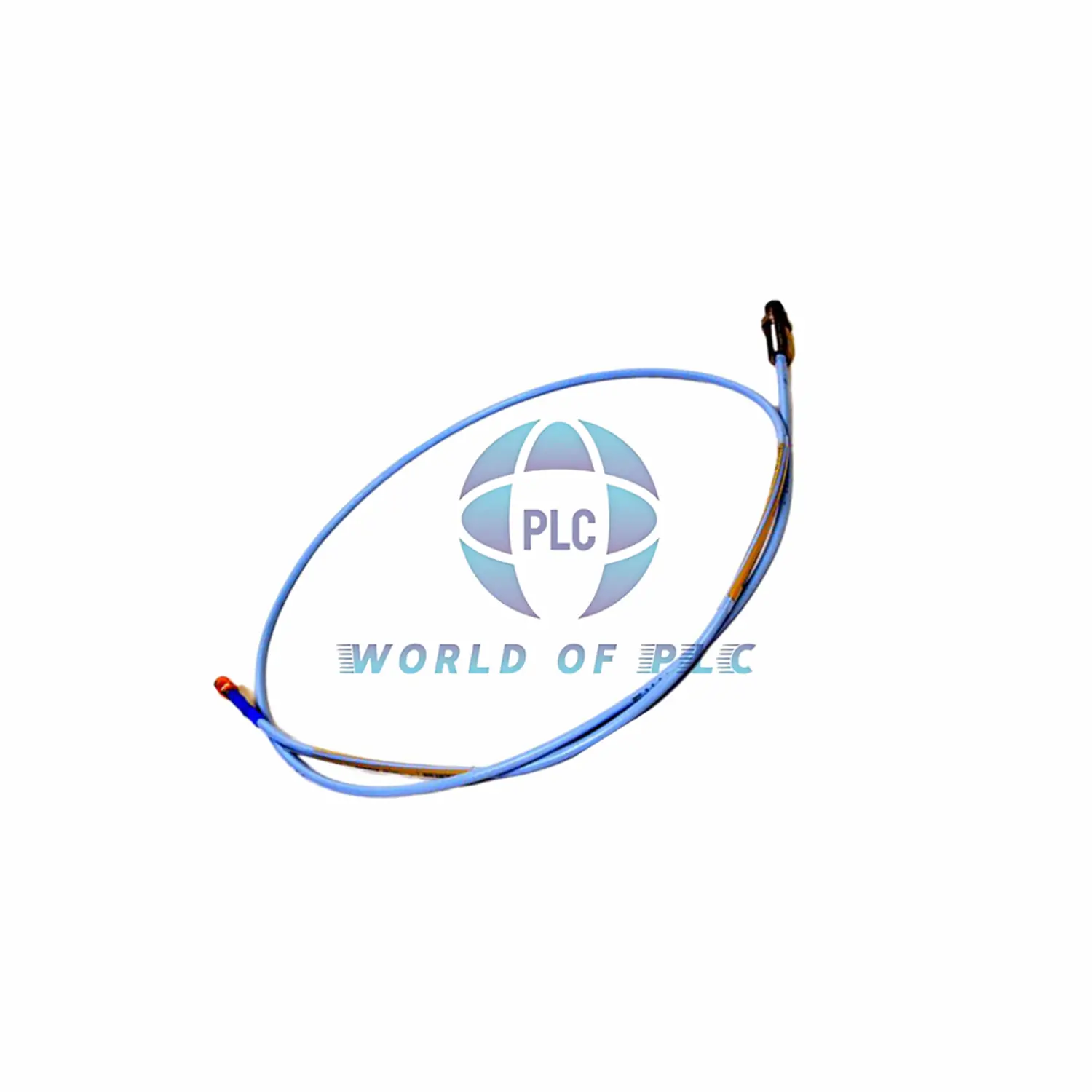

Bently Nevada 330106-05-30-90-12-00 3300 XL 8 mm Reverse Mount Probe

Main Product Info

• Part Number: 330106-05-30-90-12-00
• Thread Size: M10 x 1
• Total Length: 9.0 meters (29.5 feet)
• Connector: Miniature ClickLoc coaxial with FluidLoc cable
• Approval Option: 00 = No agency approval
• Tip Material: PPS (Polyphenylene sulfide)
• Case Material: Stainless steel (AISI 303 or 304)
• Resistance: 9.87 ± 0.50 ohms

Temperature Limits

• Standard Probe: -52°C to +177°C
• Tip Extended: -52°C to +218°C
• Cable Extended: -51°C to +260°C

Mounting Guide

• Use M10 x 1 threaded hole
• Thread depth must not exceed 15 mm
• Clean the port before mounting

System Compatibility

• Fits Bently Nevada 3300 XL systems
• Connects with matching proximitor and cable
• Ideal for reverse mount where space is tight

More Features

• Weight: 323 grams per meter
• Seal: Viton O-ring (not tested)
• Humidity: Less than 3% change after 56 days at 93% RH
• Use Limit: Do not use below -34°C

Model Code Structure

• 330106: 8 mm reverse mount probe
• 05: Cable code for 9.0 m
• 30: Standard target material
• 90: Total probe length 9.0 m
• 12: Mini ClickLoc connector with FluidLoc cable
• 00: No approval required
