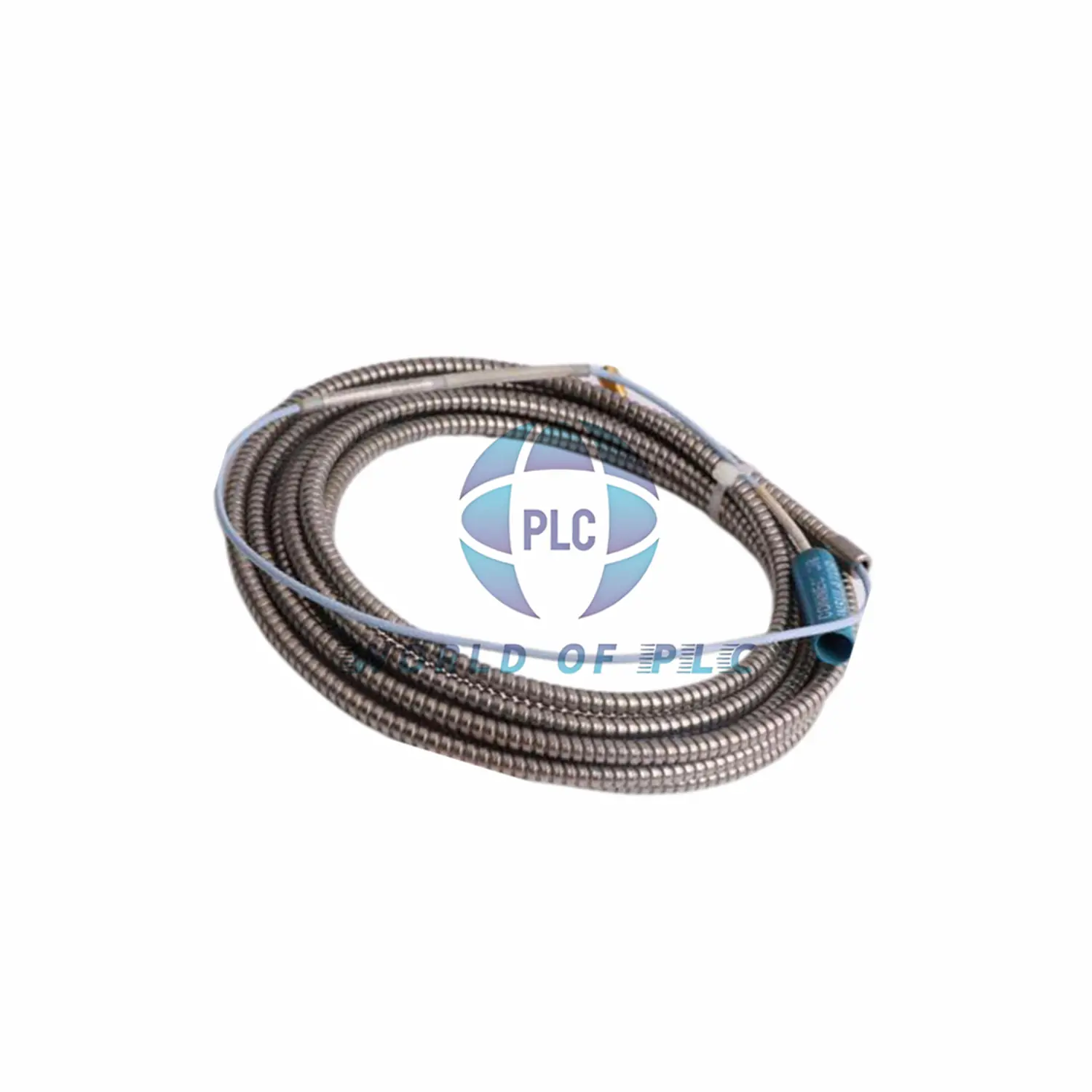

Bently Nevada – 330130-085-01-CN 3300 XL 8mm Extension Cable

Bently Nevada Premium Armored Extension Cable

Product Description

High-performance extension cable designed for 3300 XL vibration monitoring systems. Features armored protection for industrial durability and includes silicone tape for connector protection. Made in USA with country-specific approvals.

Technical Specifications

• Brand: Bently Nevada
• Full Model: 330130-085-01-CN
• Suffix Breakdown:
  • 085 = 8.5 meter length (27.9 feet)
  • 01 = Armored cable construction
  • CN = Country-specific approval
• Weight: 0.875 kg (armored version)
• DC Resistance:
  • Center conductor: 1.87 Ω ± 0.28 Ω
  • Outer conductor: 0.56 Ω ± 0.11 Ω
• Capacitance: 69.9 pF/m typical
• Output Resistance: 50 Ω
• Voltage Range: -17.5Vdc to -26Vdc
• Operating Temp: +18°C to +27°C
• Humidity Resistance: <3% ASF change in 93% humidity

Installation Guide

Total length must equal probe + extension cable combined. Use 3-conductor shielded triad cable (0.2-1.5 mm²). Max field wiring: 305 meters. Never use silicone tape in turbine oil environments.

System Compatibility

For 3300 XL 8mm systems only. Requires calibration with AISI 4140 steel target at 1.27mm gap. FluidLoc option available for oil-sealing applications.

Approvals

Country-specific certification (CN). Passes IEC 68-2-3 humidity testing. Complies with international industrial standards.

Packaging Includes

• 1x Armored extension cable (8.5 meters)
• Silicone tape for connector protection

Warranty & Shipping

12-month warranty. Ships worldwide via FedEx, UPS, DHL.
