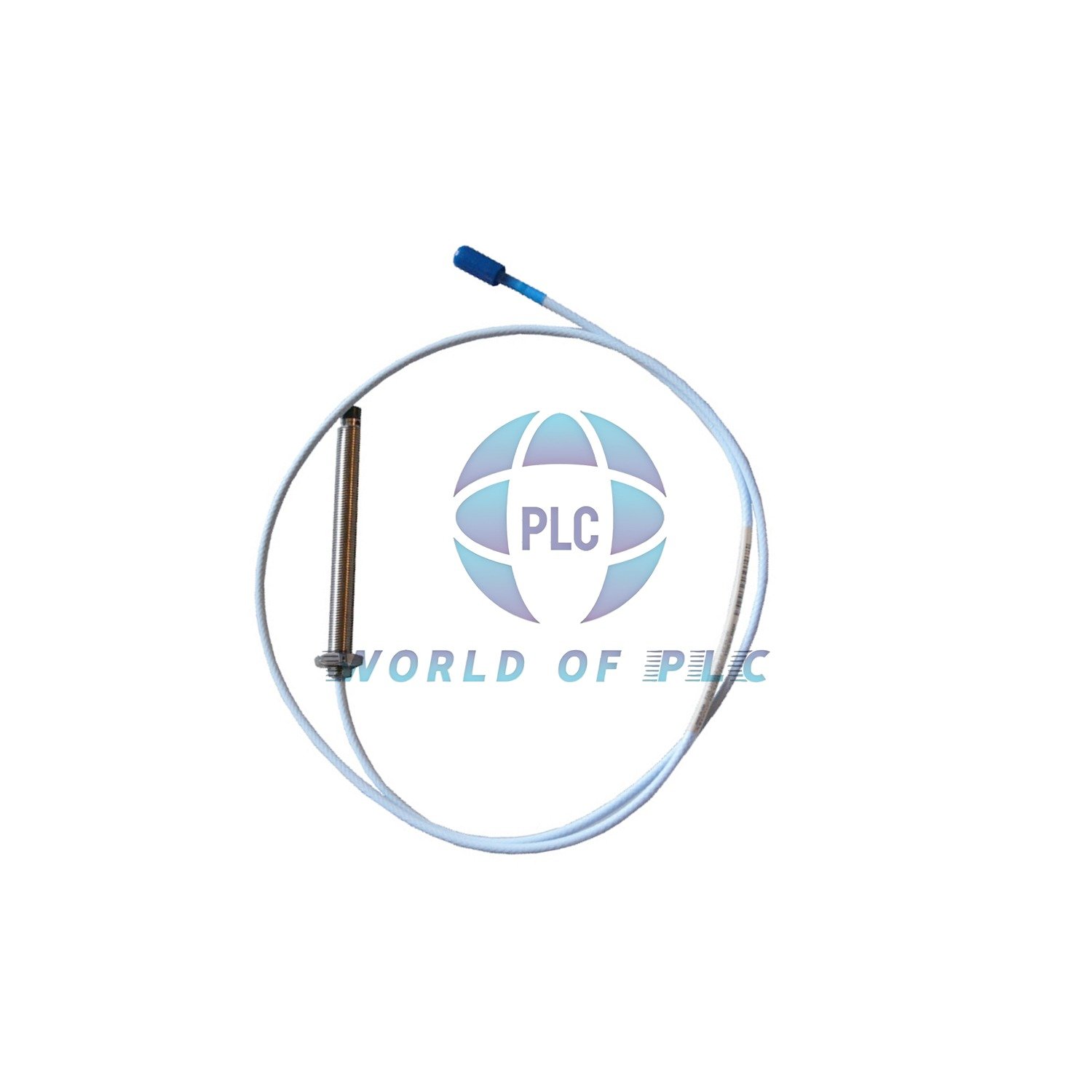

Bently Nevada | 330171-00-08-05-02-CN-5mm Proximity Probe

Bently Nevada – Precision Vibration Probe

Model Number Breakdown

• 330171-00-08-05-02-CN configuration:
• 00 → 0″ unthreaded length
• 08 → 0.8″ case length
• 05 → 0.5m cable
• 02 → ClickLoc™ connector
• CN → Country-specific approval

Technical Specifications

• Thread: 1/4-28 UNF (max 0.375″ engagement)
• Power: -17.5V to -26V DC, 12mA max
• Temp Range: -35°C to +177°C
• Resistance: 7.45Ω ±0.50
• Torque: 5.1-7.3 N·m (45-65 in-lb)
• Accuracy: ±1% full scale
• Response: <1ms

Installation Guide

• Use #3 or larger tap drill
• Apply 5.1 N·m torque (45 in-lb)
• Maintain 1.27mm target gap
• Avoid sharp cable bends

Technical FAQs

• What’s the thread engagement limit?
  Maximum 0.375″ (9.5mm) thread engagement.
• Can I use this in high-vibration areas?
  Yes, designed for continuous vibration environments.
• Is the cable replaceable?
  No, it’s permanently attached for reliability.
• What maintenance is required?
  Annual gap verification and visual inspection.
• How sensitive is this probe?
  ±2mV/V supply voltage sensitivity.

Package & Support

• 1 × 330171-00-08-05-02-CN vibration probe
• Installation guide
• 12-month quality guarantee
• Worldwide express shipping
