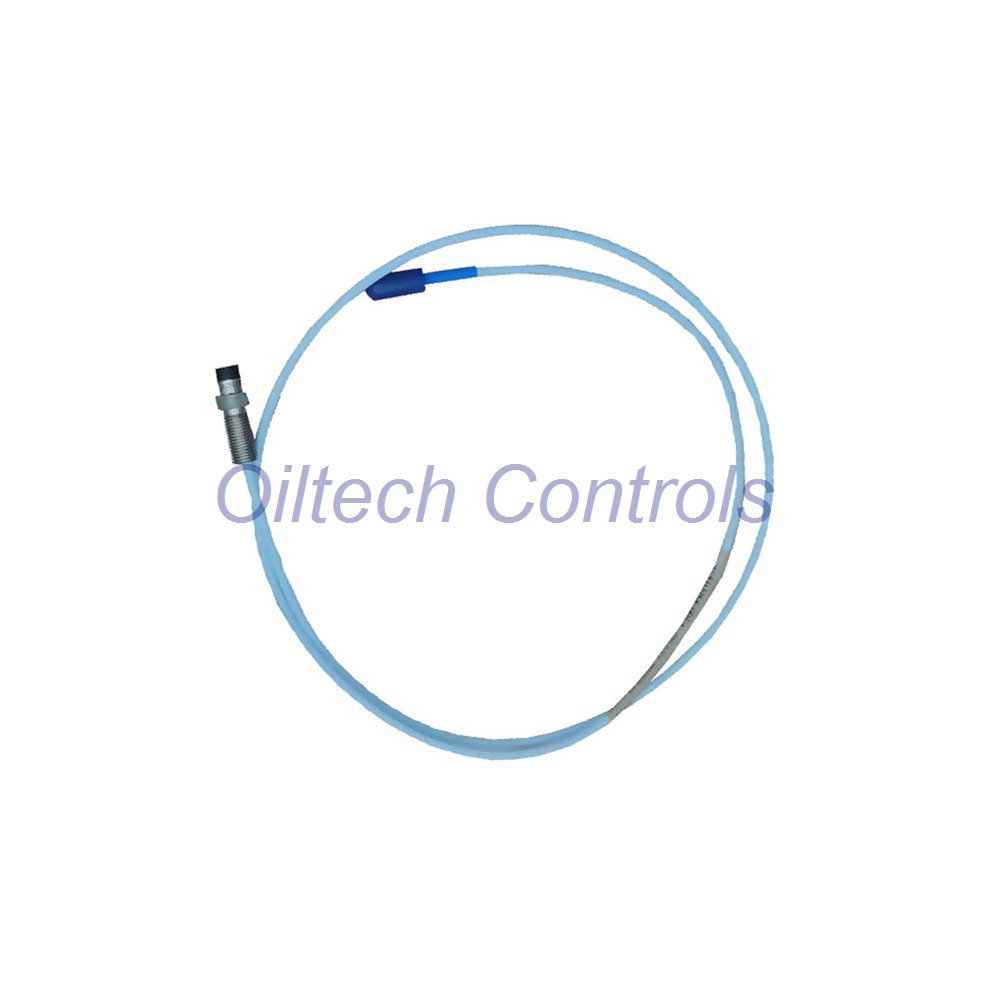

Bently Nevada 330171-00-08-10-02-00 3300 5mm Probe Sensor

Compact Design and Core Purpose

• Bently Nevada 330171-00-08-10-02-00 is a compact displacement probe.
• It belongs to the 3300 5mm Proximity Probes range.
• The short 0.8 inch case suits tight machine layouts.
• It measures shaft vibration and position with high stability.
• Designed for precision monitoring in small spaces.

Ordering Code Breakdown

• 330171 Configuration Path
  • 00
    • No unthreaded section
  • 08
    • 0.8 inch probe body
  • 10
    • 1.0 meter cable length
  • 02
    • Mini ClickLoc connector type
  • 00
    • Standard approval option

Electrical and Measurement Data

• Brand: Bently Nevada
• Model: 330171-00-08-10-02-00
• Measurement method: Eddy current sensing
• Reference gap: 1.27 mm setup distance
• Operating voltage: -17.5 to -26 Vdc
• Typical system voltage: -24 Vdc
• Maximum current: 12 mA
• Output resistance: 50 Ω
• Probe resistance: 7.59 ± 0.50 Ω
• Voltage sensitivity drift: <2 mV per volt
• Fast response for rotating equipment
• Stable signal over long cable runs
• Magnetic field tolerance up to 300 Gauss
• Operating temperature: -35°C to +177°C
• Cable impedance: 75 Ω triaxial design
• Minimum bend radius: 25.4 mm
• Case material: AISI 304 stainless steel
• Tip material: PPS polymer
• Tensile strength: 222 N retention force
• Weight: 0.323 kg

Mechanical Fit and Mounting

• Thread size is 1/4-28 UNF.
• Maximum thread engagement is 0.375 inch.
• Use #3 or larger drill for tapping.
• Recommended tightening torque is 5.1 N·m.
• Maximum safe torque is 7.3 N·m.
• Keep cable bends smooth during routing.

Performance Benefits in Operation

• Provides accurate early fault detection.
• Supports stable long term monitoring.
• Reduces unexpected machine downtime.
• Improves predictive maintenance accuracy.
• Handles vibration and temperature stress.

Included Items and Warranty

• 1 × original proximity probe
• Connector protection cap
• Industrial sealed packaging
• 12 month warranty coverage
• Express shipping via FedEx, UPS, or DHL

Technical FAQ and Selection Tips

• Is this probe suitable for compact turbines
• Yes. The short case fits narrow housings.
• How do I confirm cable routing safety
• Maintain the minimum bend radius during installation.
• What affects long term signal stability
• Proper grounding and clean connectors are critical.
• Should I stock spare probes onsite
• Yes. Critical machines need backup sensors.
• How do I match this probe to my system
• Check compatibility with your Bently Nevada monitor.
