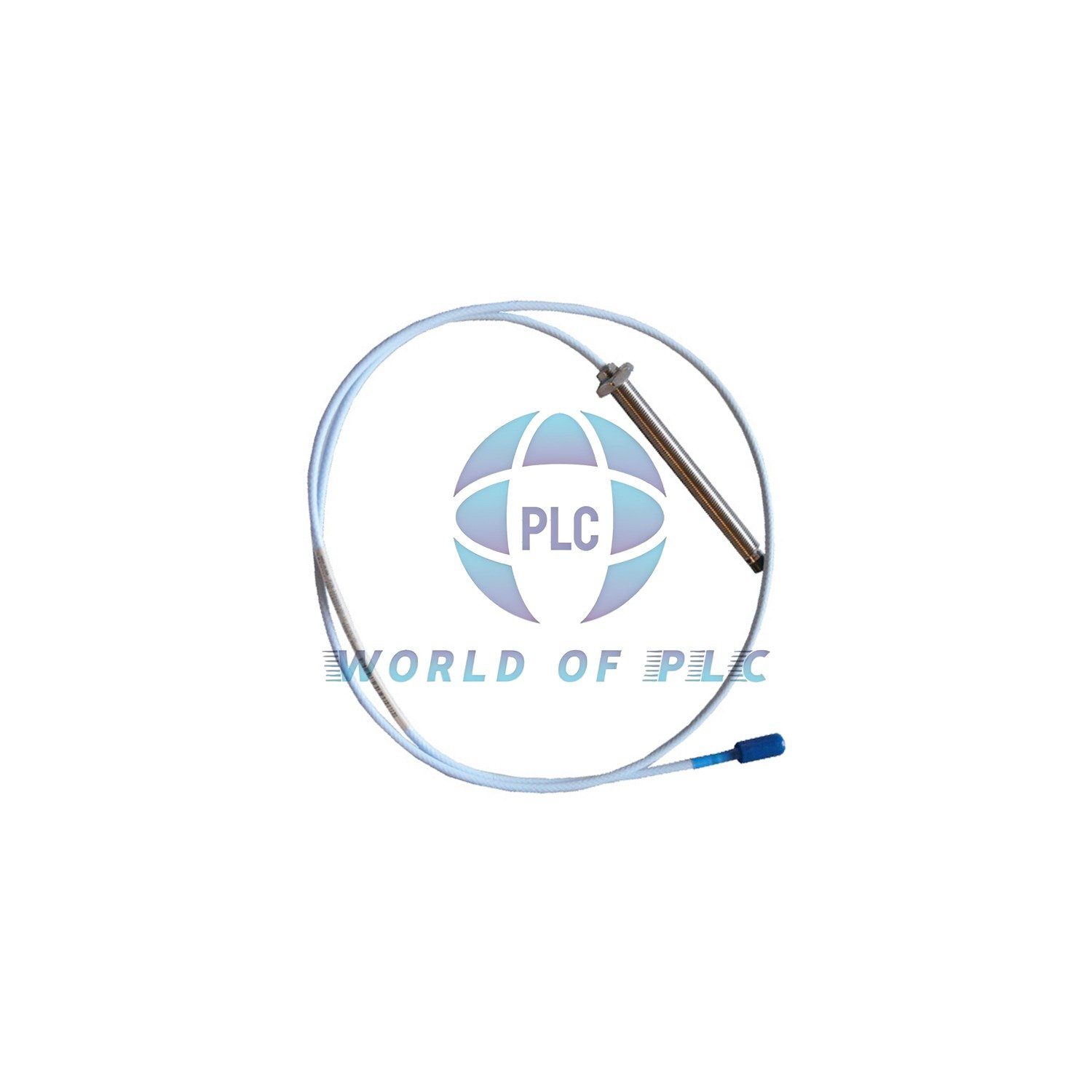

Bently Nevada 330171-00-20-05-02-CN-5mm Proximity Prob

Bently Nevada 330171-00-20-05-02-CN 5mm Proximity Probe

Quick Facts

5mm sensor with 1/4-28 UNF thread

Short 0.5m (1.6ft) cable version

Works from -35°C to +177°C (-31°F to +351°F)

Country-specific approval (CN)

Made in USA

Model Number Explained

The code 330171-00-20-05-02-CN tells you:

• 330171 = Base model
• 00 = 0″ unthreaded part
• 20 = 2″ case length
• 05 = 0.5m cable
• 02 = ClickLoc connector
• CN = Country approval

Technical Details

• Power: Needs -17.5V to -26V power
• Cable: 75Ω triaxial, FEP insulated
• Resistance: 7.45Ω ±0.50 (center to outer)
• Thread: 1/4-28 UNF (max 0.375″ deep)
• Weight: 0.323kg
• Torque: 5.1 N·m (45 in-lb) recommended
• Bend Radius: Keep >25.4mm (1″)

5 Common Questions

• Q: What’s the shortest cable available?
  A: This 0.5m version is the shortest option.
• Q: Can I use this in very hot areas?
  A: Yes, it works up to +177°C (+351°F).
• Q: What does “CN” mean in the model?
  A: It meets special rules for certain countries.
• Q: How strong is the cable connection?
  A: It can handle 222N (50lbs) of pull force.
• Q: What drill size for mounting?
  A: Use #3 or larger drill for 1/4-28 threads.

Support & Shipping

• 12-month product warranty
• Fast shipping via FedEx, UPS, or DHL
